AI World Gen: thousands of decisions, and a loop that graded them

A map generator that asks a model one question per tile. A new kind of model that answers in milliseconds for a fraction of a cent. And the evaluation loop that took it from a green blur to a village, one measured change at a time, most of them written by an agent.

Try AI World Gen →

Guillem Poy 20 September 2026 28 minute read

A 16 by 16 pixel-art village: a stone chapel with an orange door in the top left, a wooden cottage with a door in the middle, trees along the top, a dirt path across the bottom, a villager and two haystacks. — Version 11 drawing the "medieval village" preset on a 16 by 16 grid. Every tile was one question to a decision model. Code planned first where the chapel, the cottage and their doors go; the model then decided every tile, walls and doors included.

The short version, if you only have a minute:

Deciding one tile at a time (cell by cell) is the hardest way to get a good map. Version 1 drew maps where almost every cell was the same, and the judge (a model that grades each map) gave them 0.09 out of 1, the worst of the three methods in this post. Measured changes, one at a time, took it to villages (0.69).
The biggest step took work away from the model. In version 8, code draws the rooms first, and the model only fills them in. This shows how hard it is for a model to build a shape when it makes one decision after another, instead of seeing the whole map at once.
An LLM was good with no tuning at all. In the LLM method, a language model draws the whole map in one answer. It scored 0.68 with only what version 1 knew. At version 11, it trails cell by cell by 0.04 (0.65 against 0.69), a gap smaller than the noise between two runs (0.05). It is also up to 15 times faster, at the same price. Cell by cell keeps a clear lead where code controls each cell: the rules (0.99 against 0.76), routes to doors (0.82 against 0.61) and whether the map reads as a place (0.88 against 0.74). Batched, where Jev (the decision model) gets the questions for all the cells in one request, did worst: each cell is decided without knowing what its neighbours got, so the map contradicts itself (0.57).

Contents

↑ Contents

A model that decides instead of writes

AI World Gen started as a way to test Jev, a new kind of model made by TypeSafe. I wanted answers to three questions. How much of the context can it take into account? How much does it really cost? And can you tune its prompt, the way you tune the prompt of a large language model (LLM)?

The idea is simple: describe a place, and watch an AI build its map one tile at a time. The hard question was never “can a model draw a map?”. It was “can it draw a map that is useful and logical?”.

Asking a typical chat model (an LLM) for every tile is slow and expensive, and you get a sentence back when you only want one word. Jev works differently. You send it a state (a JSON object that describes the situation) and a typed question: “pick one of these options”. It answers with a probability for each option, and it writes no text at all. It is built for speed: TypeSafe quotes tens of milliseconds for the model itself. It also costs about $0.04 per million input tokens (a token is a piece of a word, about four letters), roughly fifty times less than the chat models that I would otherwise use. The real bill has its own section below.

One tile, one request. Code sends Jev the state and one question, about two thousand tokens in all. Jev answers with a probability for each option. The generator then picks the tile at random, weighted by those probabilities, but it drops every option below a third of the best one. So here the tile is usually path and sometimes grass, while fence and oak are never picked.

The generator splits the work in two. First, one call to a language model invents the vocabulary: the six to twenty-four kinds of tile that this place is made of, and the rules for each one. Then Jev decides each tile, with the vocabulary as the options and the map so far as the state.

The whole generator. The language model is called once, at the start, and writes the vocabulary. Jev is then called once for every cell: 64 times for an 8 by 8 map, and 256 times for a 16 by 16 map.

After that, the generator decides what goes in each cell, one cell at a time, and so builds the entire map. It selects an empty cell, reads the full map state (the contents of all the cells filled so far), and asks Jev: “What is the most probable content for this empty cell?” The model decides, the cell is filled, and the generator moves on to the next empty cell. I call this way of drawing a map cell by cell.

The village of one real test case, drawn again in the order that the generator asked about its cells: from the middle outwards. The orange outline marks the cell that Jev is deciding. A cell never changes after it is filled.

What it costs, and how that grows

The bill for the whole project comes from the usage page of OpenRouter, the service that sells access to Jev and to the other models. It is $5.72 in total. Jev cost $3.85: $3.11 for the 39.2 thousand decisions of cell by cell, $0.51 for the five batched runs in this post, and $0.23 for a repeat run and tests. Claude Sonnet 5 cost $1.84: $1.24 for the five LLM runs, $0.33 for the 7 calls that wrote vocabularies, and $0.27 for tests. The last $0.03 was two calls to a third model, DeepSeek V4 Pro. So one cell by cell decision costs eight thousandths of a cent, and one vocabulary costs $0.047.

Two other questions matter more than the total: what does one map cost, and how does that cost change when the map gets bigger? This post draws a map in three ways, and their costs grow differently.

Cell by cell: Jev, one request per cell. Each question sends the state again, and the state includes the whole map. So a bigger map means more questions, and each question is longer.
Batched: Jev, all the cells in one request. The state that all cells share (the instruction, the world, the map and its balance sheet) is sent once per request, and each cell adds only its own part. But one request holds at most about 65,000 tokens. So a bigger map needs more requests, and each request sends the shared state again.

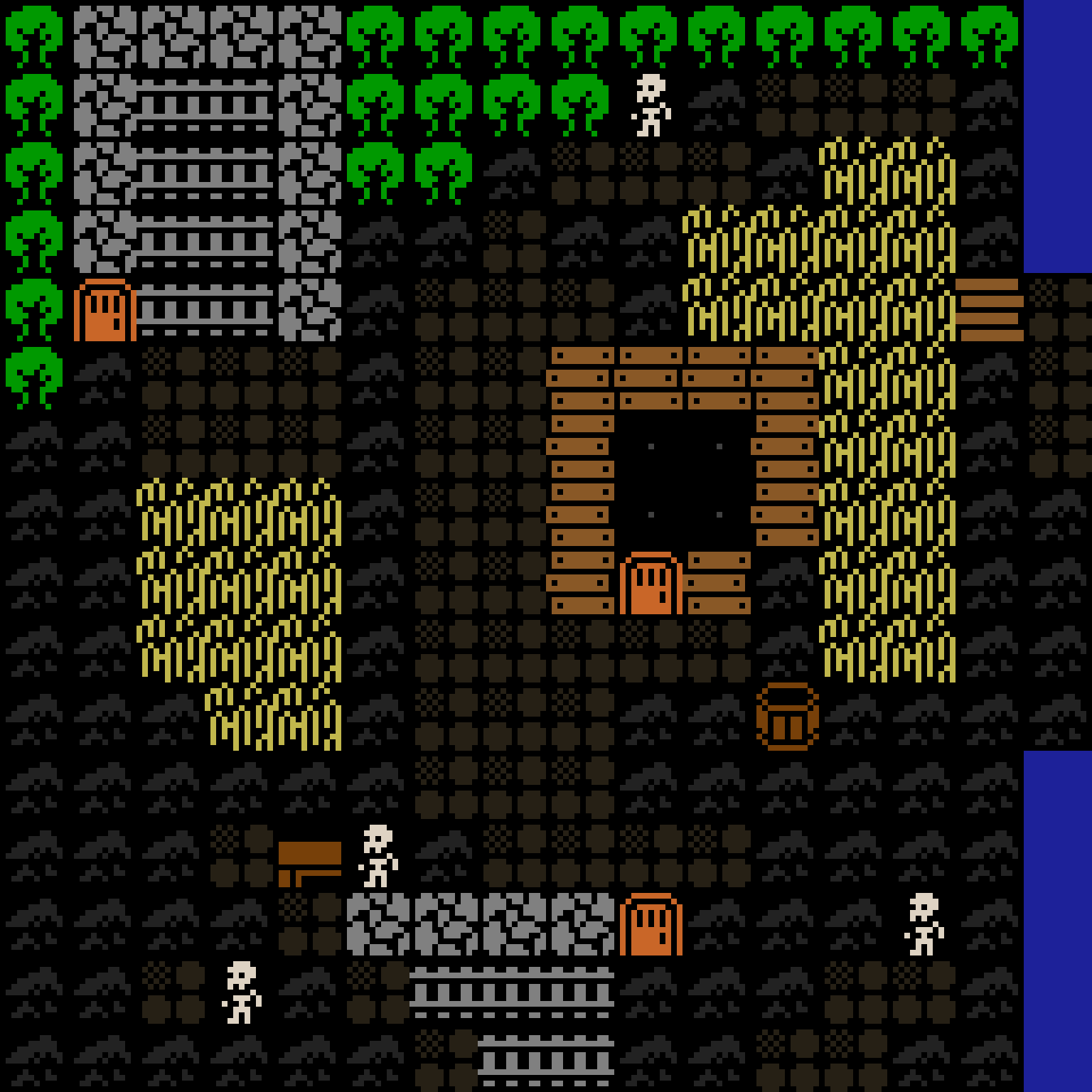

LLM: a language model draws the whole map in one answer. The prompt is sent once, and the model answers with about one letter per cell. So a bigger map only means a longer answer.

Only the 8 × 8 and 16 × 16 maps were drawn for real, and there the prices are close to the runs. For the larger sizes, I built every request that each way would send, with the real code and without calling a model, and priced its tokens. For Jev, the tokens per character come from real requests in the OpenRouter logs. LLM is priced for one attempt; in the real runs, retries added 20% to 50%.

Cell by cell and LLM cost about the same at 8 by 8. Above that size, LLM is cheaper, and the difference grows with the map: LLM is 8 times cheaper at 32 × 32, and 16 times cheaper at 64 × 64.

Batched costs three to five times less than cell by cell at every size, because it sends the shared state once per request instead of once per cell. Up to about 16 by 16, it is the cheapest of the three ways. Above that, it grows faster than LLM. Each cell’s question still carries its own list of options with their rules, about 600 to 750 tokens per cell, while LLM writes about one token per cell. So at 64 × 64, a batched map costs $0.13 (in 59 requests), against $0.042 for LLM.

Jev is fifty times cheaper per token, but cell by cell sends the map again with every question, so it spends most of that saving on repetition. Still, Jev's price is what makes cell by cell possible at all. The same cell by cell method with Claude Sonnet 5 instead of Jev would cost $1.22 for one 16 × 16 map.

A new description also pays $0.047 once, at the start, for its vocabulary, whichever way draws the map. For a small map, that is more than the drawing itself costs. A preset ships its vocabulary and pays nothing, and every test case in this post uses a preset.

One map, drawn three ways. The vocabulary is left out: a new description pays it once, whichever way draws the map.
Map	Cells	Cell by cell	Batched	LLM
8 × 8	64	$0.0054	$0.0016	$0.0051
16 × 16	256	$0.023	$0.0074	$0.0069
32 × 32	1,024	$0.11	$0.031	$0.014
64 × 64	4,096	$0.68	$0.13	$0.042

Version one was a green blur

The first version came from an afternoon of vibe coding (fast building with an AI assistant, with little planning). You describe a place, press the button, and watch the tiles appear one by one. It worked, in the sense that every call got an answer and a map came out at the end. Then I looked at the map.

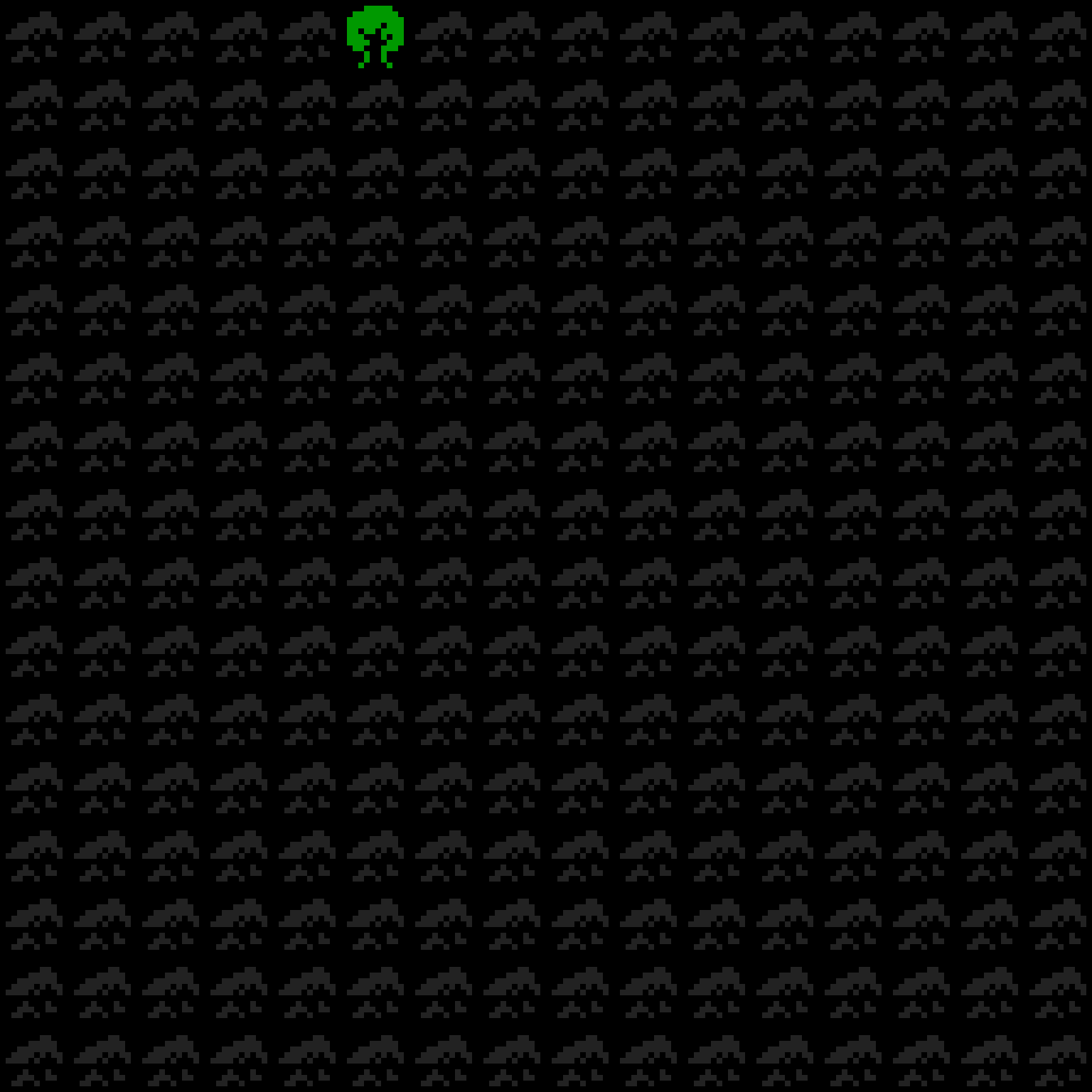

A 16 by 16 grid entirely of dark grass tiles, with one green tree near the top. — v1, the same village seed. One tree, 255 grass.

The same seed drawn by version 11: two cottages with doors, trees, a path, haystacks and a villager. — v11, the same seed, after the changes that this post describes.

The map was useless. In the first test set, thirteen of the fifteen maps used one tile type for more than 85% of the cells: a village that was all grass, a station that was all corridor.

The cause is simple. The model decides a cell mostly from its neighbours. If the neighbours are grass, it picks grass. Each decision is reasonable on its own, but together they make a map with nothing in it.

I could have looked at three maps, changed the prompt, and looked at three more. I have done that before, and it usually ends the same way: the change that fixes the village breaks the station. So before I changed the generator, I built a way to measure it. Then I built a loop around that measurement: change the code, measure every map, compare with the last version, and change again. Every version is scored on the same maps, so an improvement cannot quietly undo an older one.

Measuring instead of looking

The measurement lives in Galtea, an evaluation platform for AI products. I work there, so read this as a demonstration as much as a recommendation. In Galtea, AI World Gen is a product, and everything below belongs to it:

A specification is one sentence about what a good map does, such as “Every walkable area is reachable, and the map is playable.” This project has seven.
A metric measures one part of a specification as a number from 0 to 1. Each specification has several metrics, and in this post its score is the mean of them. There are two kinds. Twenty-eight metrics are plain code in this project: “doors sit in walls” is a loop over the door tiles, and “one walkable region” is a flood fill. The code computes them and sends the scores to Galtea. The last metric is the judge. It scores what code cannot check: does this look like a village? Galtea runs it with another model, GPT-5.2, which reads each finished map as text (one letter per cell, with a legend) and gives it a score from 0 to 1. The post always shows the judge on its own, outside the mean.
A test case is one fixed input: a preset (the described place), a grid size, a fill order (the order in which the generator visits the cells) and a random seed. In this post, I also call a test case a seed. Galtea groups test cases into datasets: here, one dataset of five test cases for each specification, plus one dataset of three 16 by 16 maps. The same 38 test cases run against every version, so two versions are always compared on the same maps.
A version is one change to the generator. When a version runs on all the test cases, each map is saved as a session: the test case goes in, and the finished map comes out. Each score in a session is an evaluation: one metric applied to that one map.

Eleven versions times thirty-eight test cases is 418 maps. Each map is scored by 28 metrics and the judge. The numbers in this picture are version 11's.

I added specifications as new failures appeared. At the start there were three: barriers form structures, paths form routes, and every walkable cell is reachable. After version 4, the maps were no longer random, but they were wrong in a new way, so I added a fourth: a place reads as a place. After version 7, I added three more: the vocabulary's own rules hold, routes lead to doors and off the map, and each landmark appears once, without filling the map.

One turn of this loop is one version. The agent, Claude Code, runs the steps. I chose which theory to test first, read the pull requests, added a specification when I saw a failure that the numbers missed, and decided when the loop could stop.

How the generator evolved

Each chart below is one specification. Each point is the mean score of one version over the same 38 seeds. The exact numbers are in the folded table under the charts.

The solid orange line is cell by cell, and it is the main story. The two dashed lines are the two other ways to fill the map, which I tried after the last version. LLM (green squares): a language model draws the whole map in one answer. Batched (blue diamonds): Jev gets the questions for all the cells in one request. I ran both with the code of five versions (v1, v4, v7, v8 and v11). So each dashed point shows what that method did with what cell by cell knew at that version. Their own sections come later. Hover a version to read its values.

The numbers behind the charts

Mean score per specification over the same 38 test cases, for every run. A dash is a version with no typed rules to check.
Run	Structures	Paths	Reachable	Reads as a place	Rules hold	Routes to doors	Landmarks	Judge (GPT-5.2)
v1, cell by cell	0.18	0.74	0.69	0.48	–	1.00	0.07	0.09
v2, cell by cell	0.39	0.53	0.75	0.43	–	0.77	0.61	0.24
v3, cell by cell	0.68	0.66	0.82	0.50	–	0.62	0.79	0.45
v4, cell by cell	0.82	0.80	0.77	0.50	–	0.66	0.66	0.48
v5, cell by cell	0.93	0.82	0.81	0.53	–	0.70	0.76	0.54
v6, cell by cell	0.95	0.81	0.81	0.51	–	0.60	0.68	0.48
v7, cell by cell	0.95	0.80	0.82	0.52	0.99	0.61	0.78	0.48
v8, cell by cell	0.99	0.75	0.84	0.89	0.99	0.78	0.77	0.65
v9, cell by cell	0.98	0.80	0.87	0.87	0.98	0.87	0.84	0.69
v10, cell by cell	0.98	0.78	0.87	0.88	0.99	0.86	0.83	0.71
v11, cell by cell	0.98	0.77	0.88	0.88	0.99	0.82	0.83	0.69
v1-llm, LLM	0.92	0.75	0.87	0.65	–	0.54	0.91	0.68
v4-llm, LLM	0.91	0.79	0.89	0.66	–	0.51	0.93	0.68
v7-llm, LLM	0.92	0.76	0.90	0.62	0.80	0.65	0.90	0.68
v8-llm, LLM	0.94	0.76	0.82	0.78	0.76	0.65	0.84	0.65
v11-llm, LLM	0.94	0.75	0.85	0.74	0.76	0.61	0.90	0.65
v1-batch, batched	0.58	0.61	0.79	0.45	–	1.00	0.21	0.20
v4-batch, batched	0.78	0.55	0.79	0.38	–	0.79	0.70	0.32
v7-batch, batched	0.64	0.57	0.80	0.39	0.94	0.64	0.47	0.25
v8-batch, batched	0.98	0.66	0.85	0.87	0.99	0.82	0.71	0.57
v11-batch, batched	0.97	0.47	0.87	0.91	0.83	0.78	0.66	0.57

The judge never sees the metrics, but it agrees with them. Its score goes from 0.09 at version 1 to 0.69 at version 11. It rises most at the same versions where the metrics rise most: versions 2 and 3 (0.09 to 0.45), and version 8, when code started to draw the rooms (0.48 to 0.65).

The table below shows one version per row: what changed, and the maps it drew. It shows one test case at a time; use the buttons to move to the next one. Under each version where LLM and batched ran, a folded note describes those runs. LLM and batched, at every stage has their numbers.

‹ previous

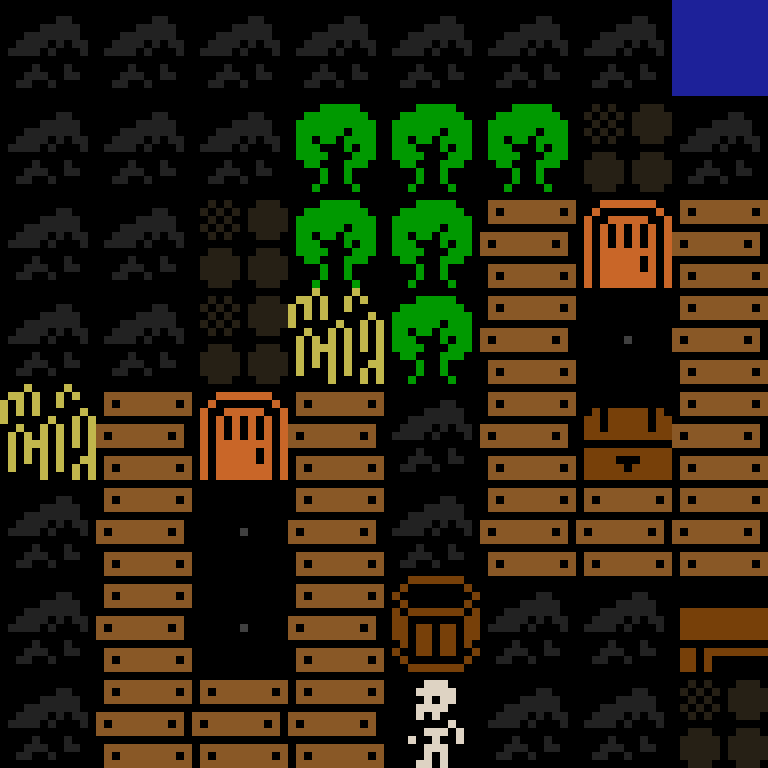

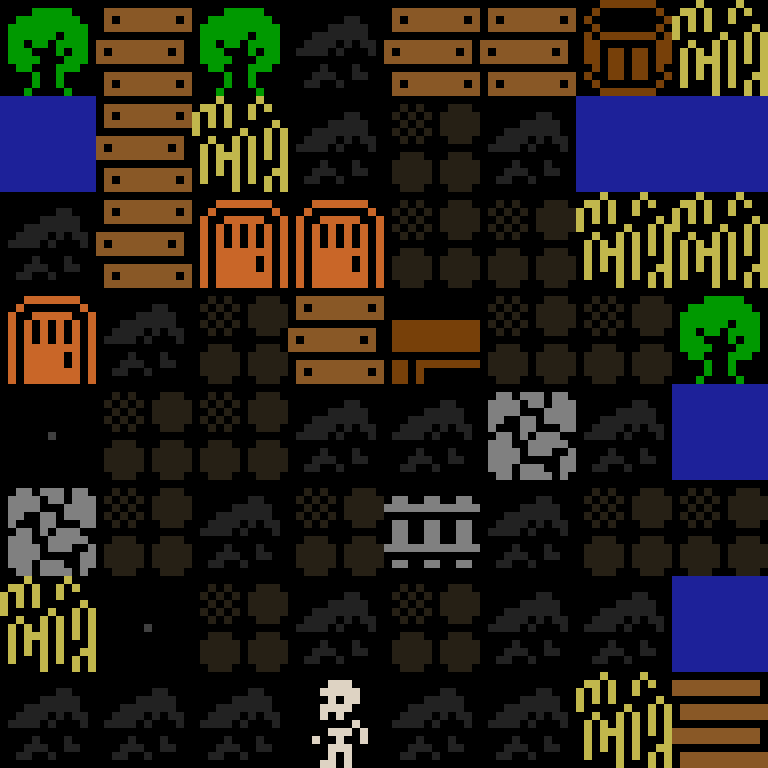

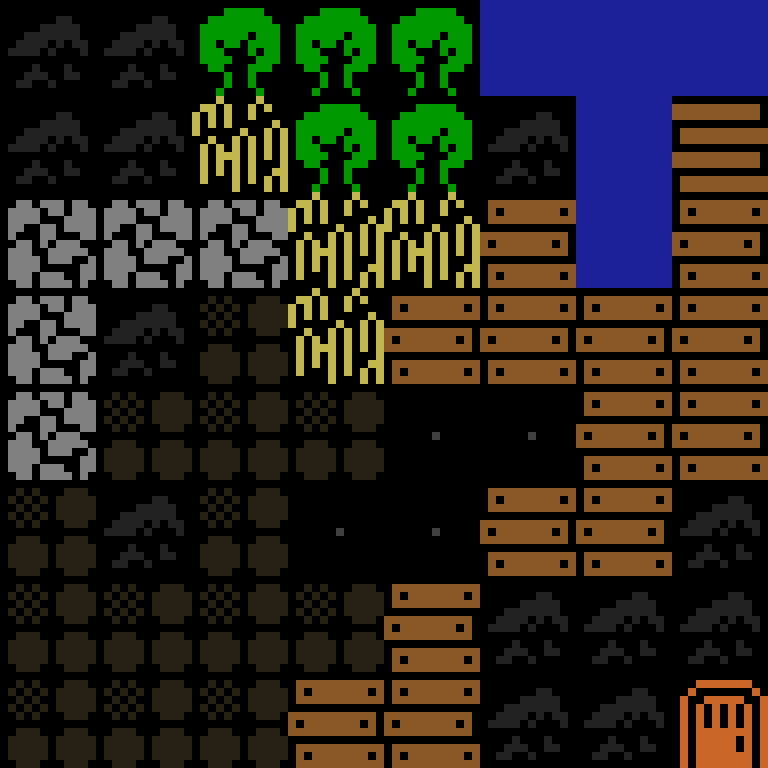

rules-village-clusteredmedieval village, clustered order, 8 by 8 cells · 1 of 38

next ›

‹ previous

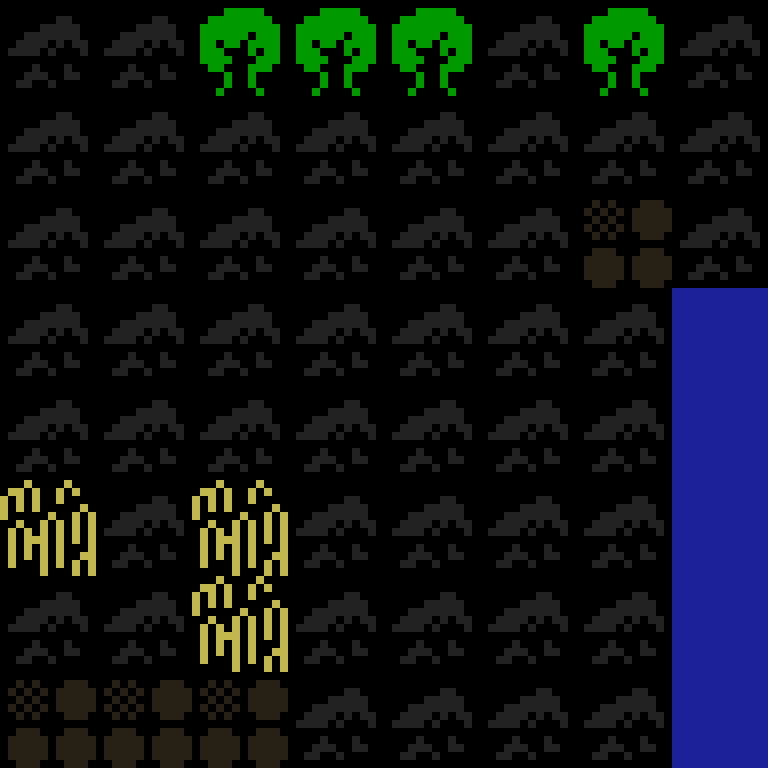

paths-village-frontiermedieval village, frontier order, 8 by 8 cells · 2 of 38

next ›

‹ previous

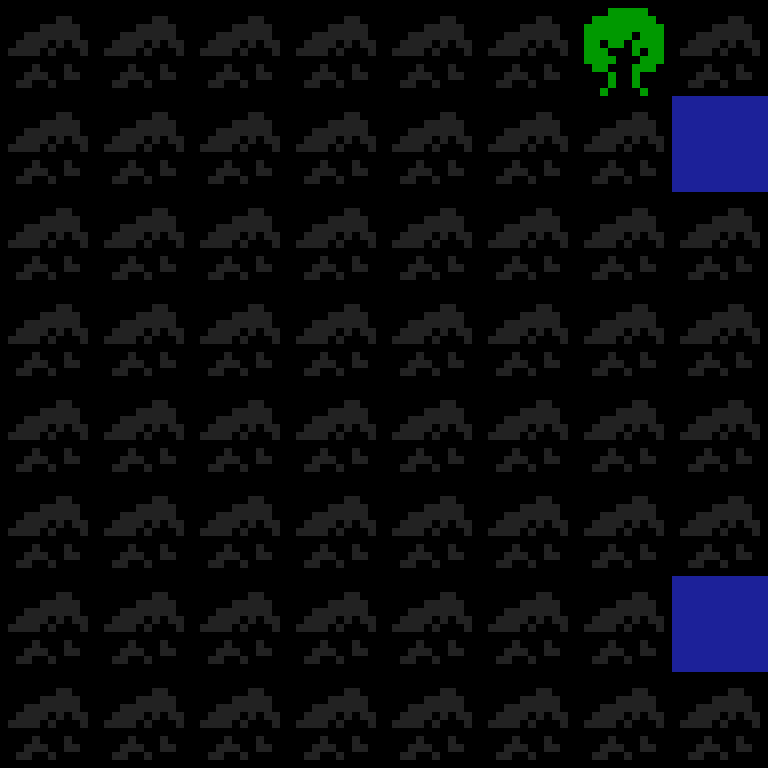

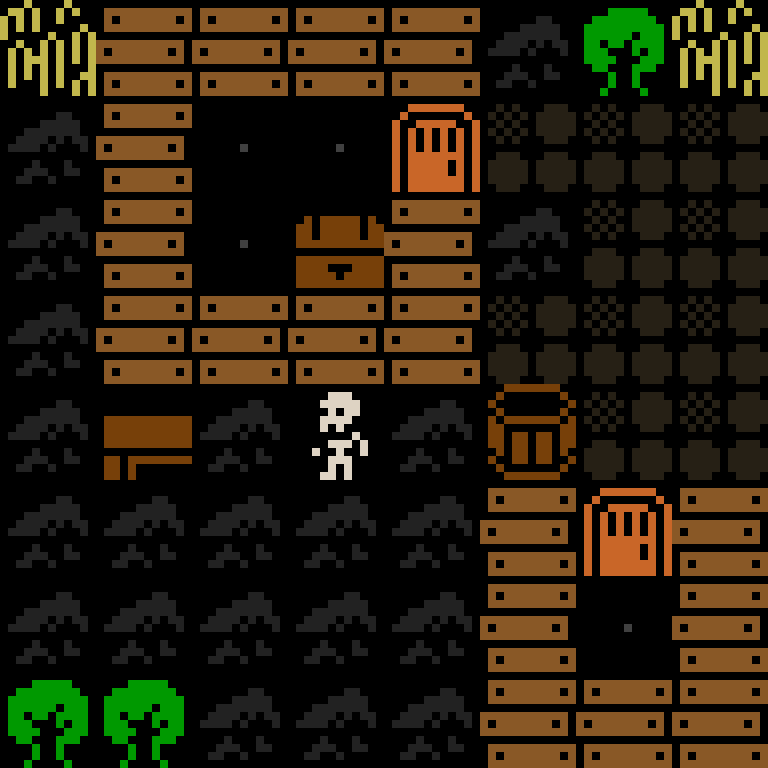

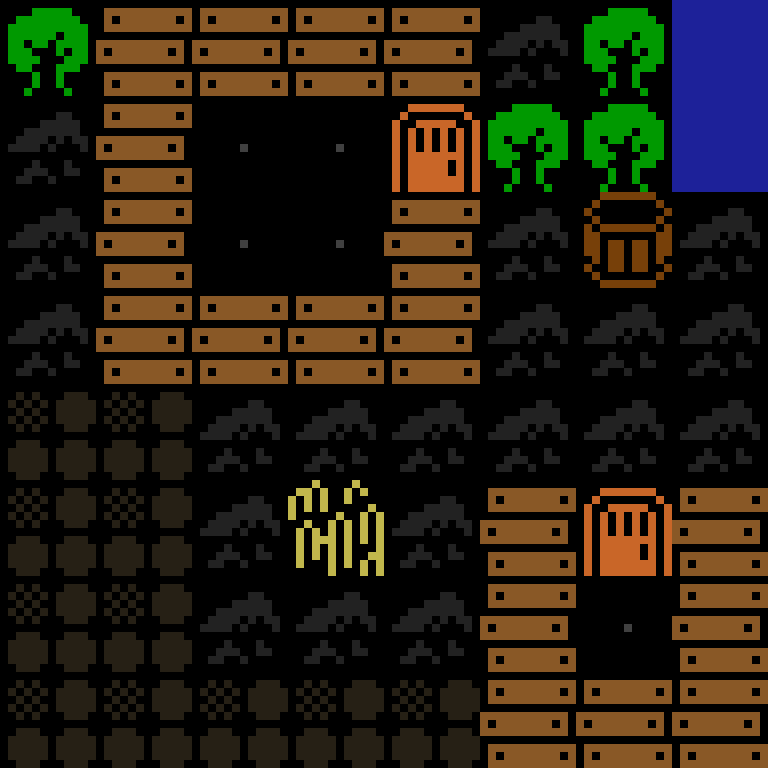

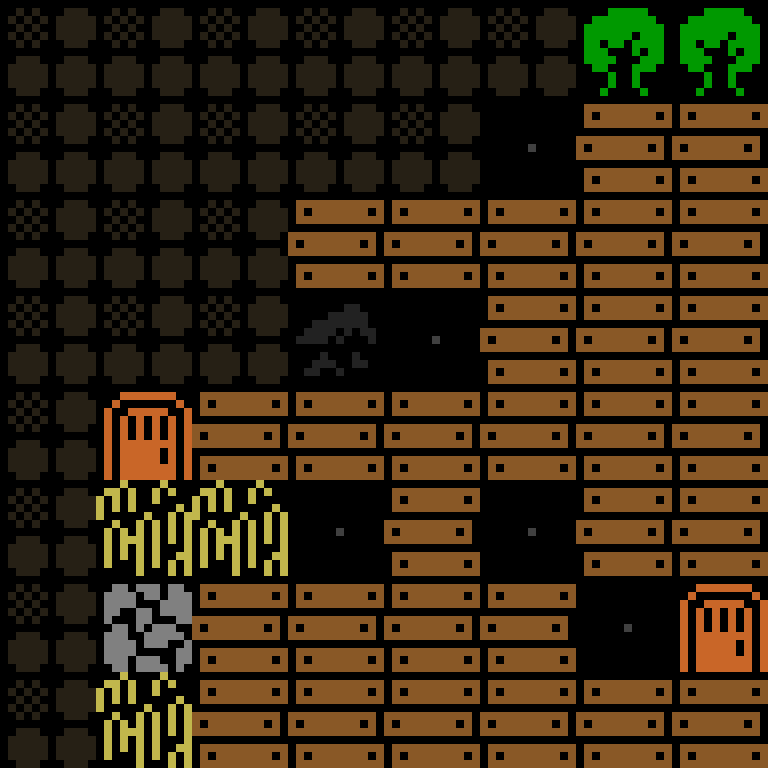

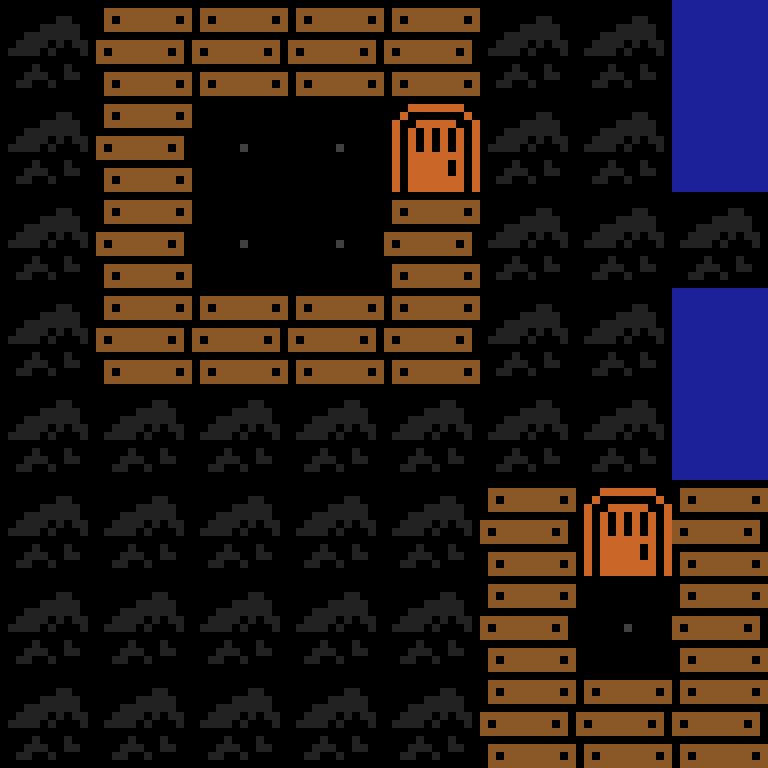

story-village-frontiermedieval village, frontier order, 8 by 8 cells · 3 of 38

next ›

‹ previous

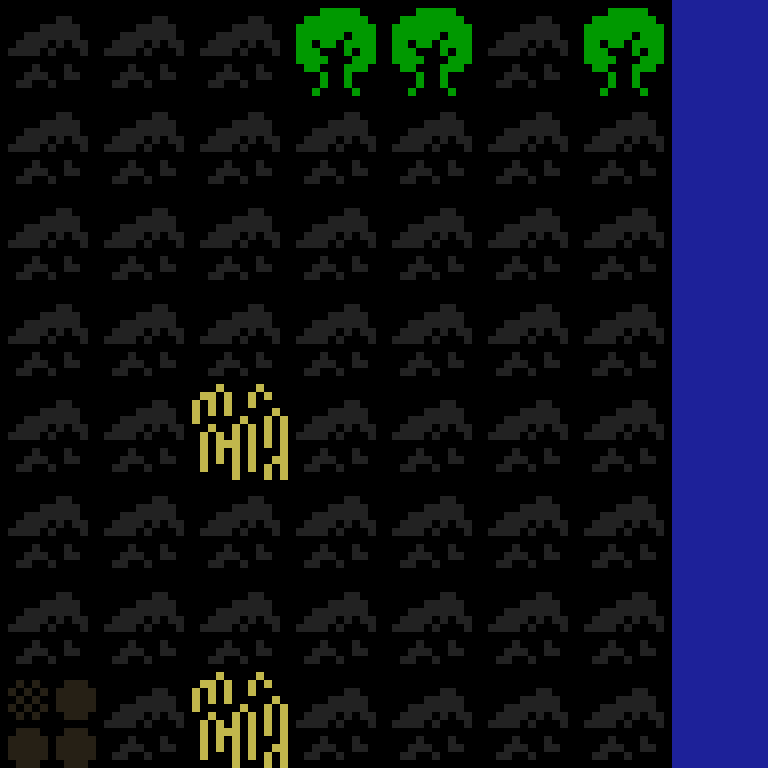

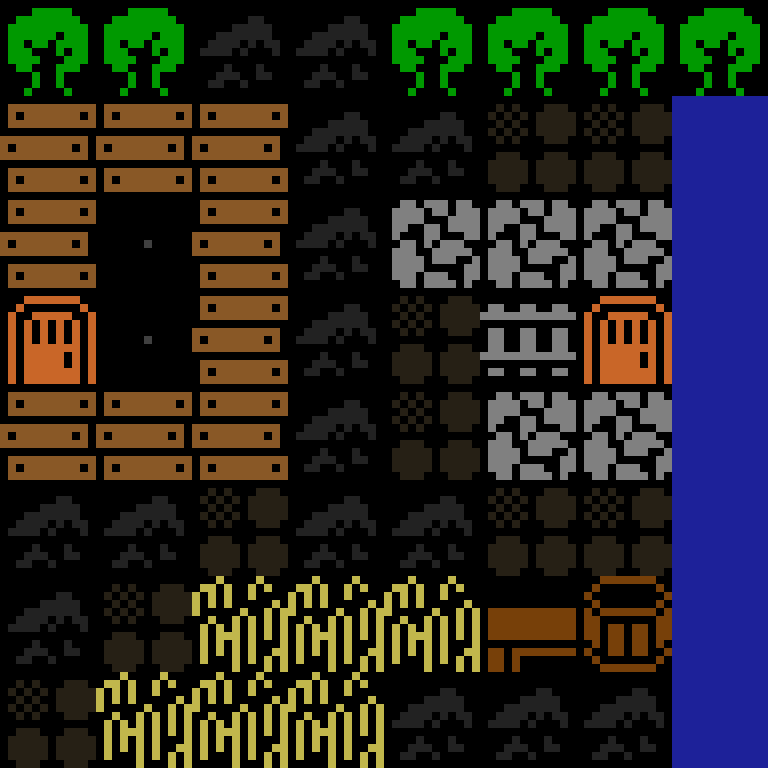

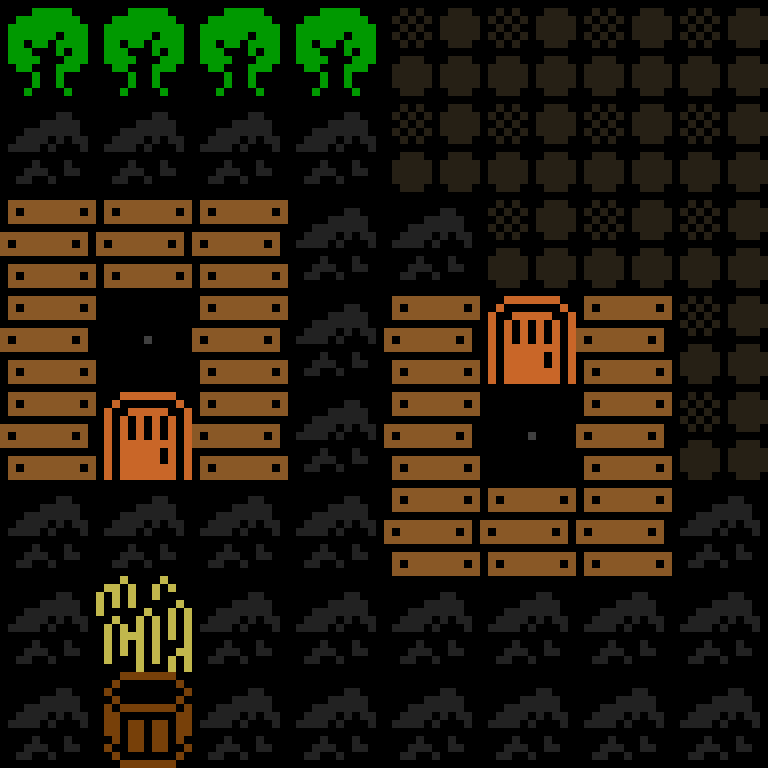

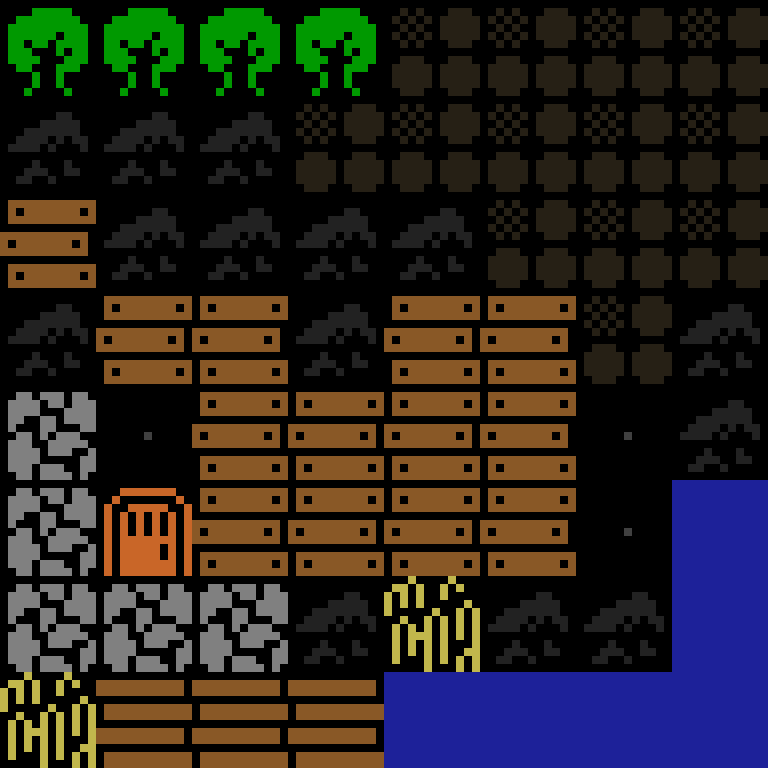

routes-village-spiralmedieval village, spiral order, 8 by 8 cells · 4 of 38

next ›

‹ previous

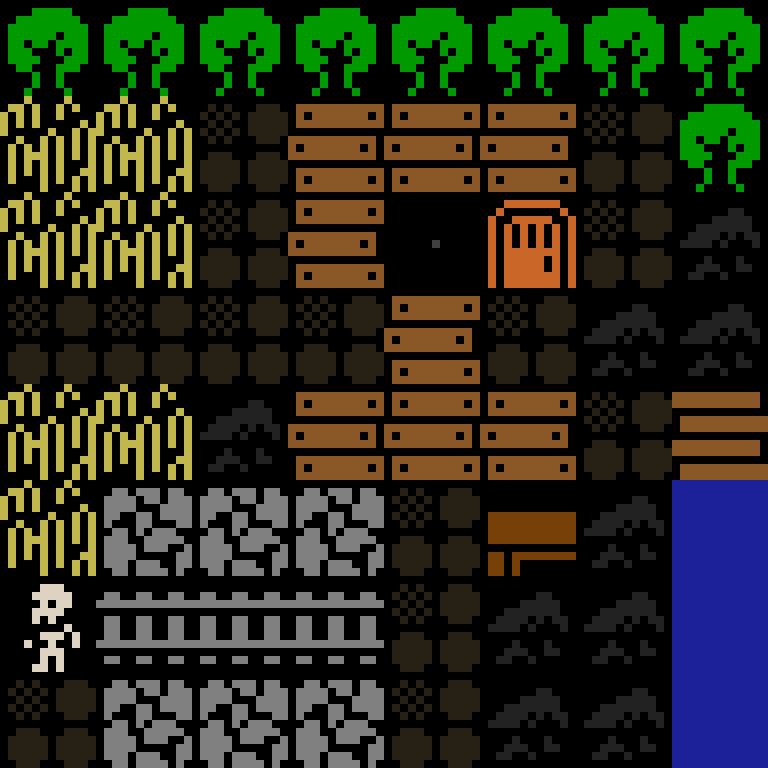

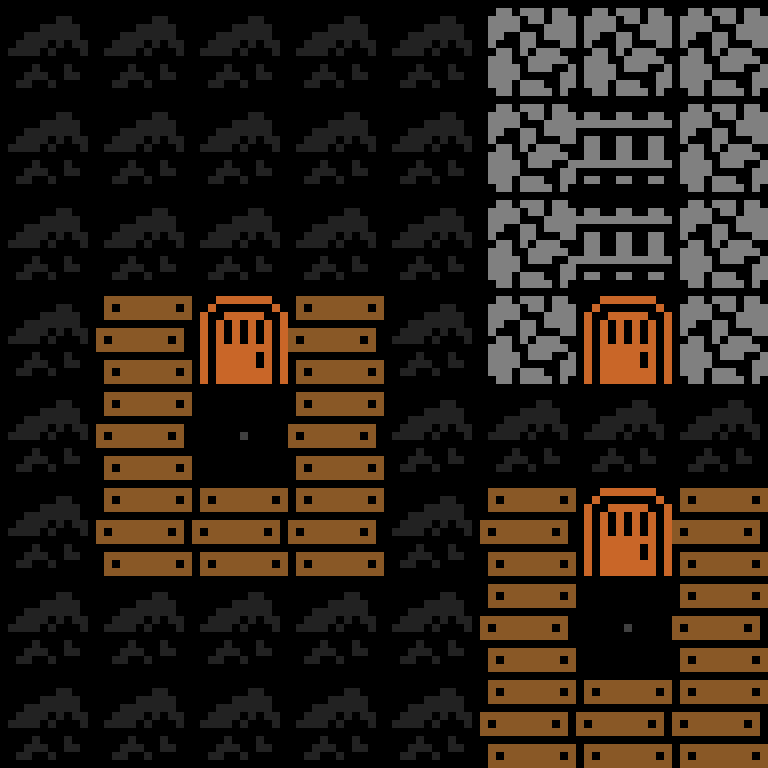

structures-village-spiralmedieval village, spiral order, 8 by 8 cells · 5 of 38

next ›

‹ previous

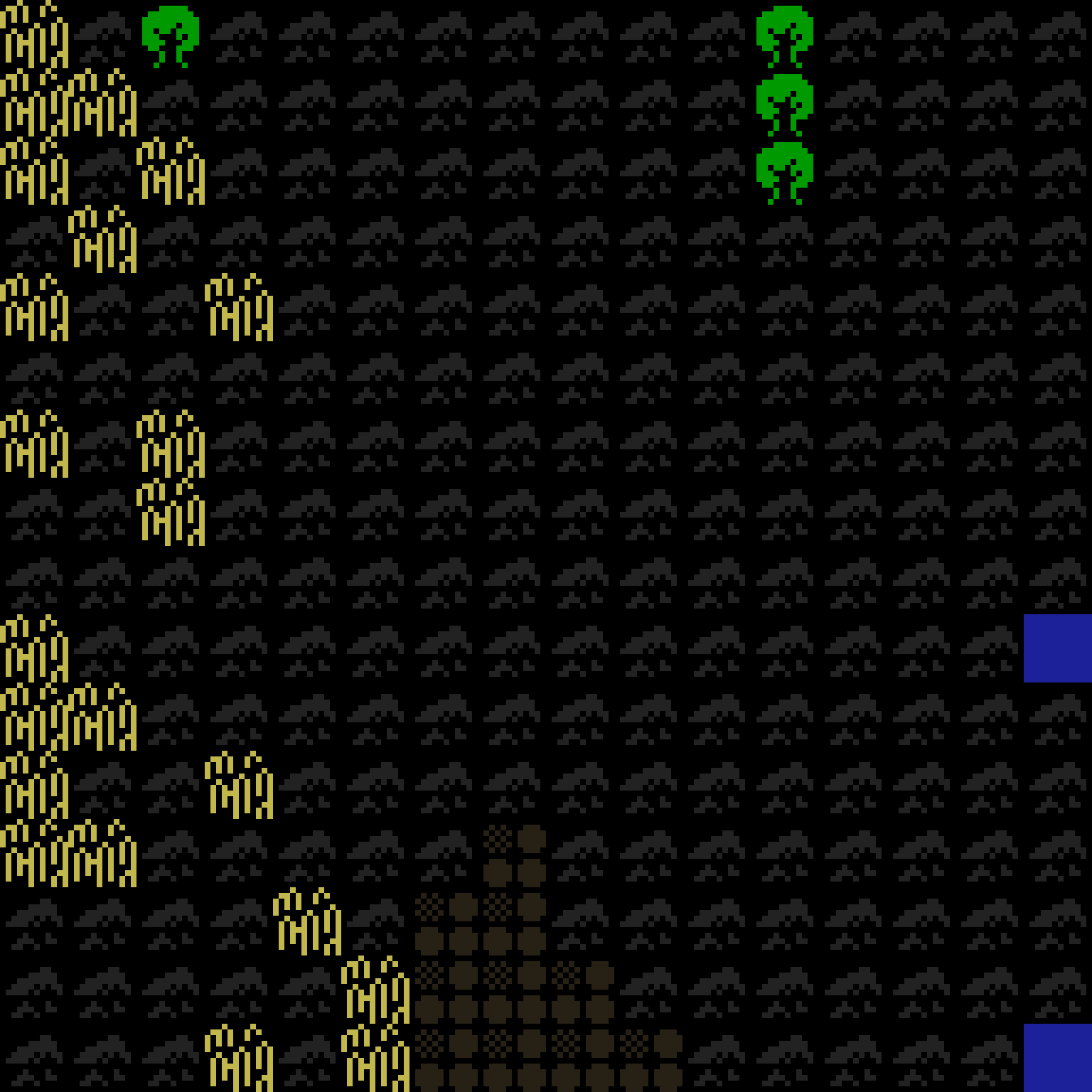

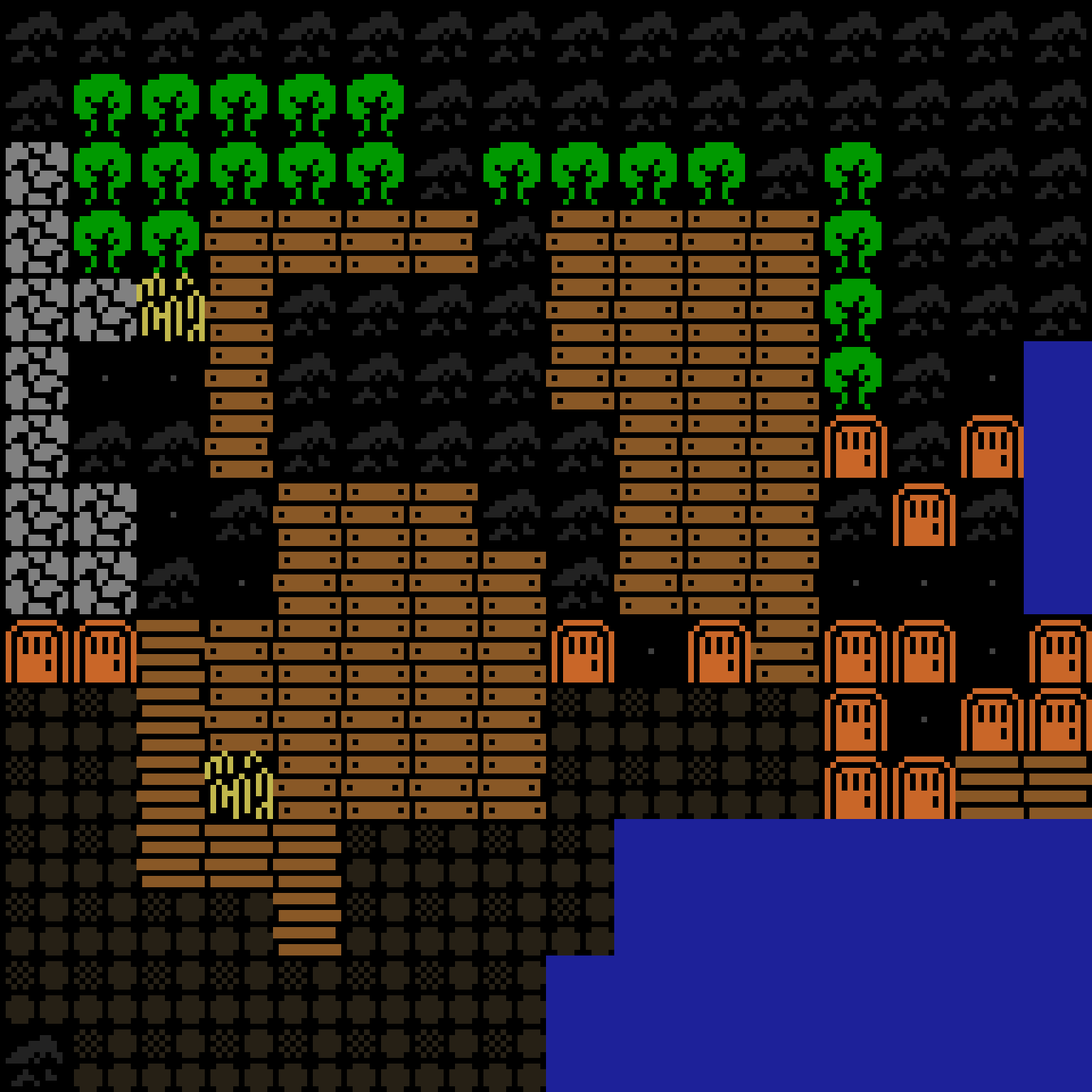

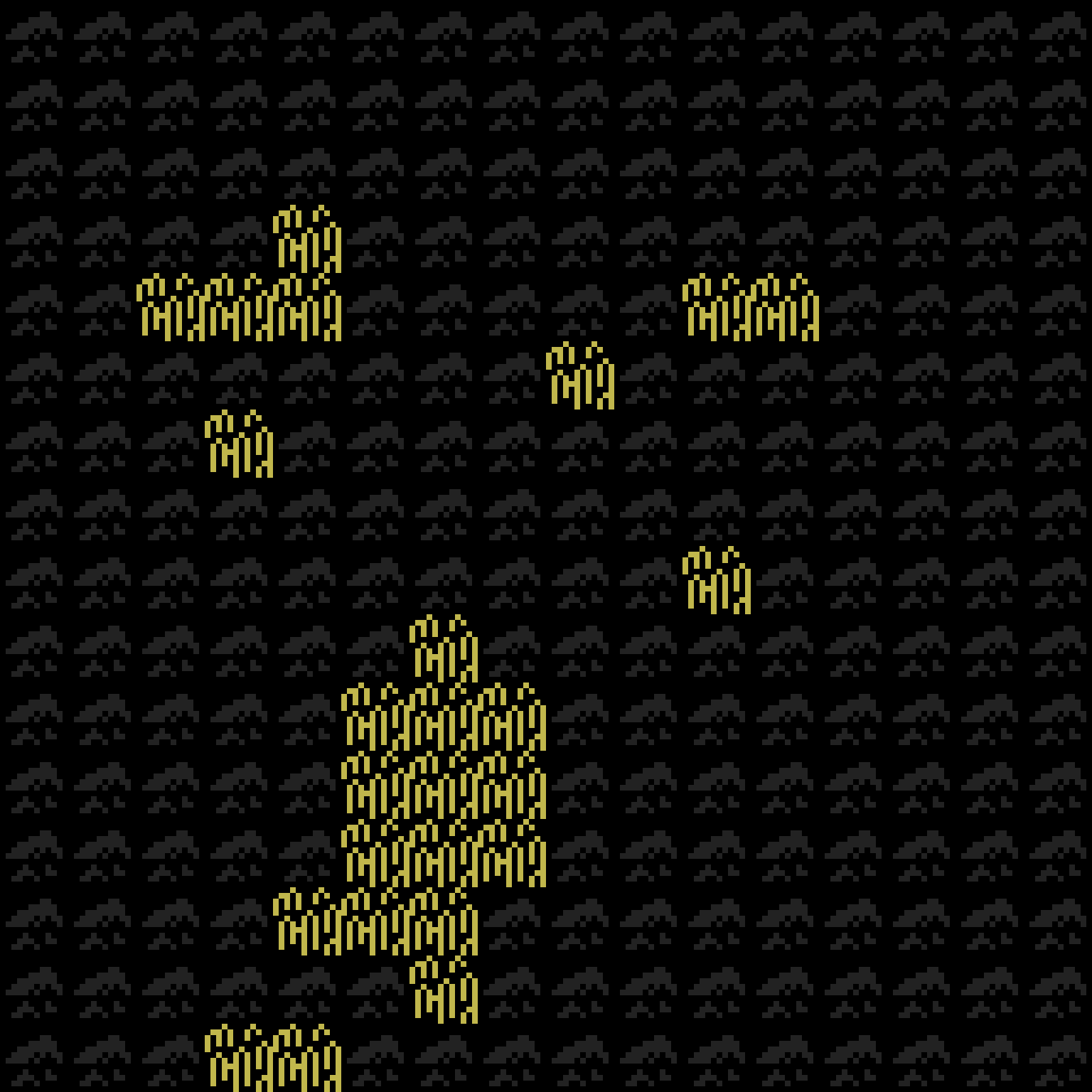

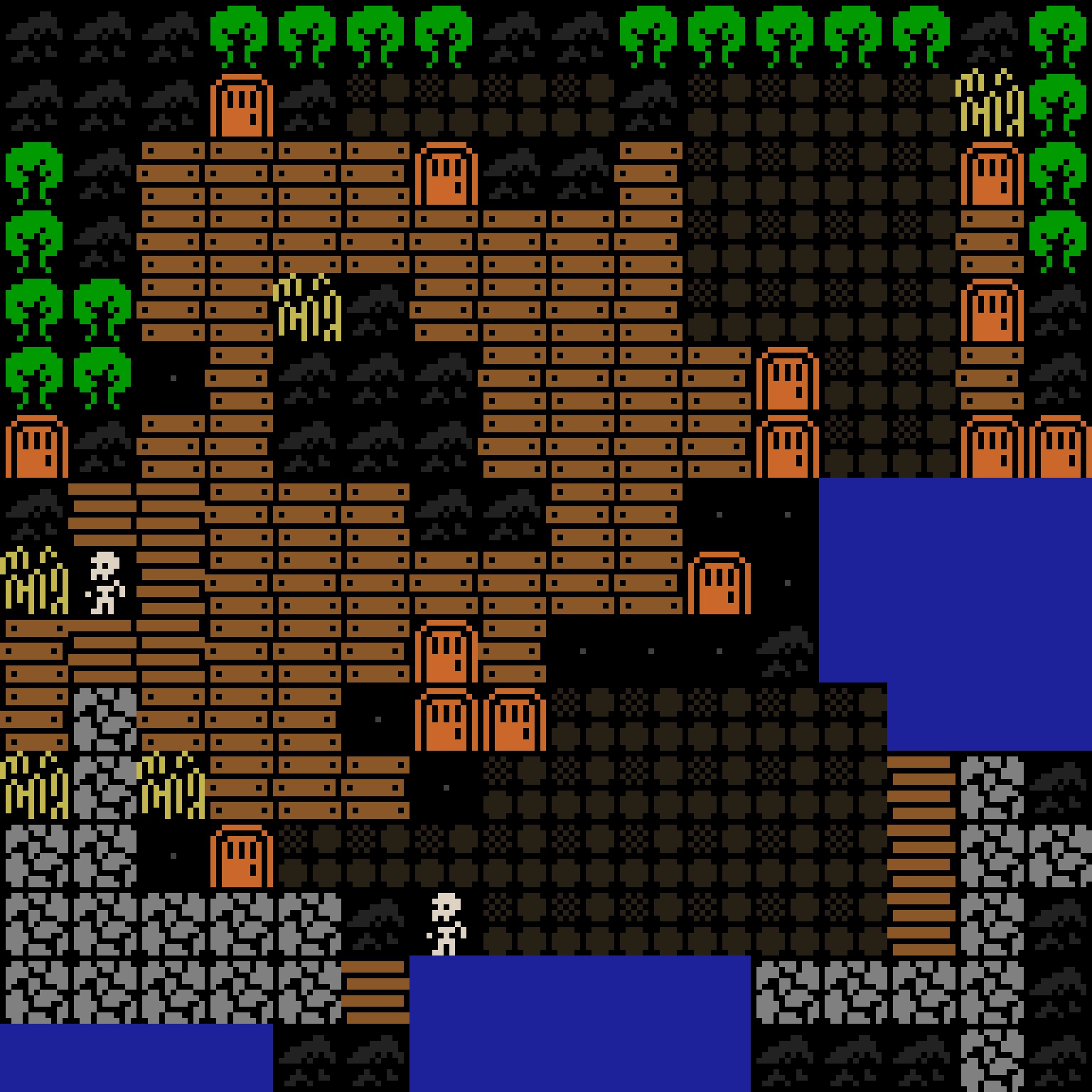

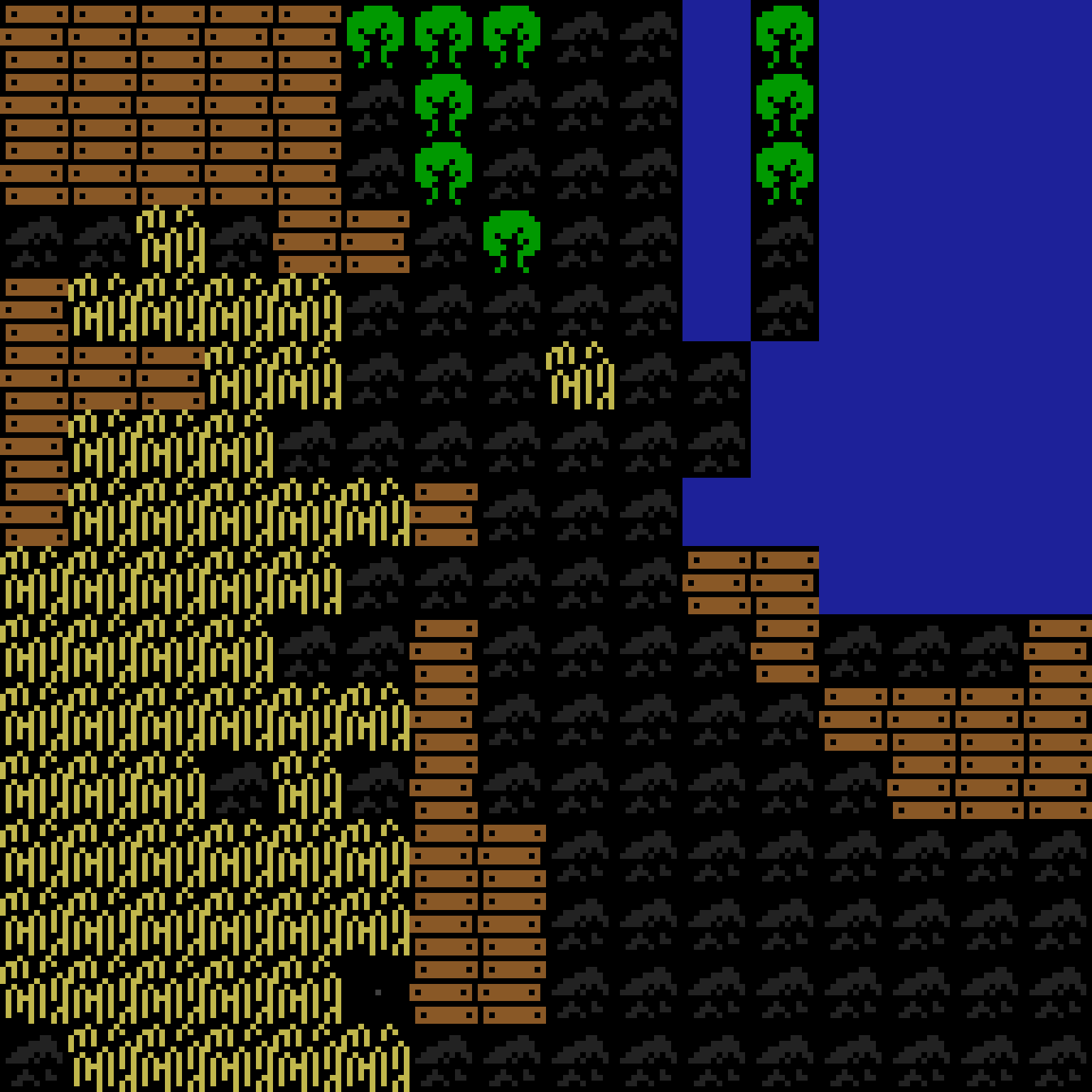

large-village-spiralmedieval village, spiral order, 16 by 16 cells · 6 of 38

next ›

‹ previous

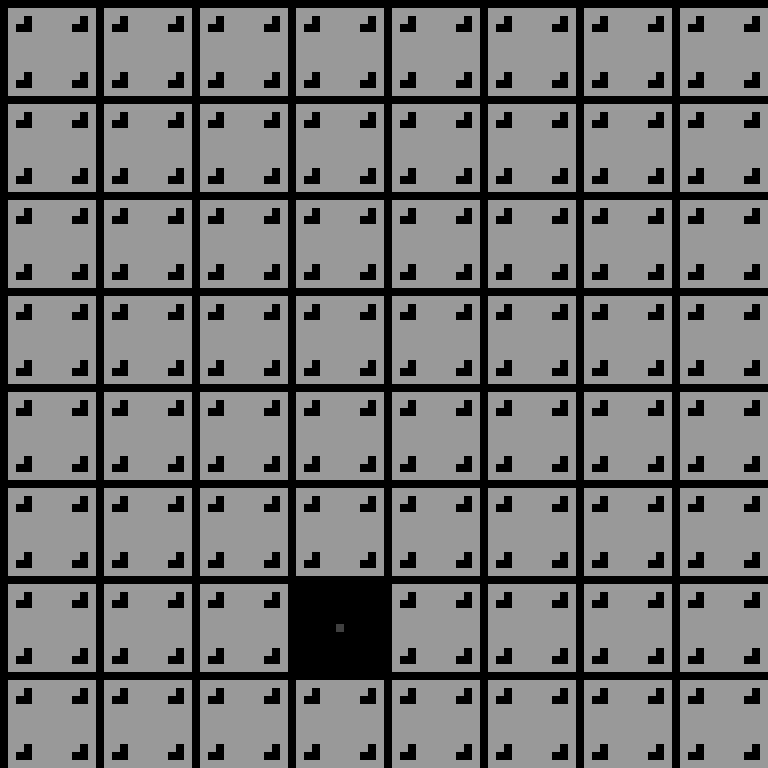

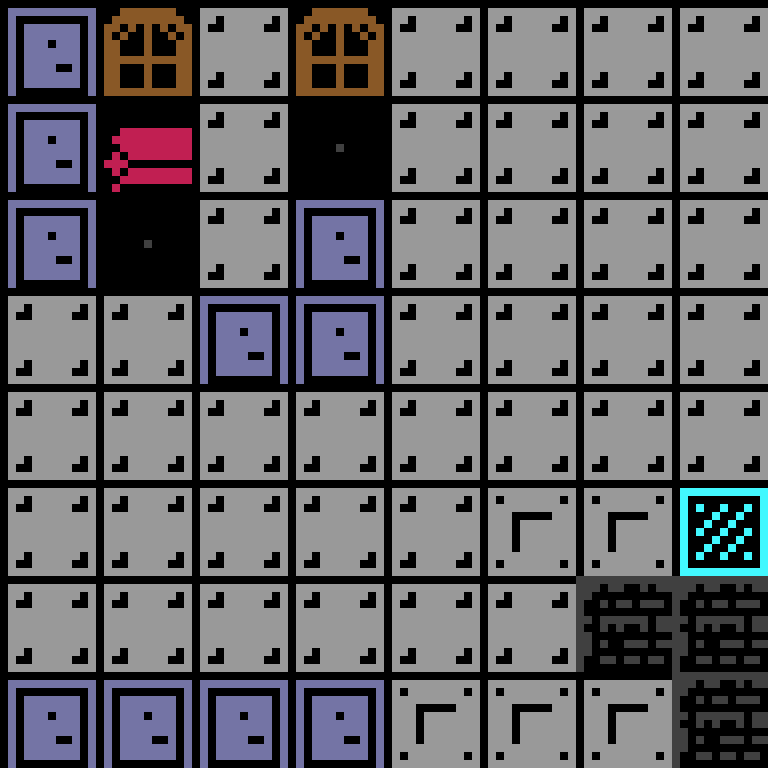

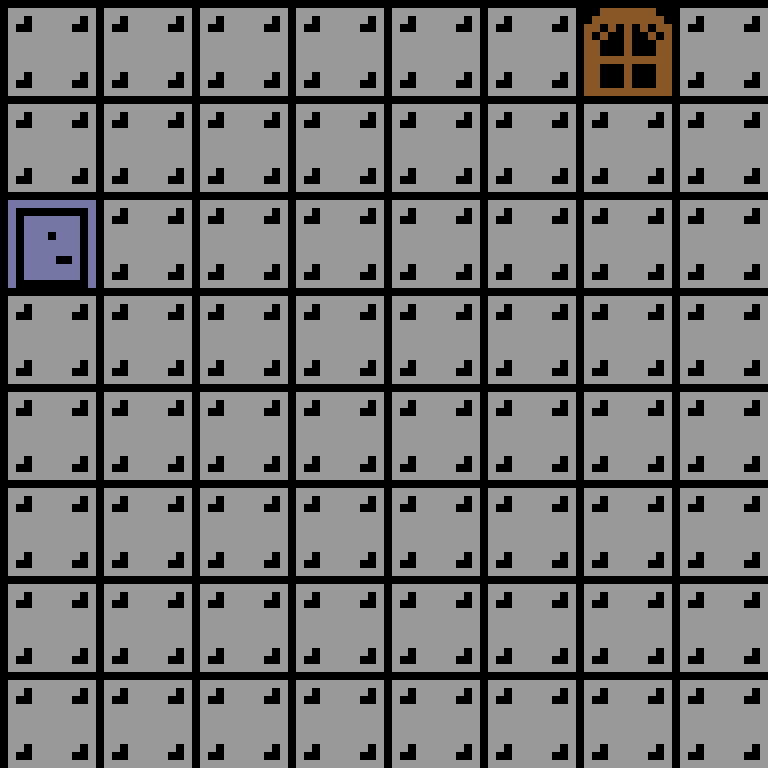

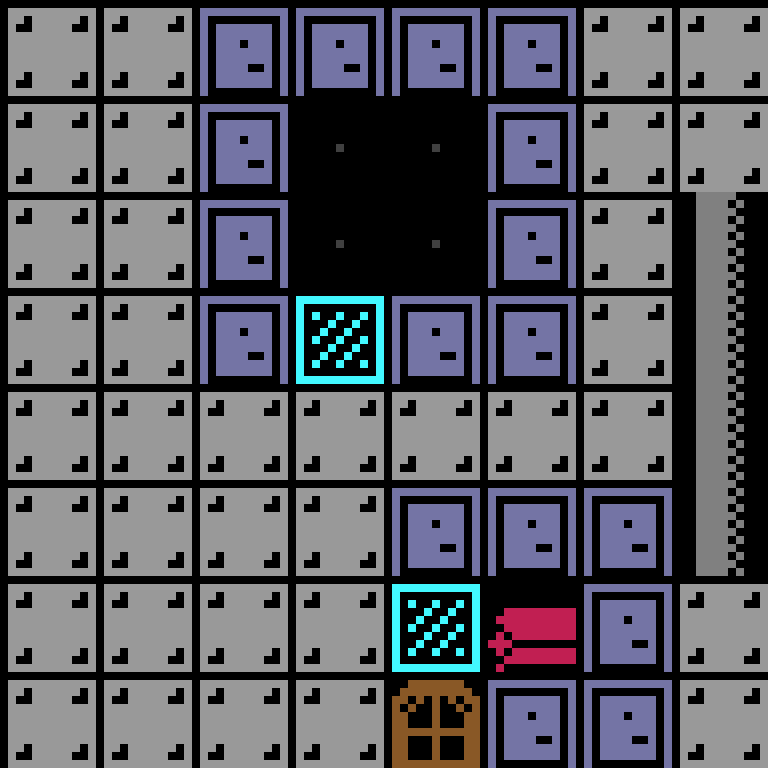

paths-station-branchingspace station, branching order, 8 by 8 cells · 7 of 38

next ›

‹ previous

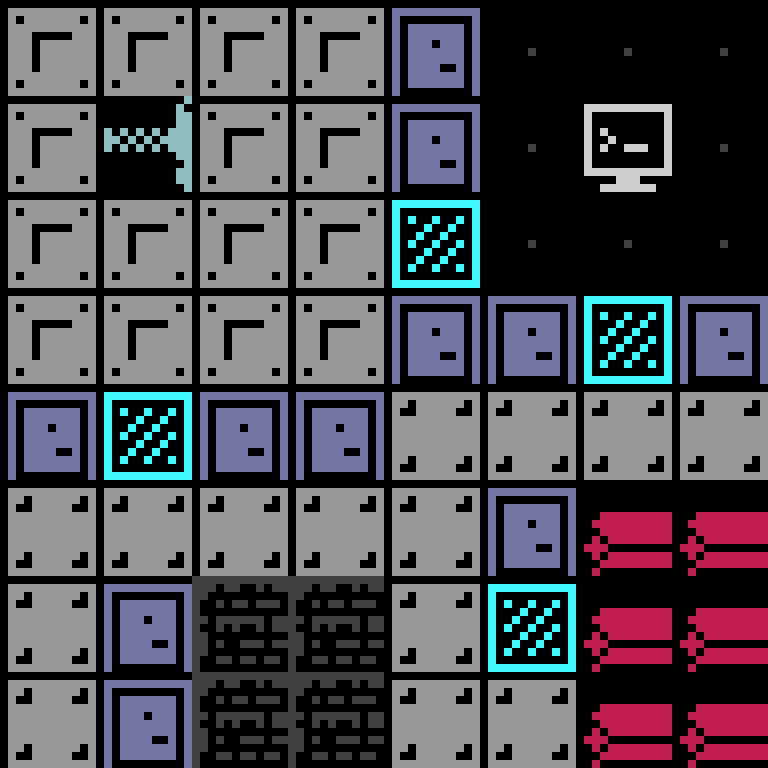

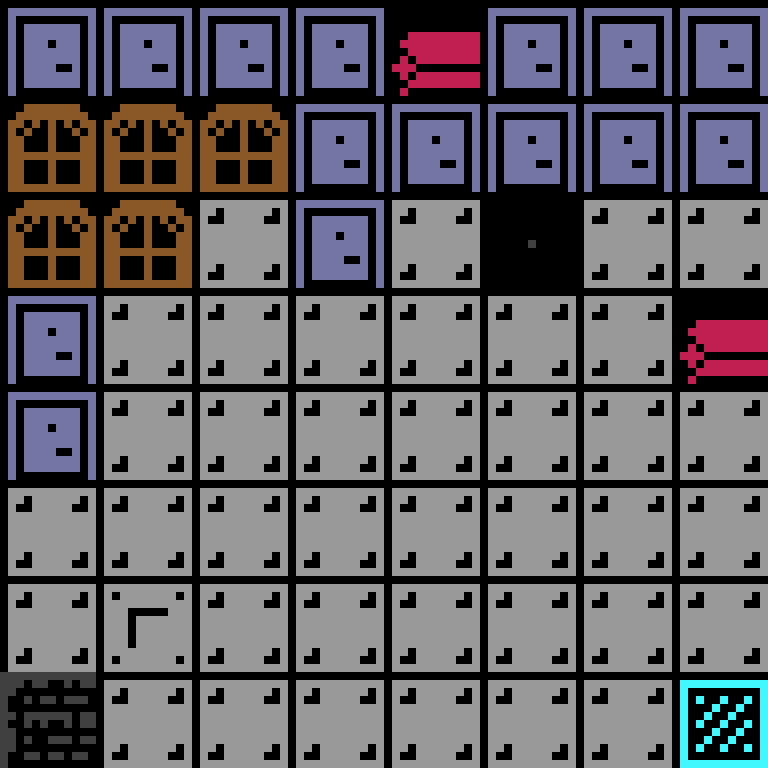

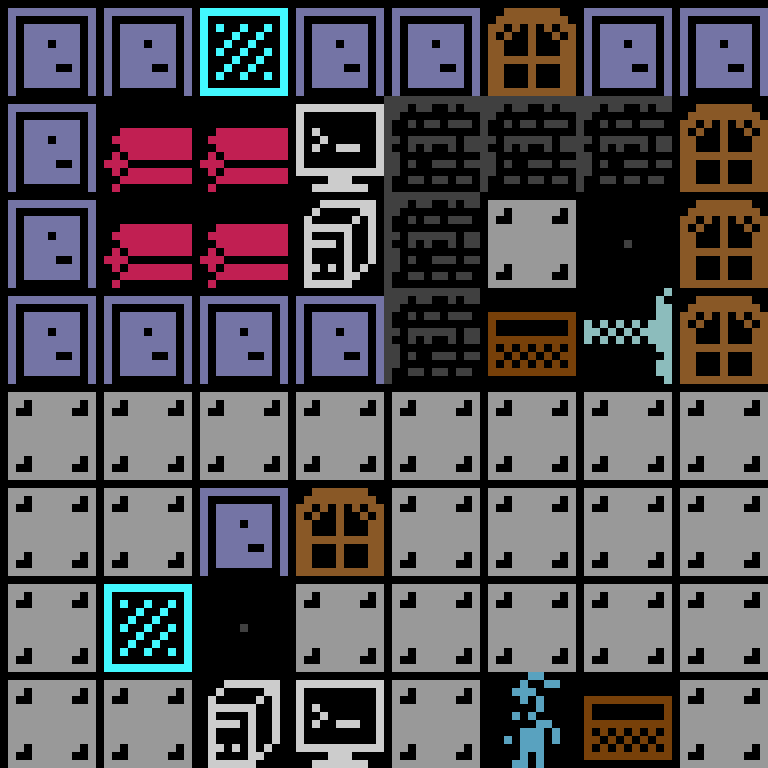

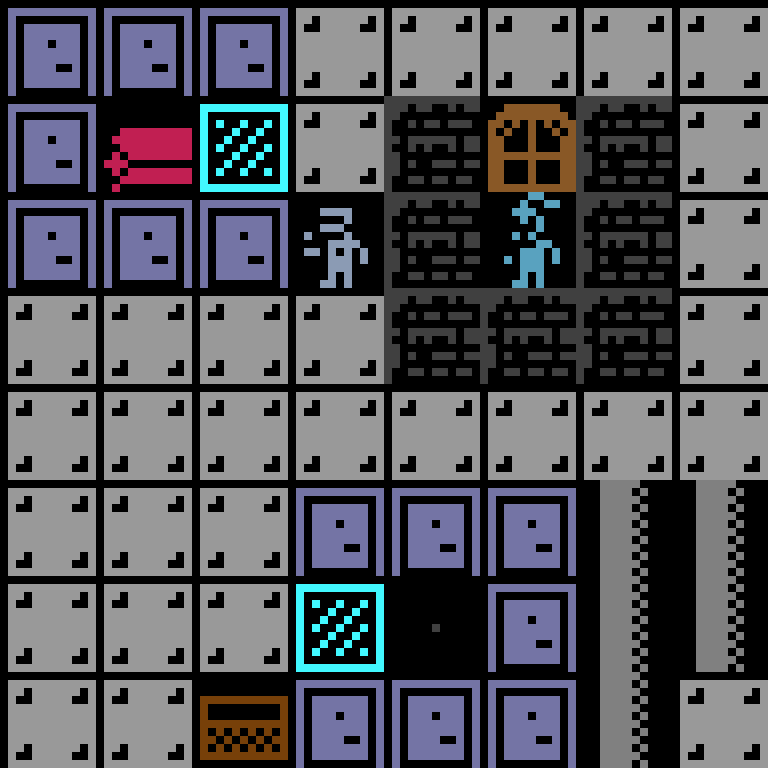

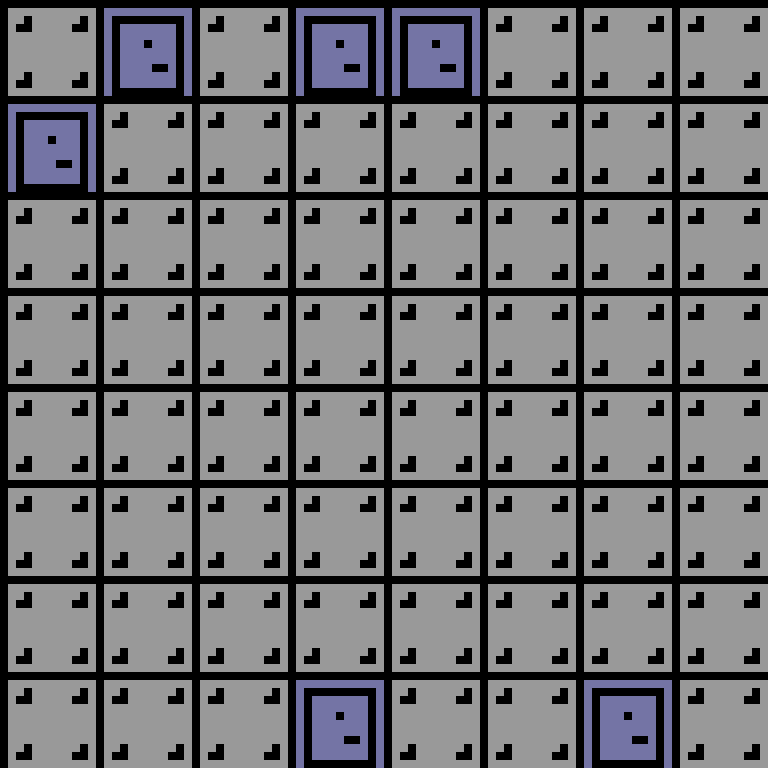

structures-station-frontierspace station, frontier order, 8 by 8 cells · 8 of 38

next ›

‹ previous

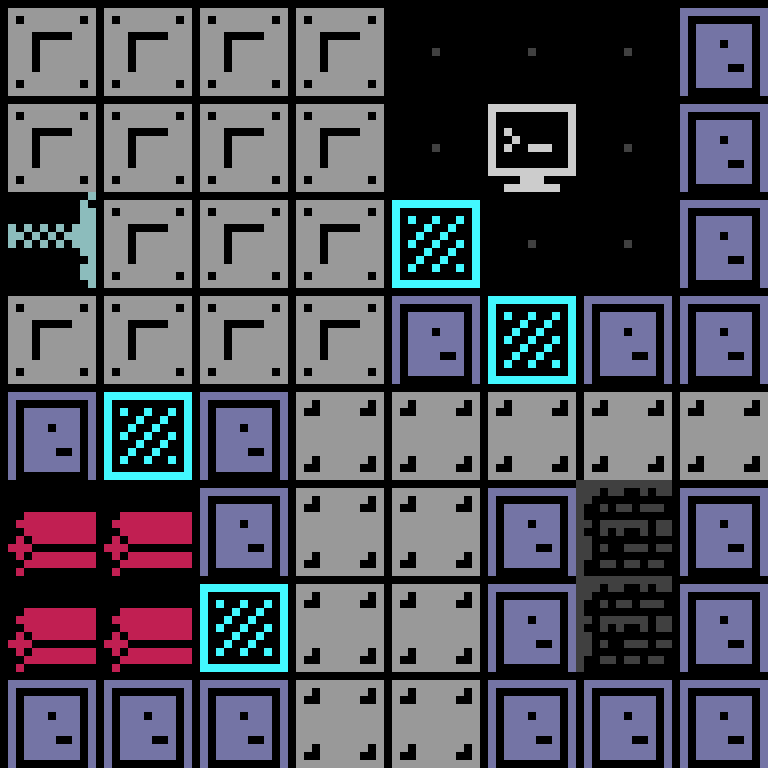

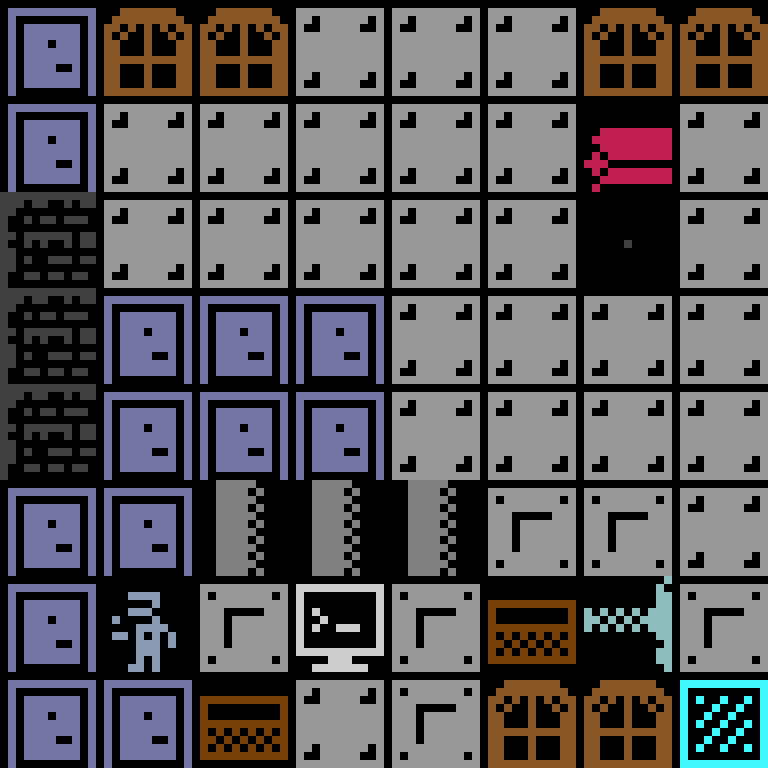

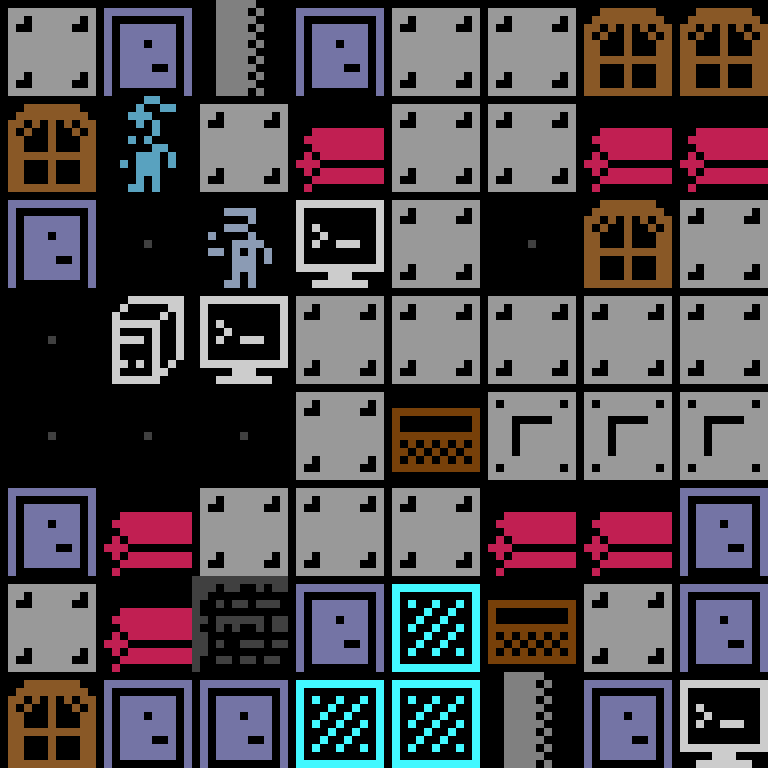

rules-station-randomspace station, random order, 8 by 8 cells · 9 of 38

next ›

‹ previous

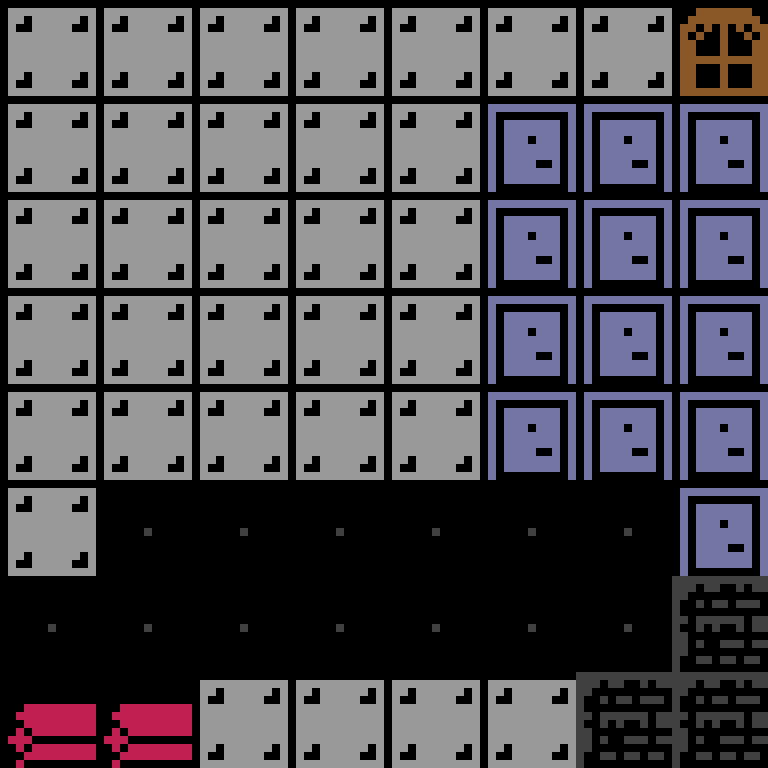

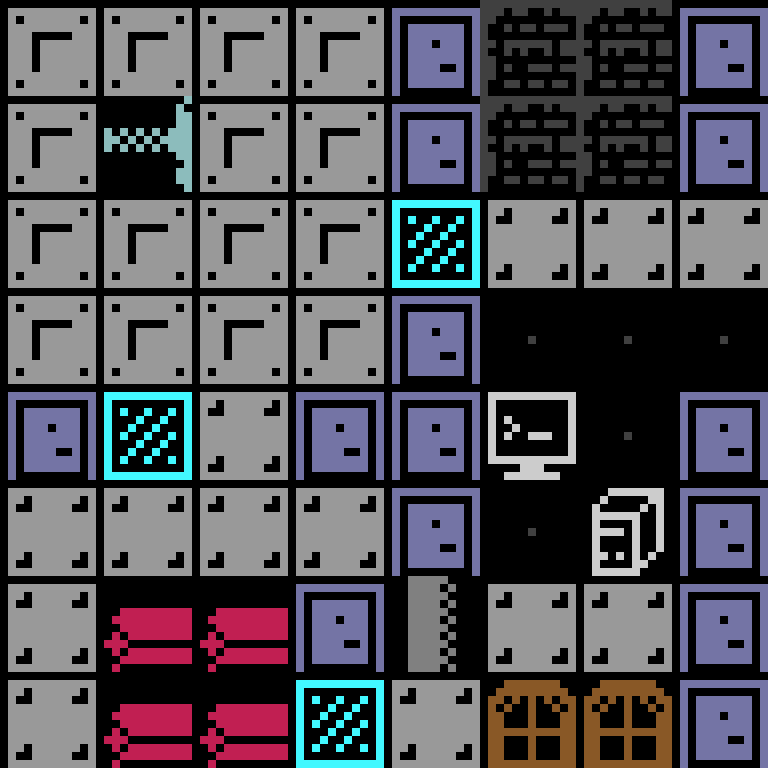

reach-station-spiralspace station, spiral order, 8 by 8 cells · 10 of 38

next ›

‹ previous

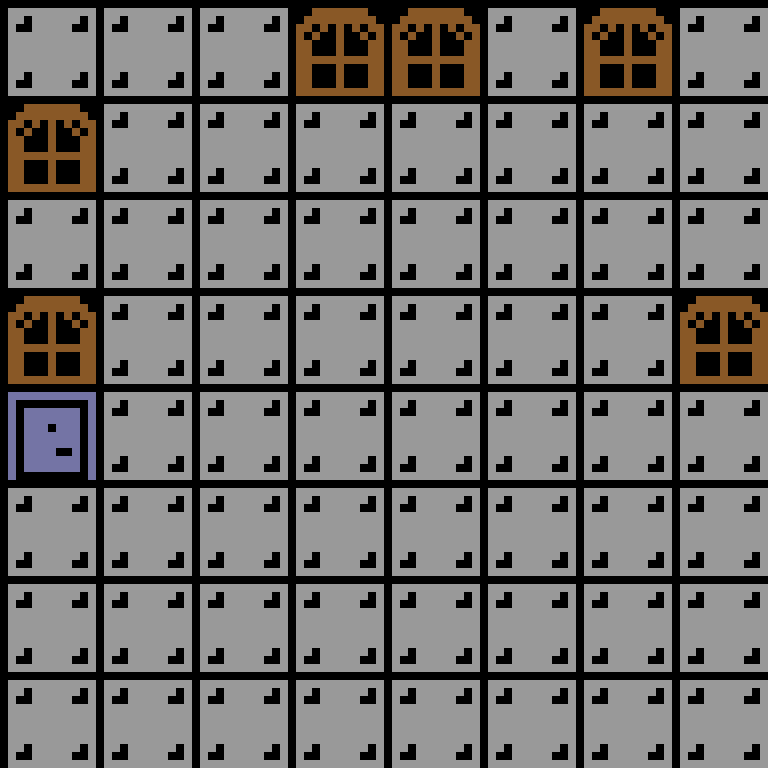

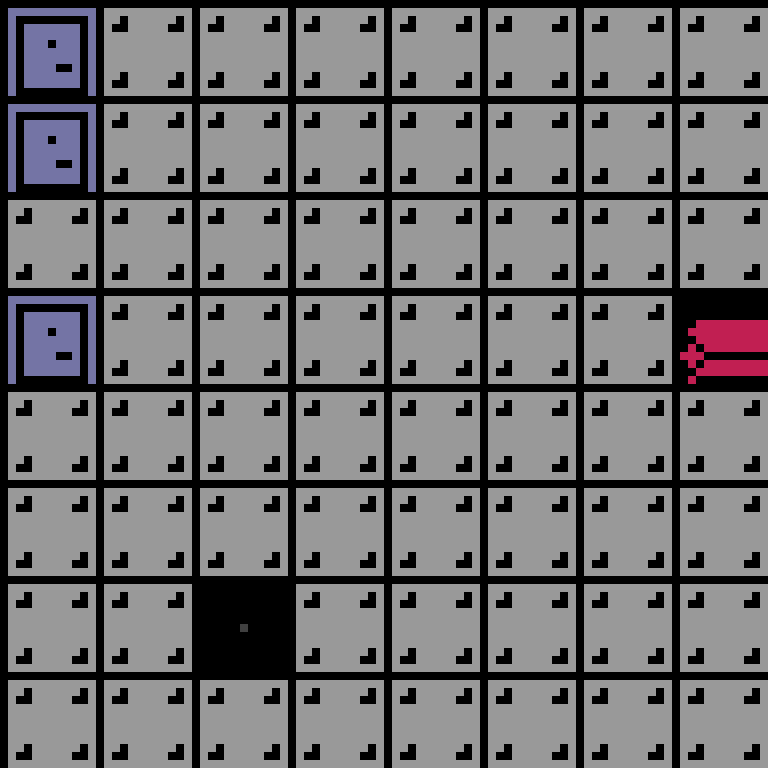

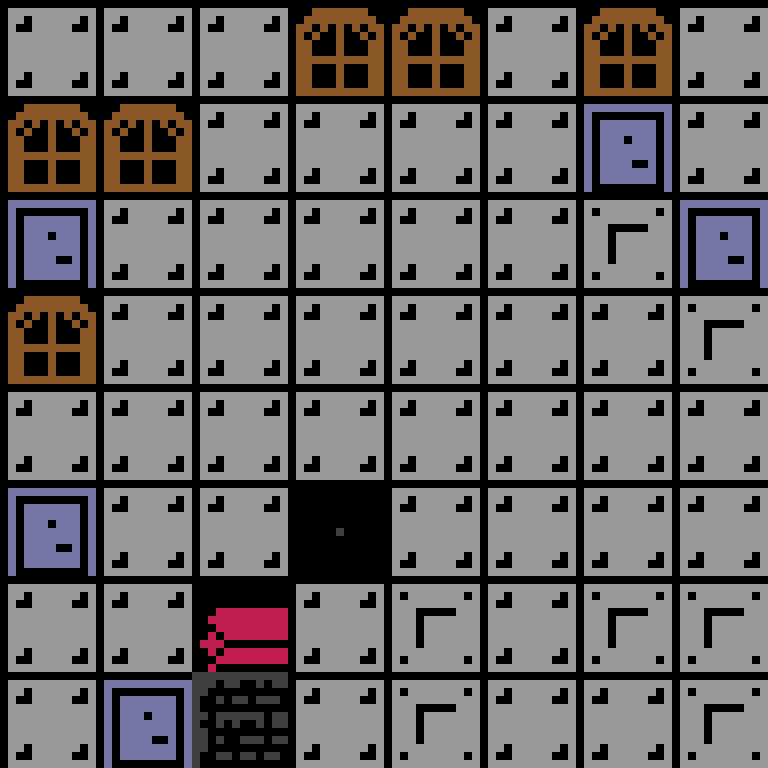

story-station-spiralspace station, spiral order, 8 by 8 cells · 11 of 38

next ›

‹ previous

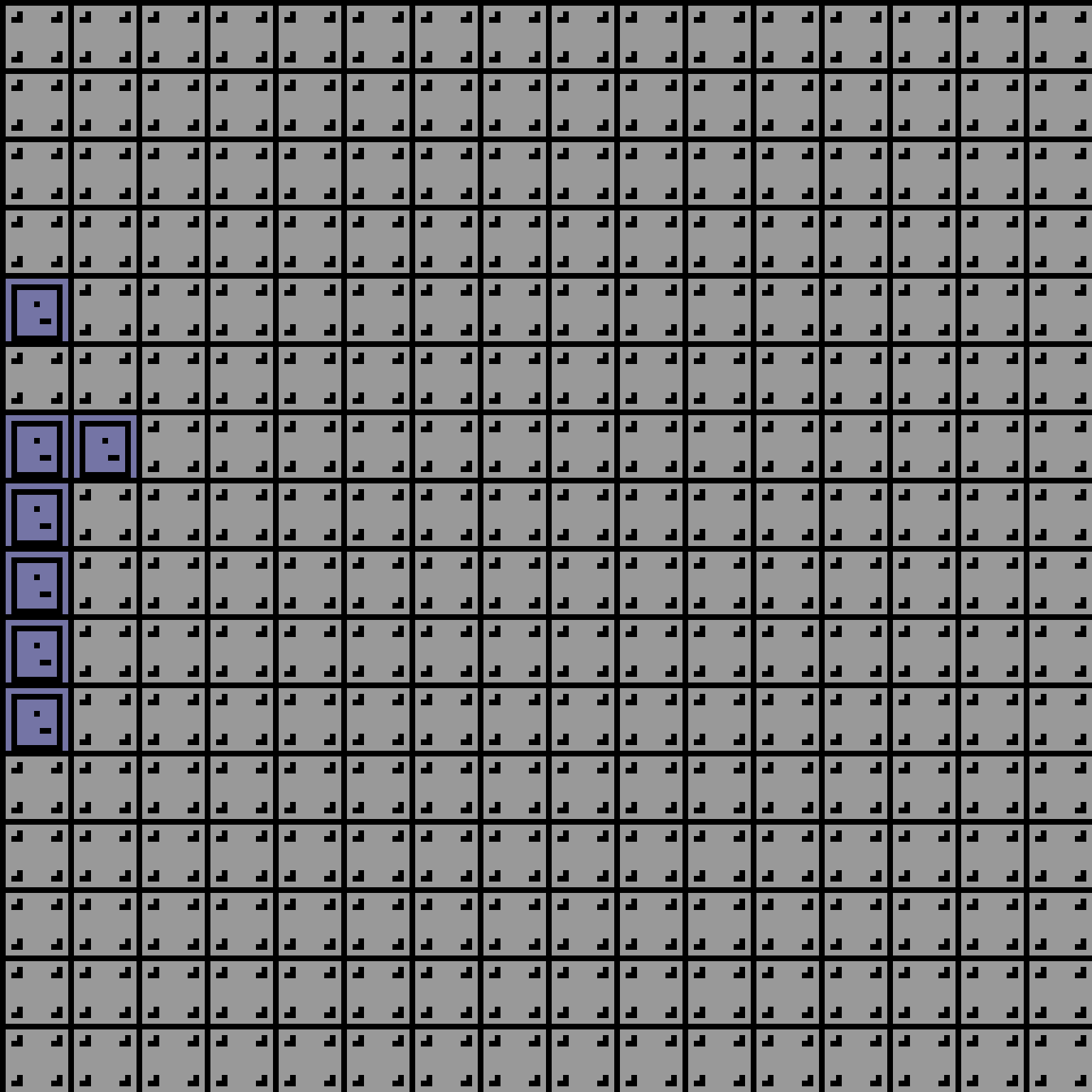

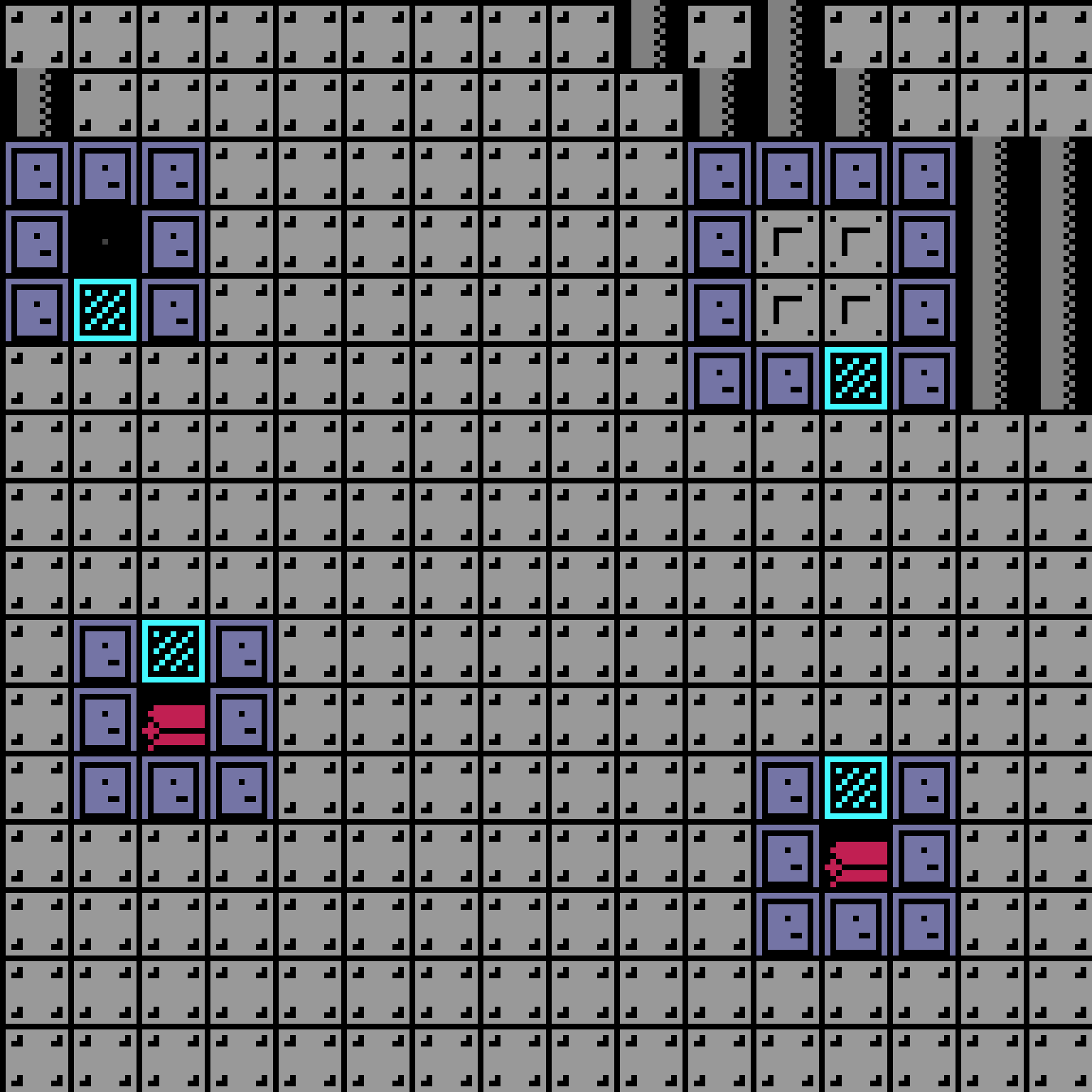

large-station-frontierspace station, frontier order, 16 by 16 cells · 12 of 38

next ›

‹ previous

routes-mansion-frontierhaunted mansion, frontier order, 8 by 8 cells · 13 of 38

next ›

‹ previous

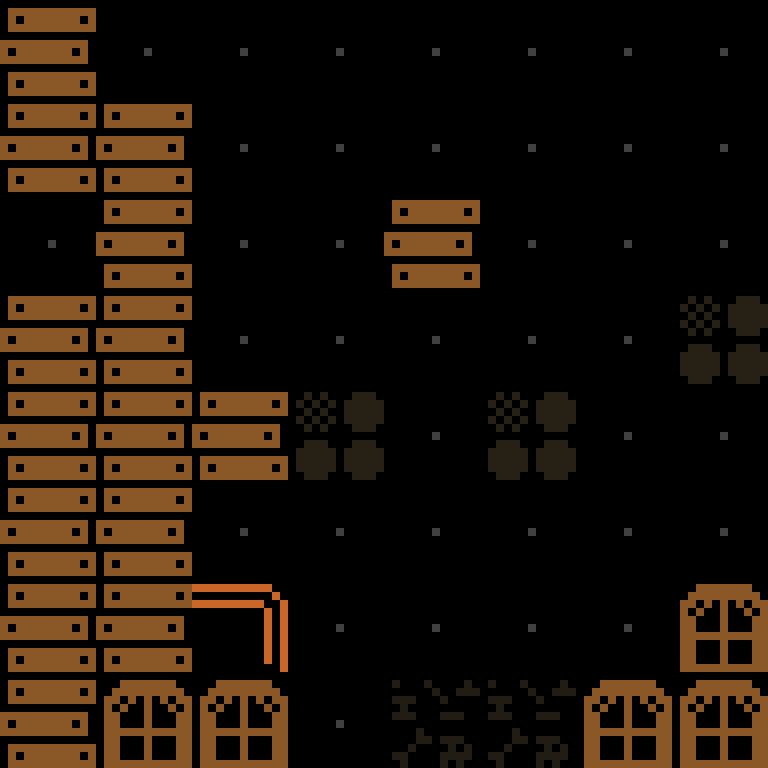

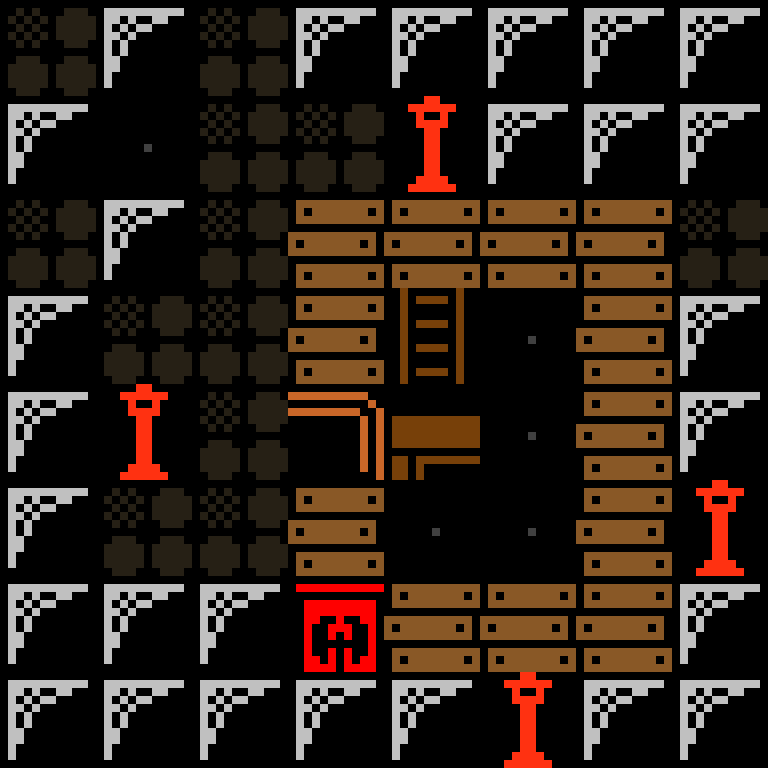

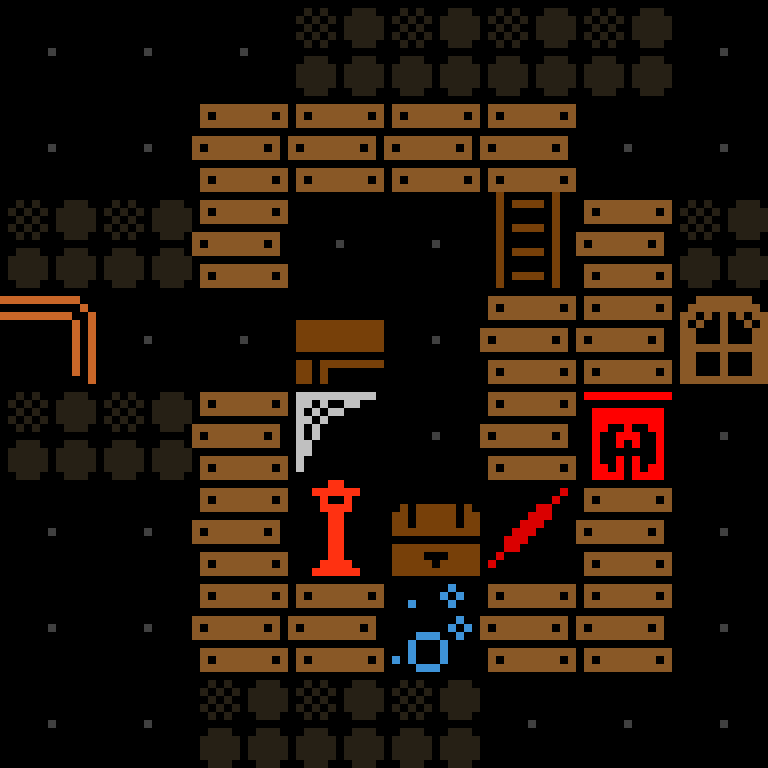

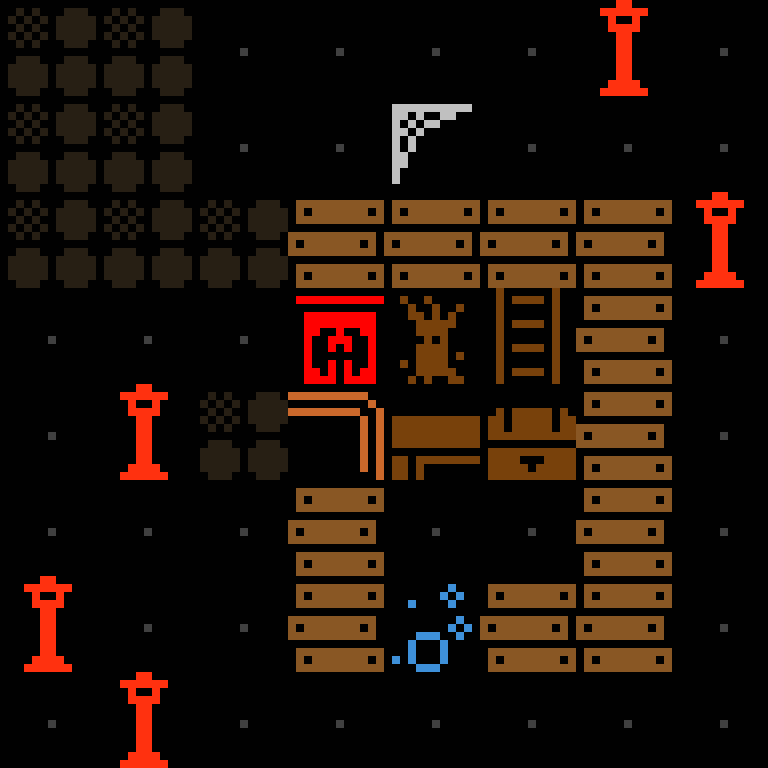

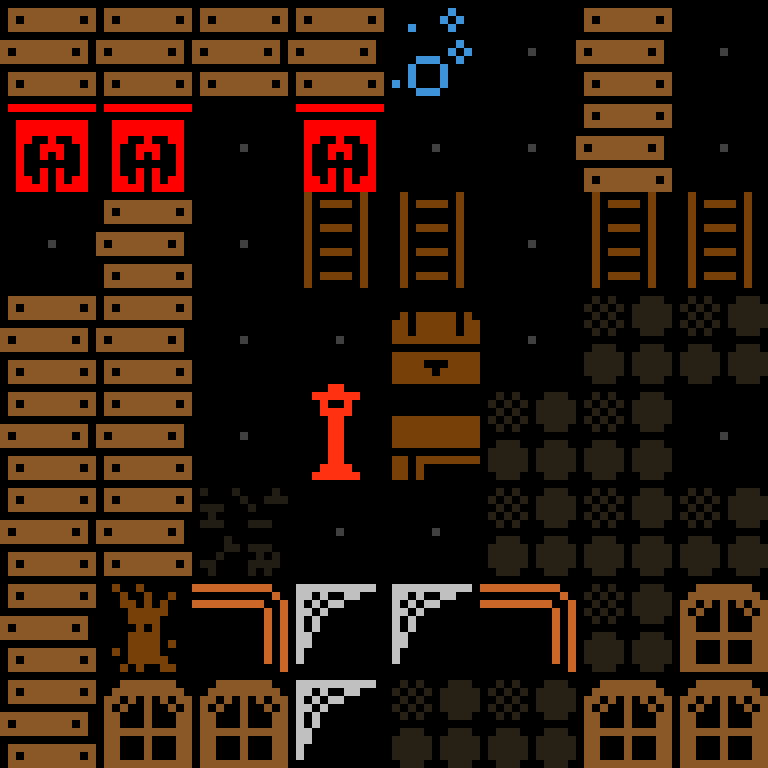

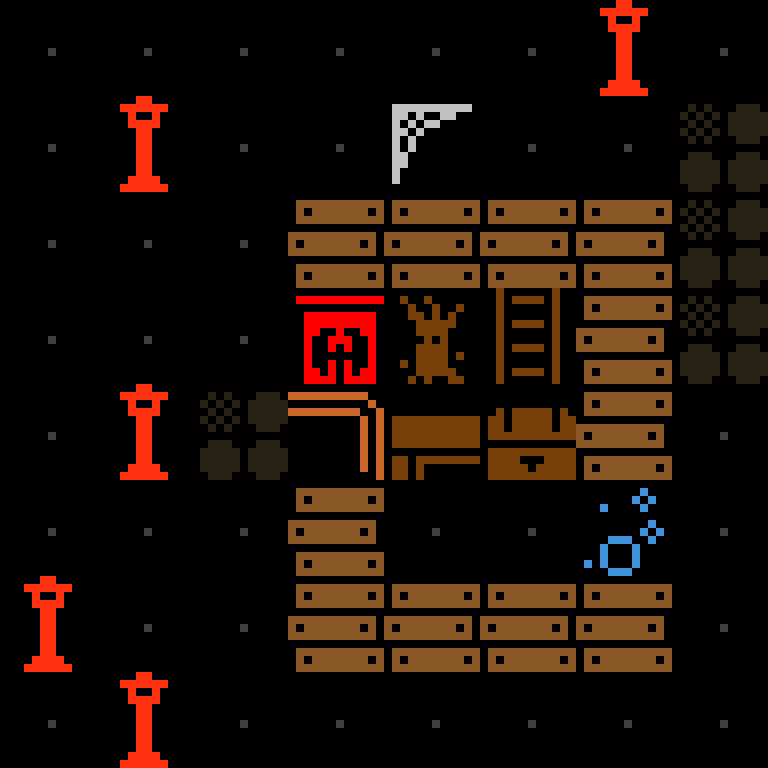

reach-mansion-randomhaunted mansion, random order, 8 by 8 cells · 14 of 38

next ›

‹ previous

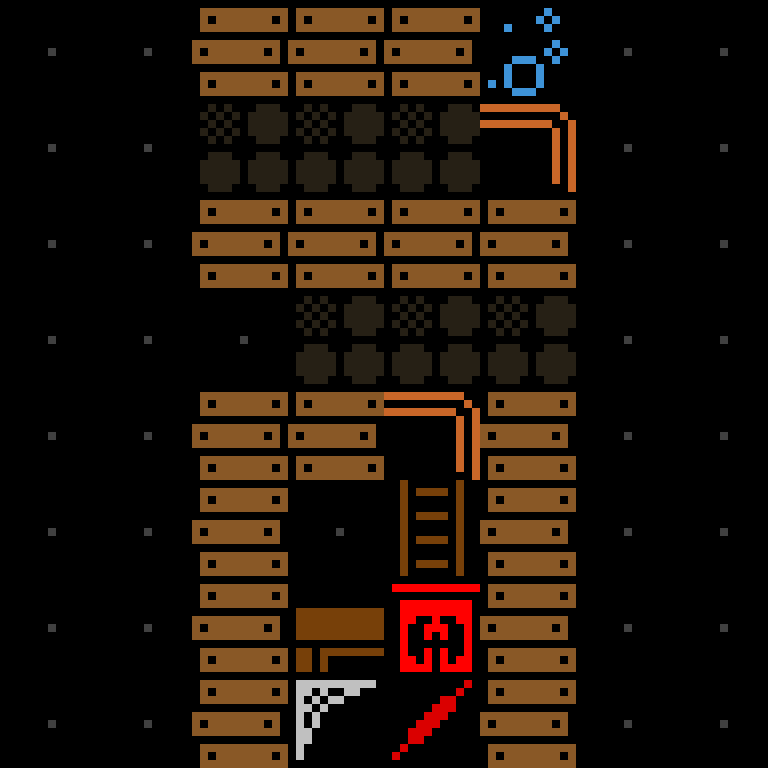

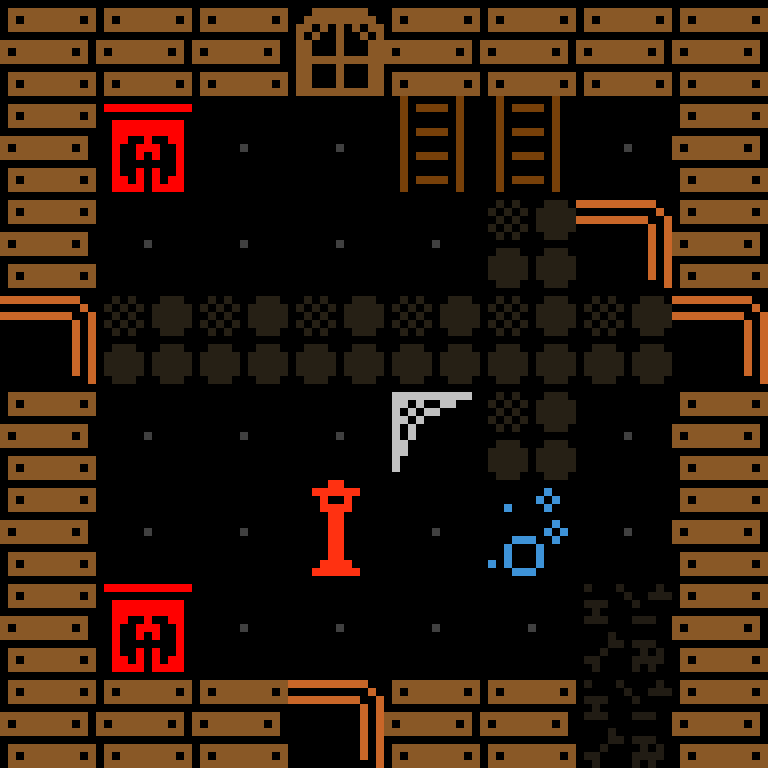

coherence-mansion-spiralhaunted mansion, spiral order, 8 by 8 cells · 15 of 38

next ›

‹ previous

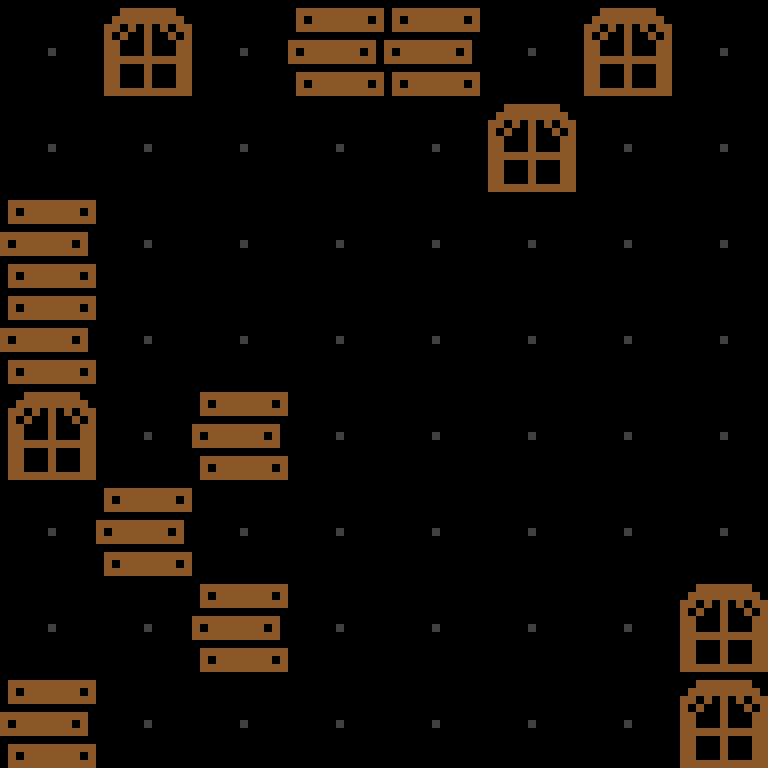

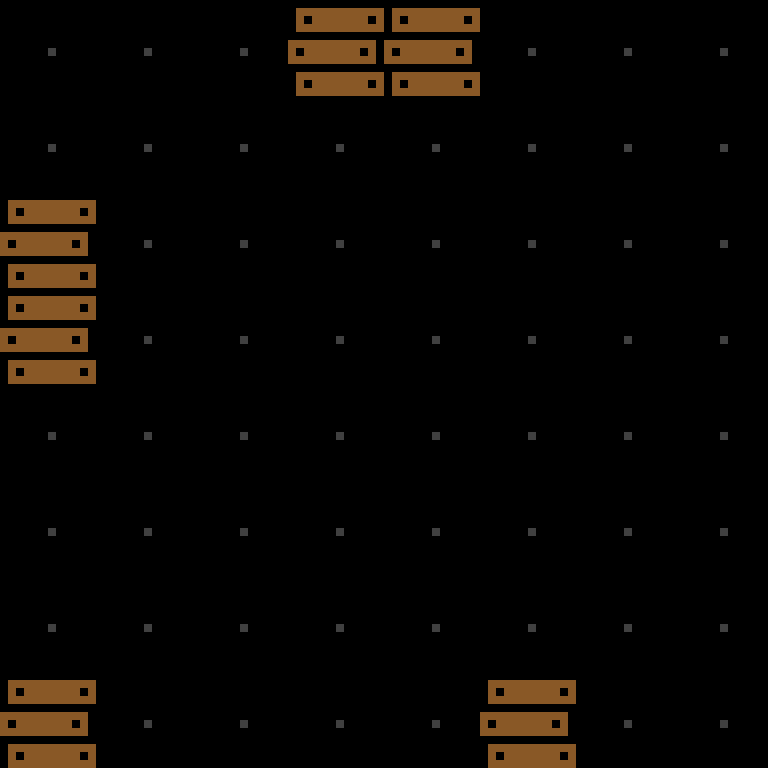

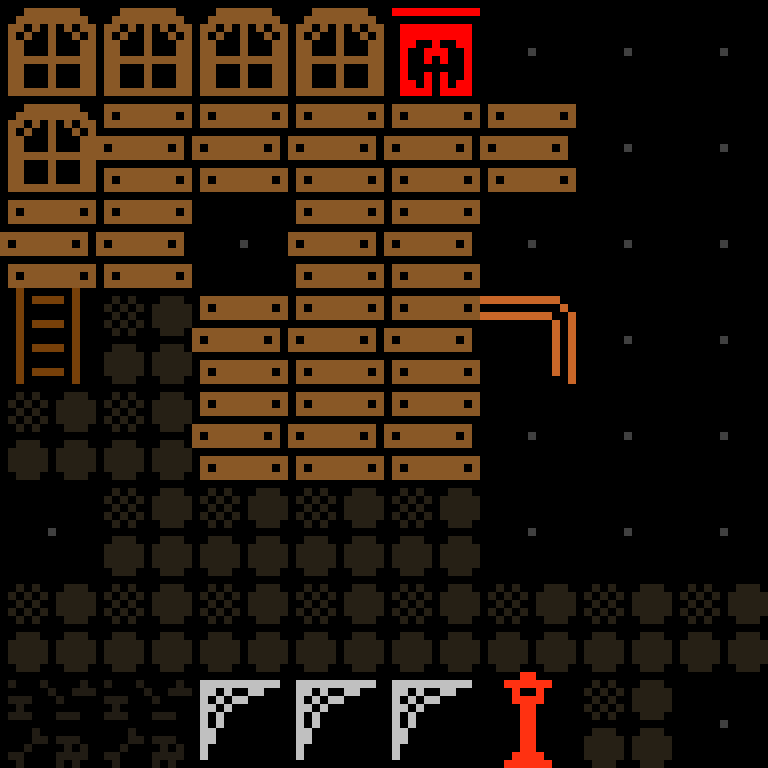

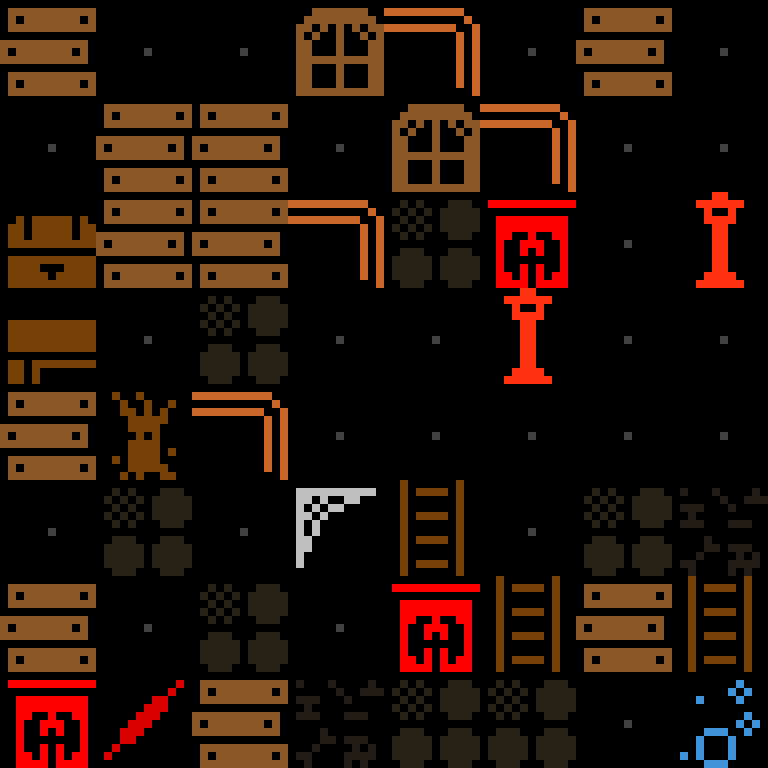

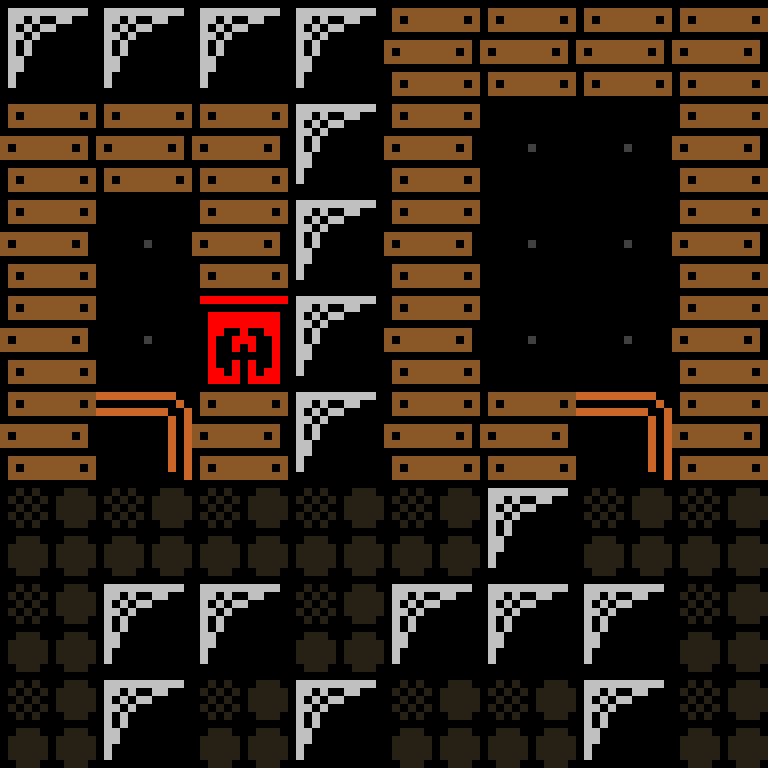

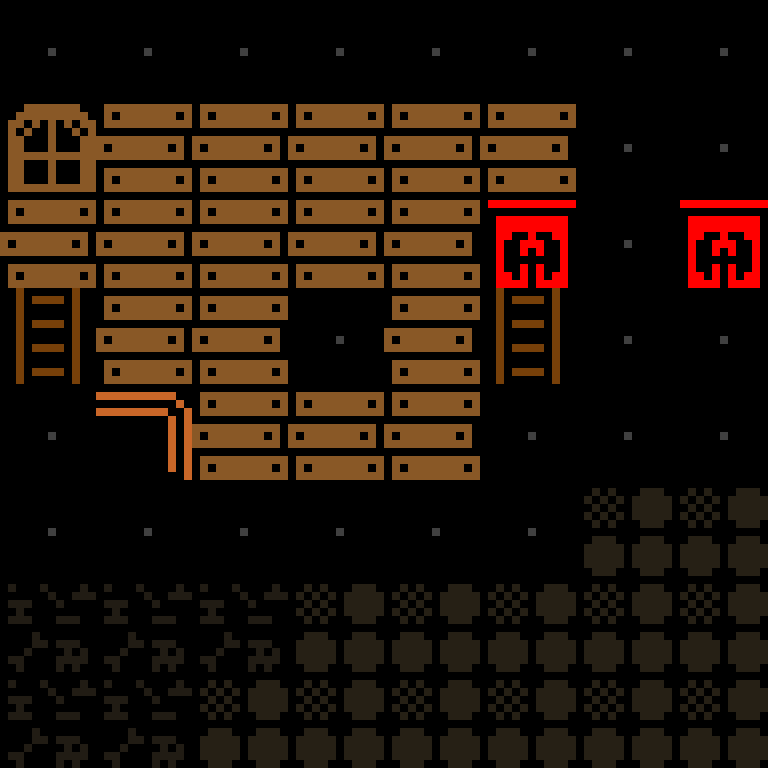

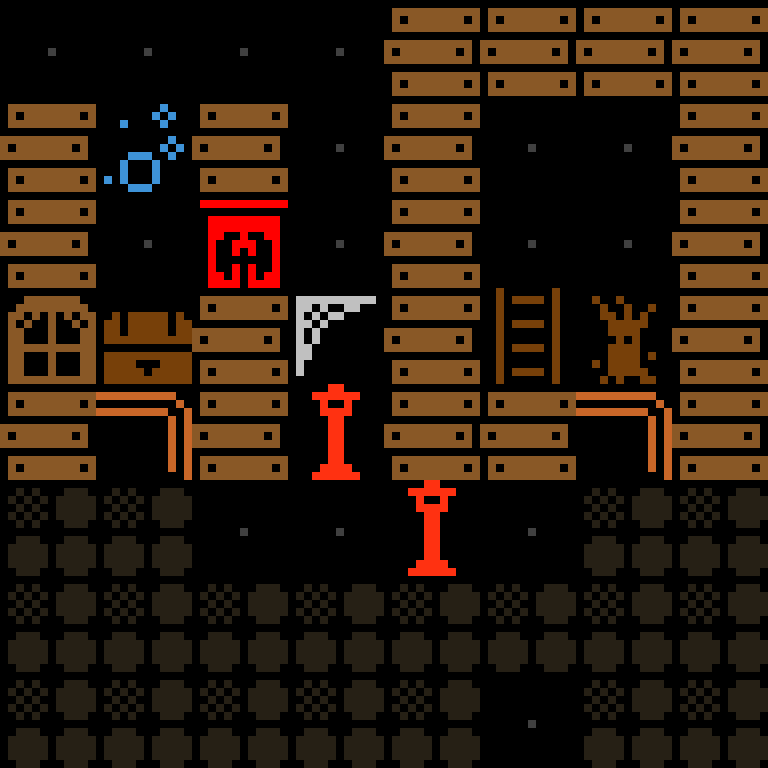

story-mansion-spiralhaunted mansion, spiral order, 8 by 8 cells · 16 of 38

next ›

‹ previous

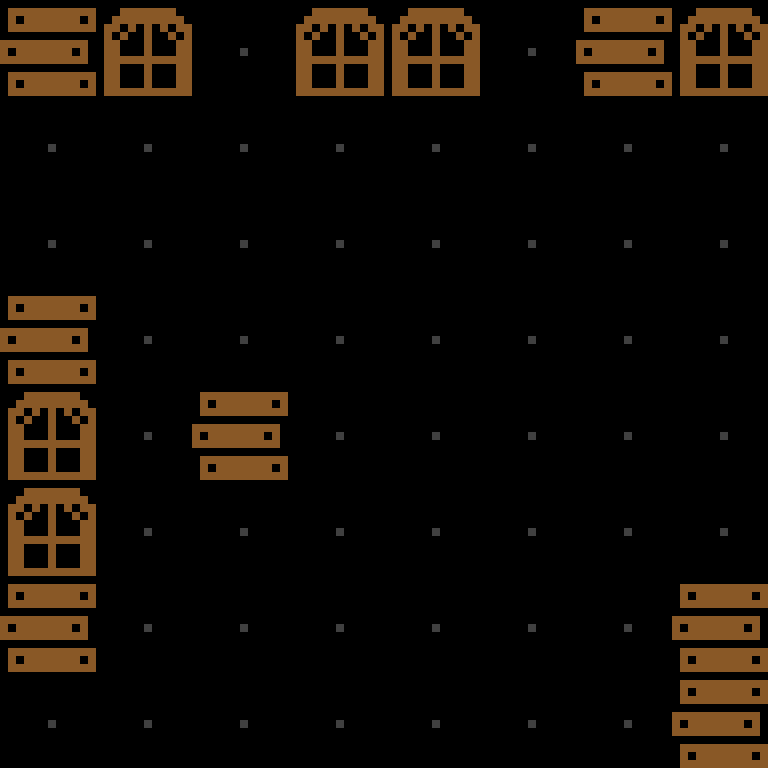

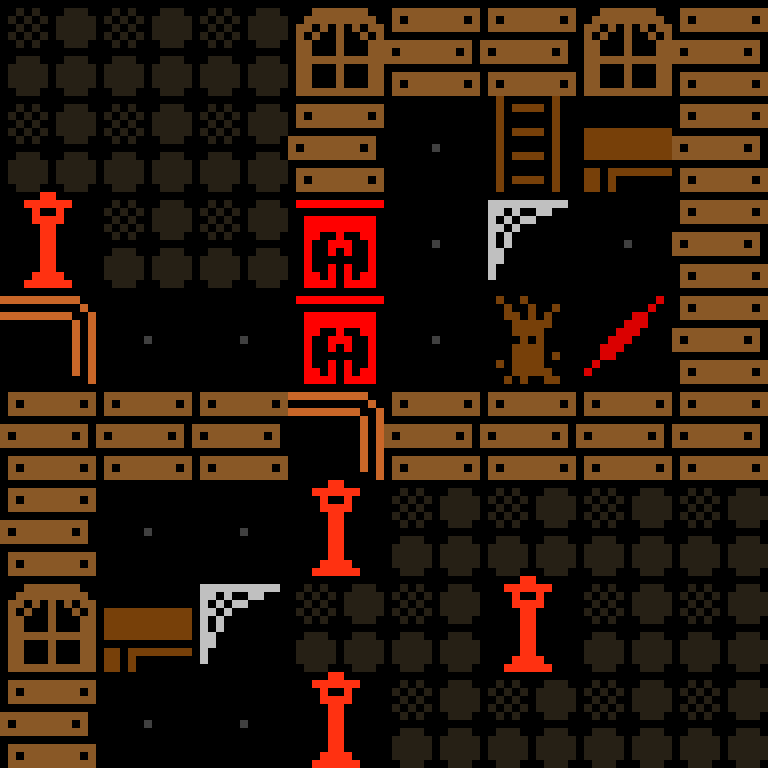

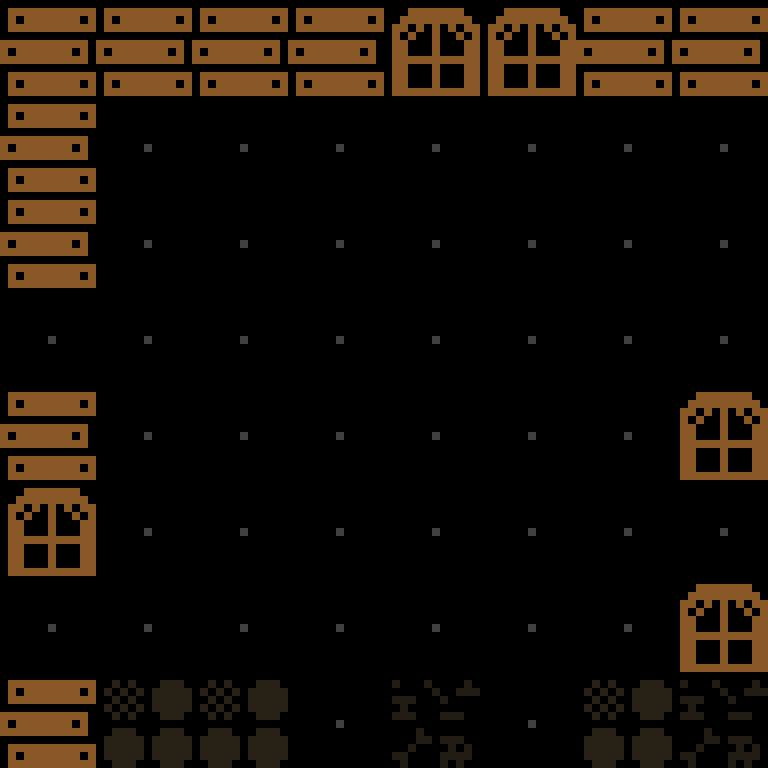

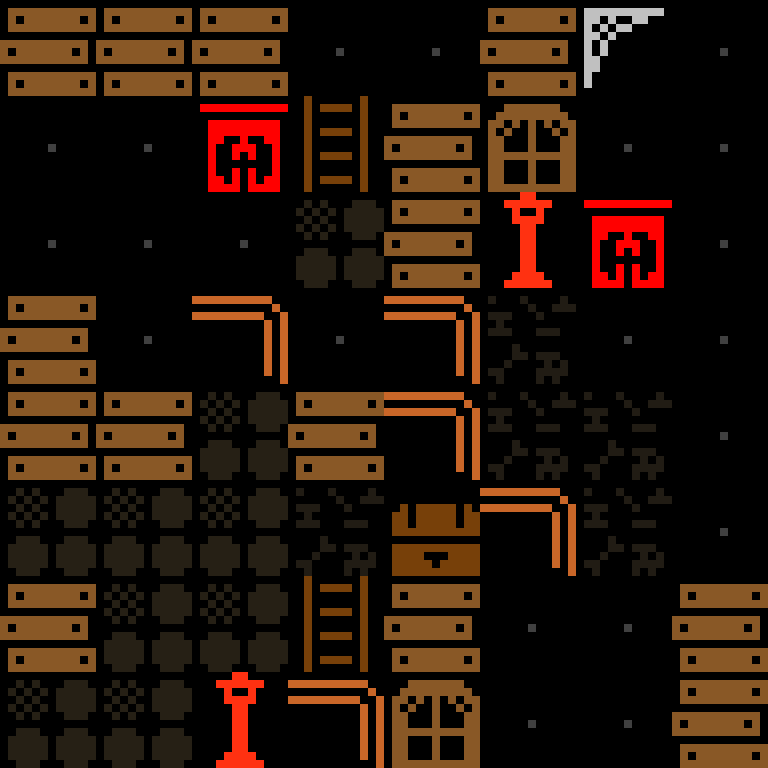

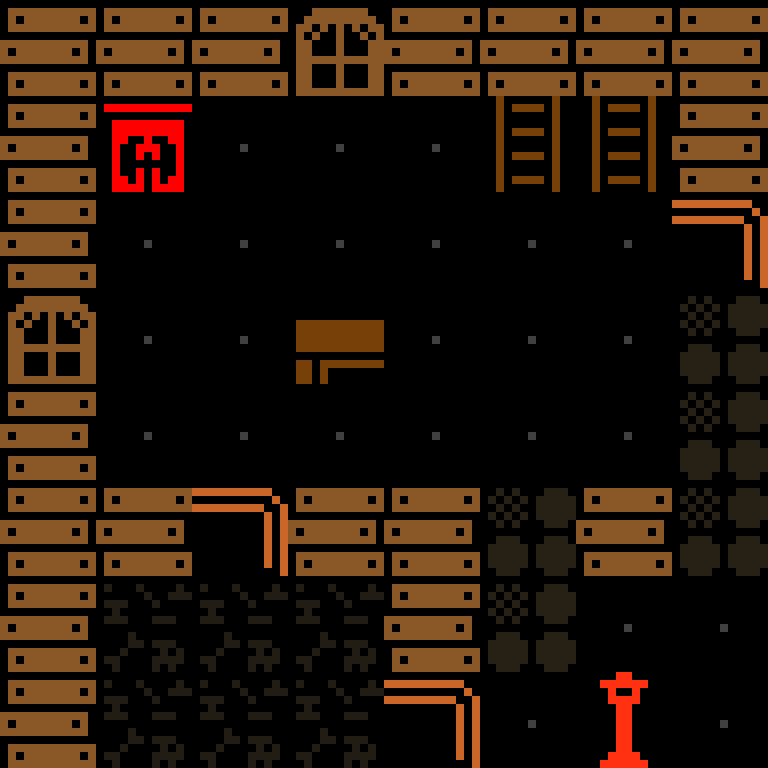

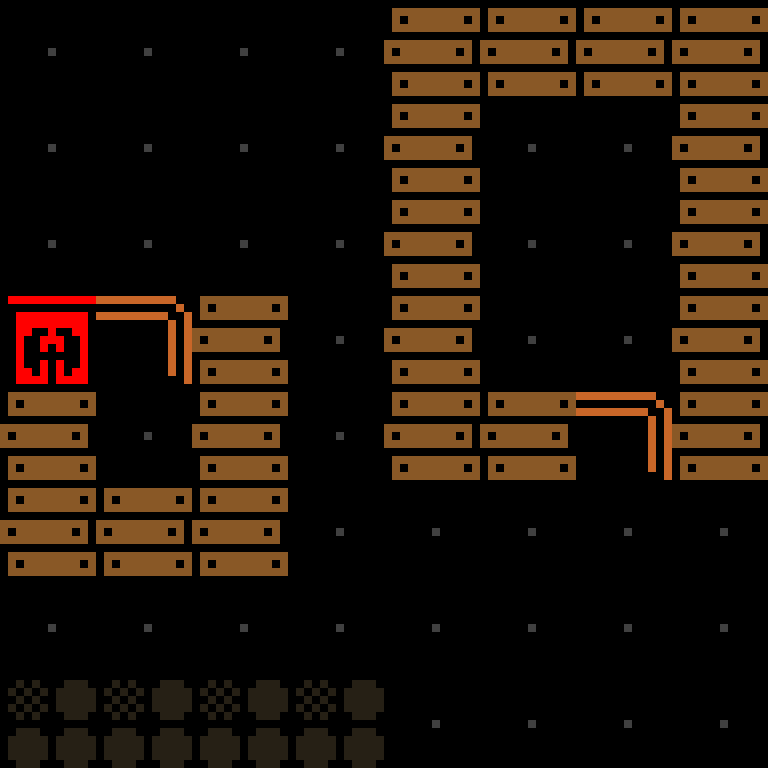

structures-mansion-spiralhaunted mansion, spiral order, 8 by 8 cells · 17 of 38

next ›

‹ previous

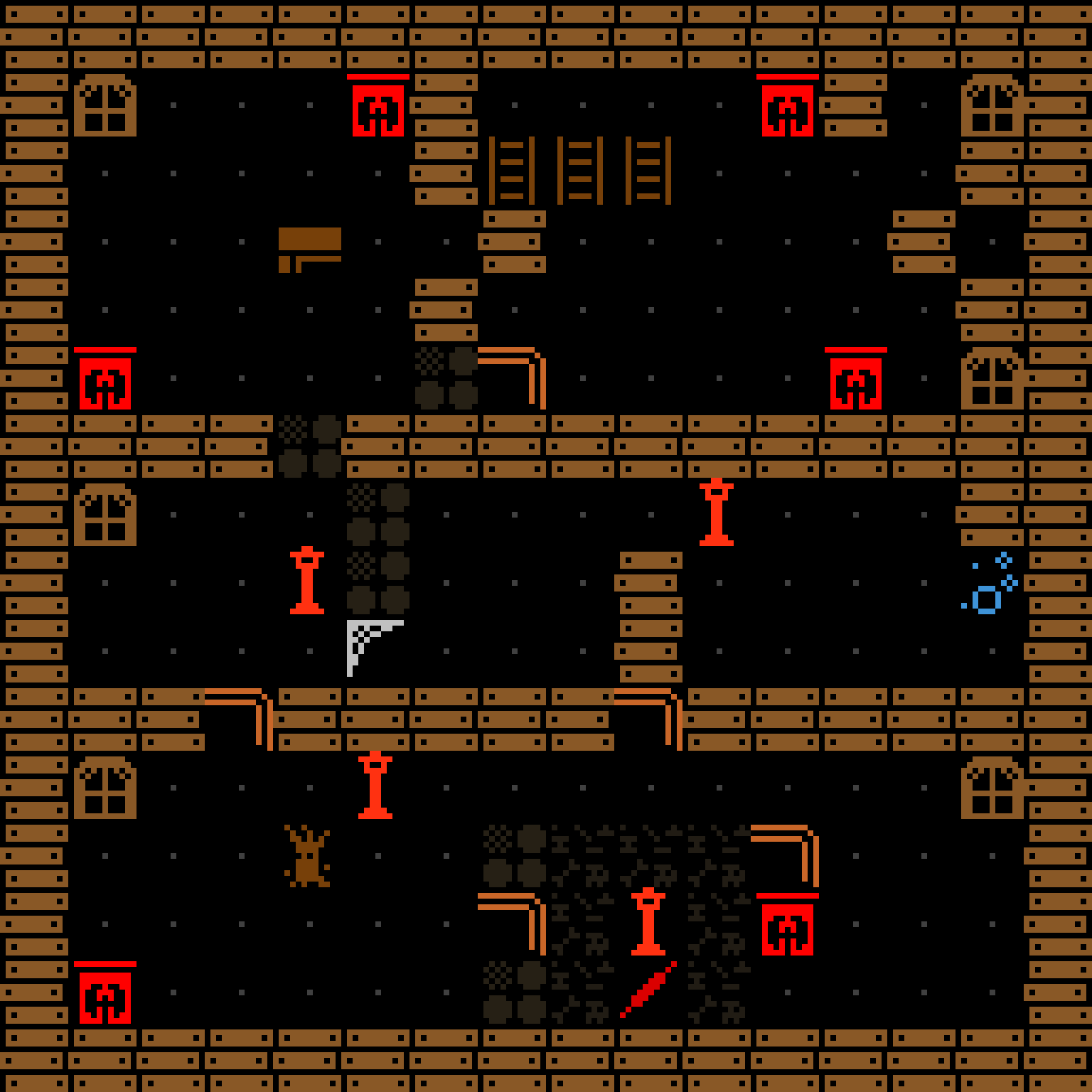

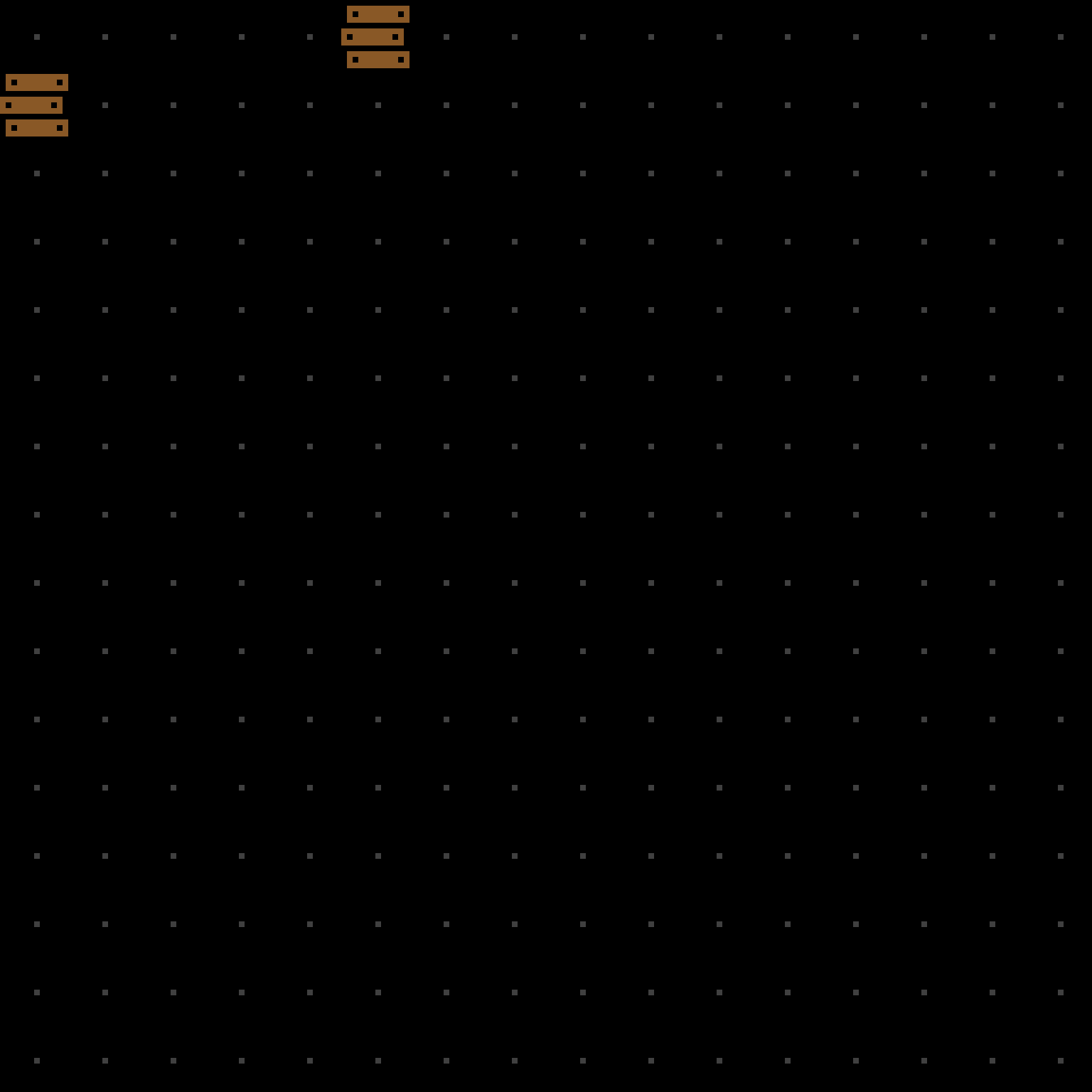

large-mansion-clusteredhaunted mansion, clustered order, 16 by 16 cells · 18 of 38

next ›

‹ previous

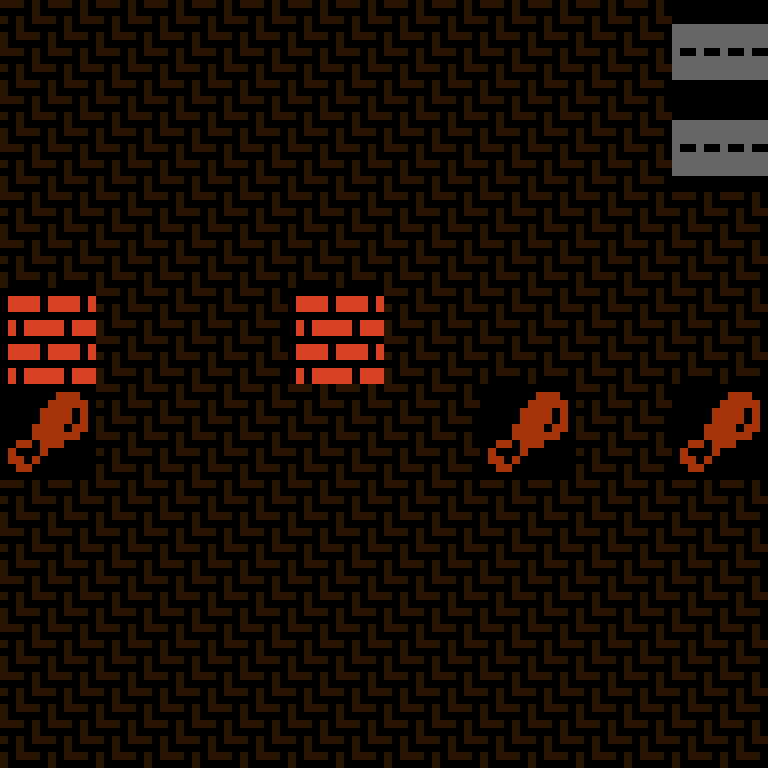

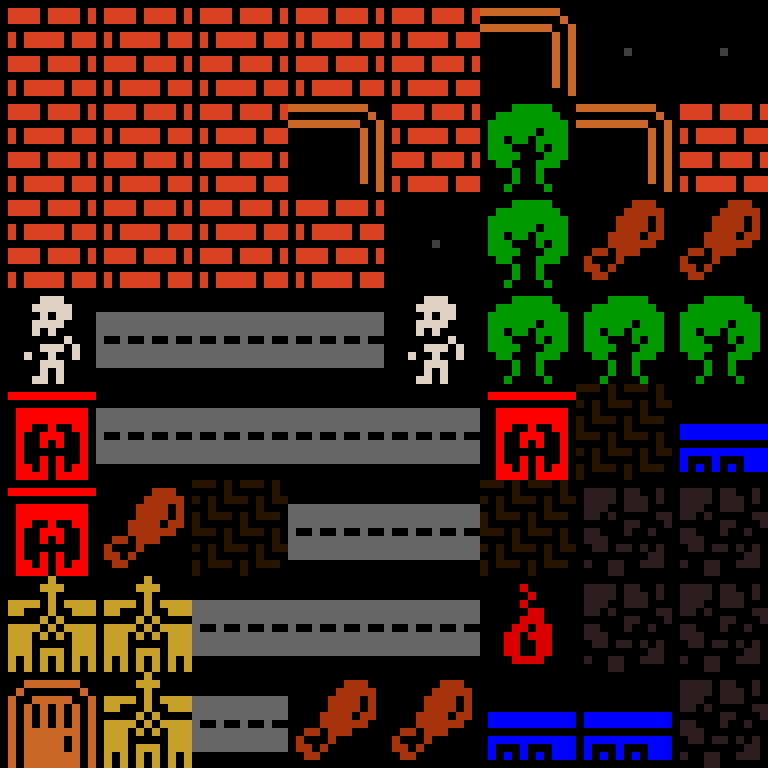

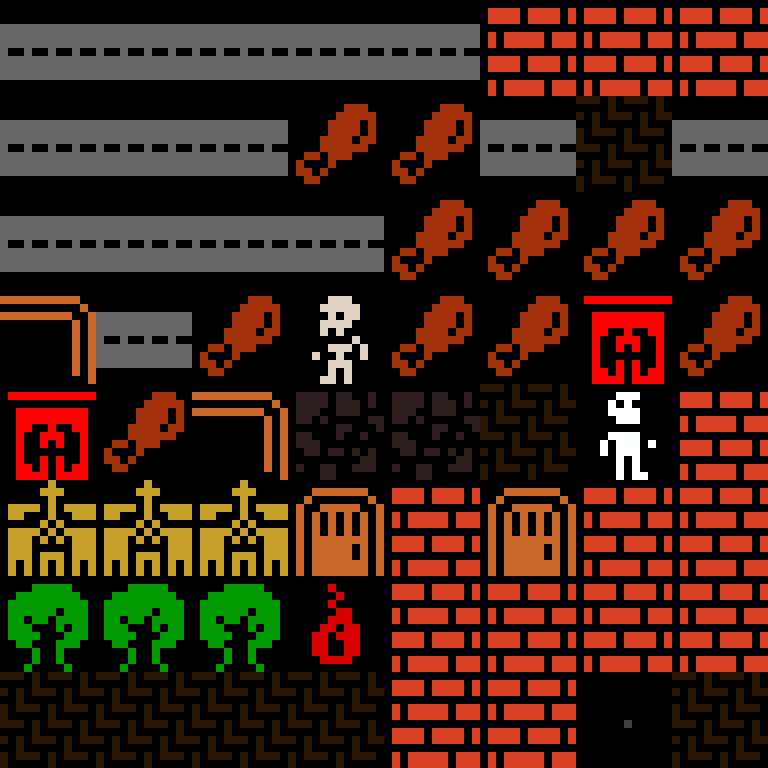

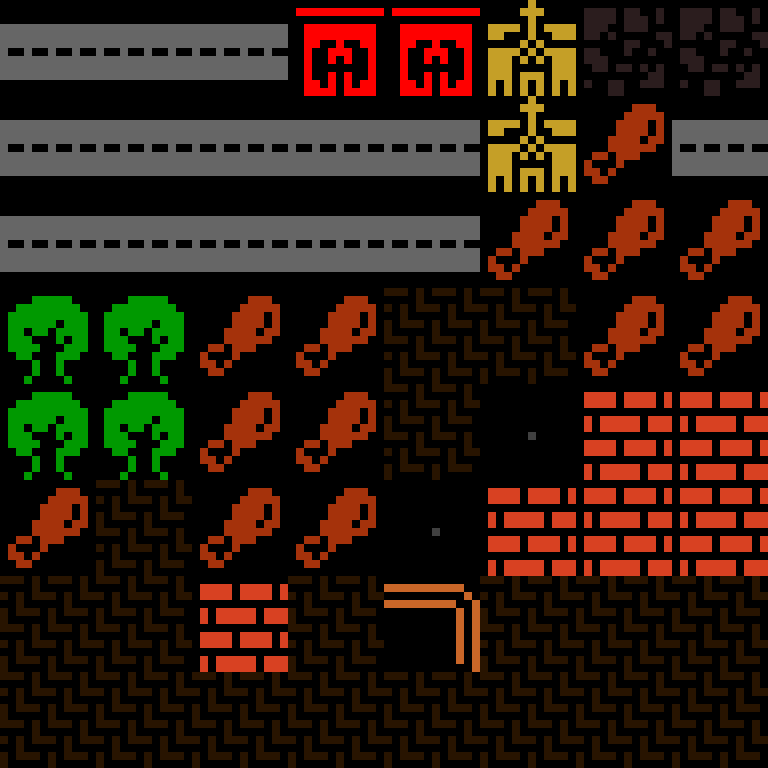

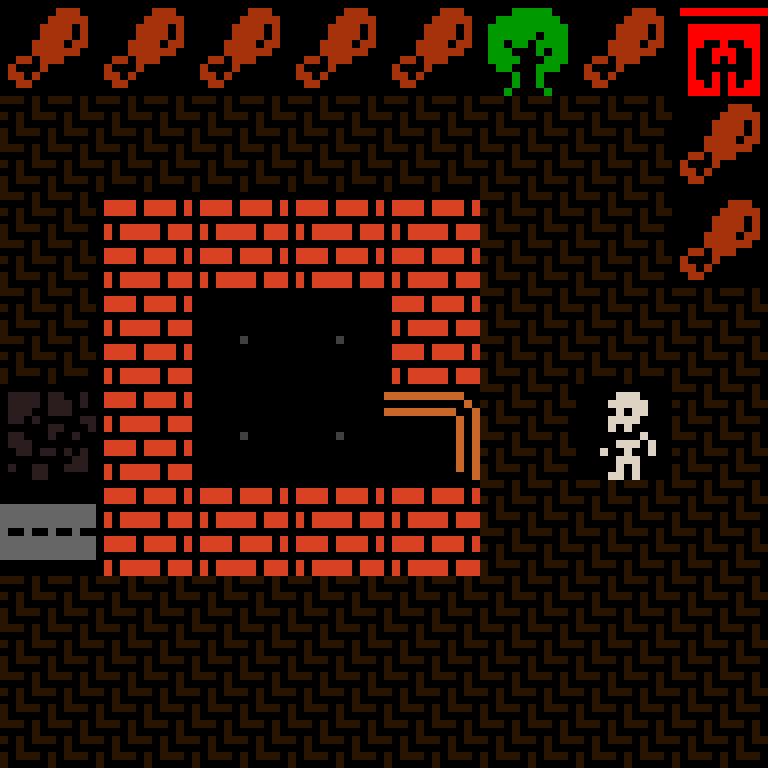

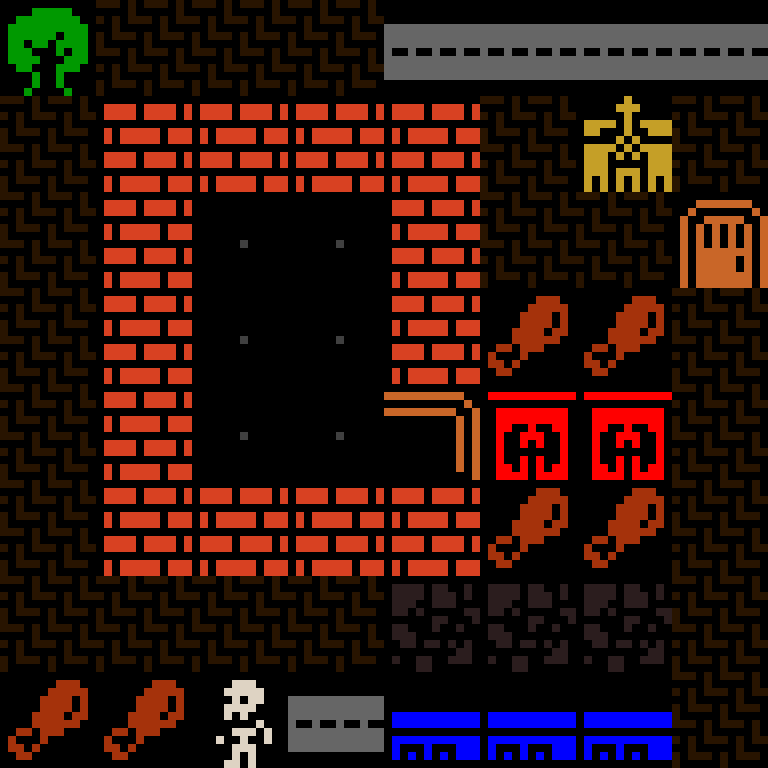

paths-market-clusteredmarket, clustered order, 8 by 8 cells · 19 of 38

next ›

‹ previous

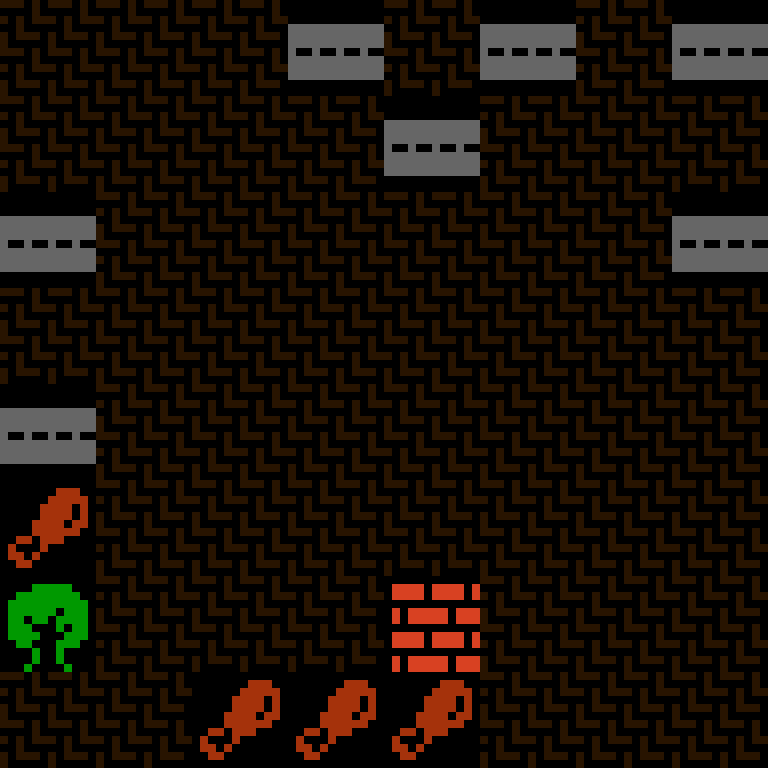

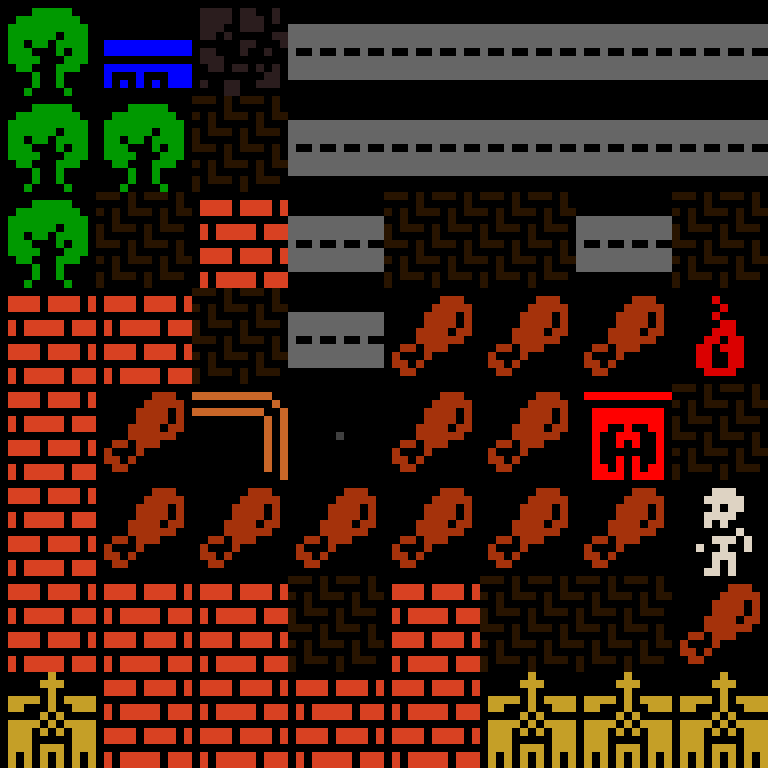

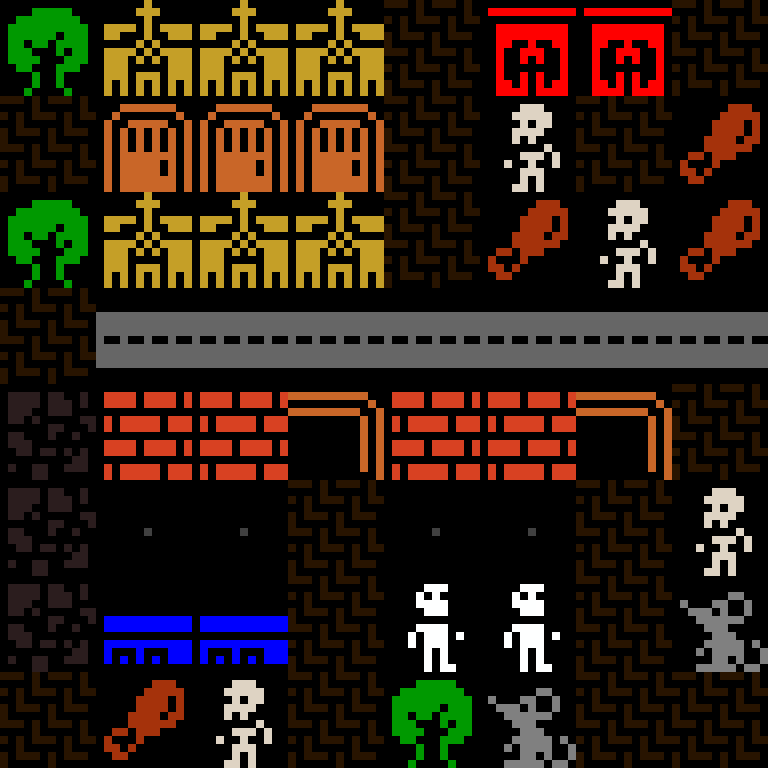

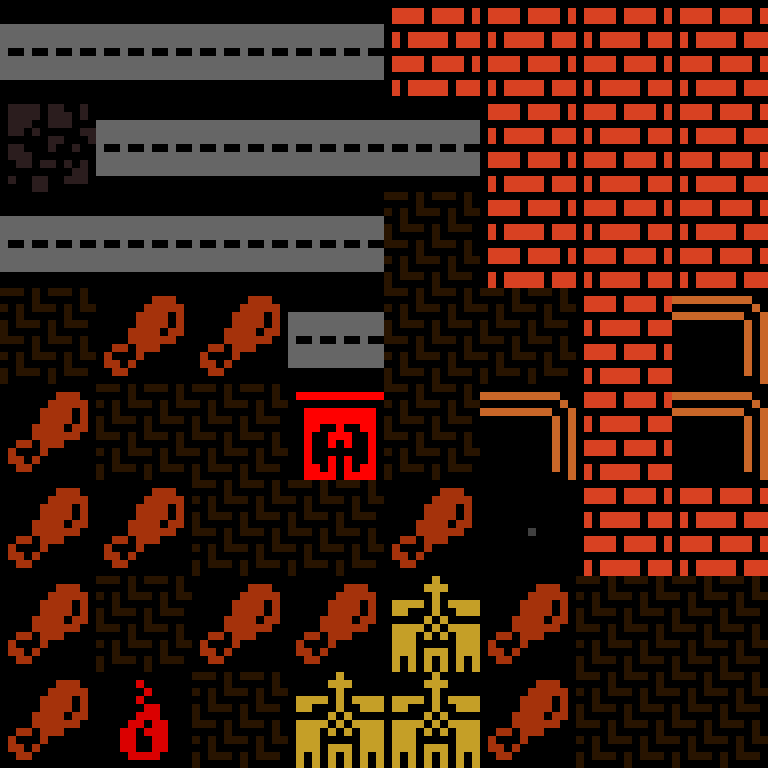

routes-market-clusteredmarket, clustered order, 8 by 8 cells · 20 of 38

next ›

‹ previous

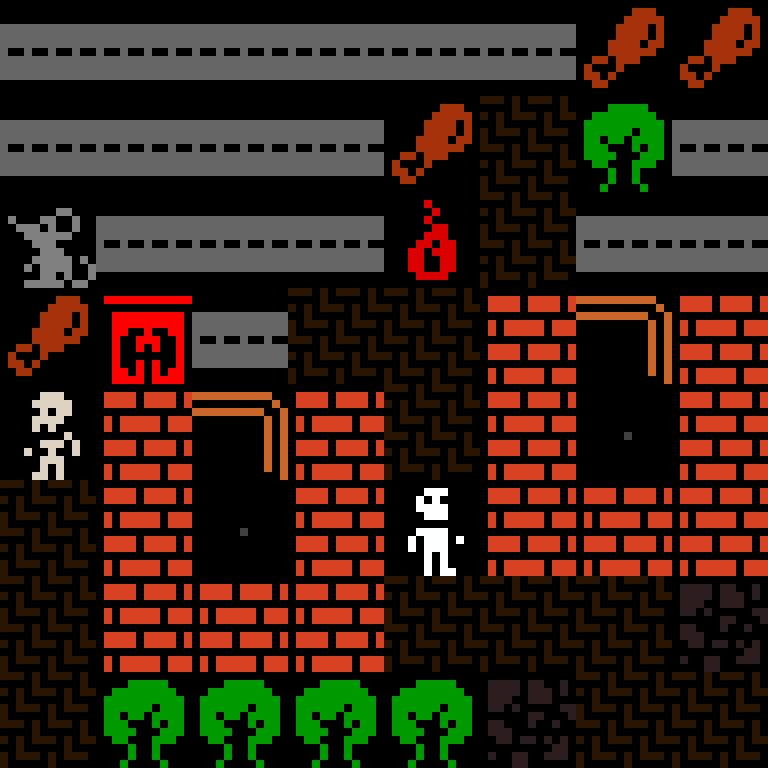

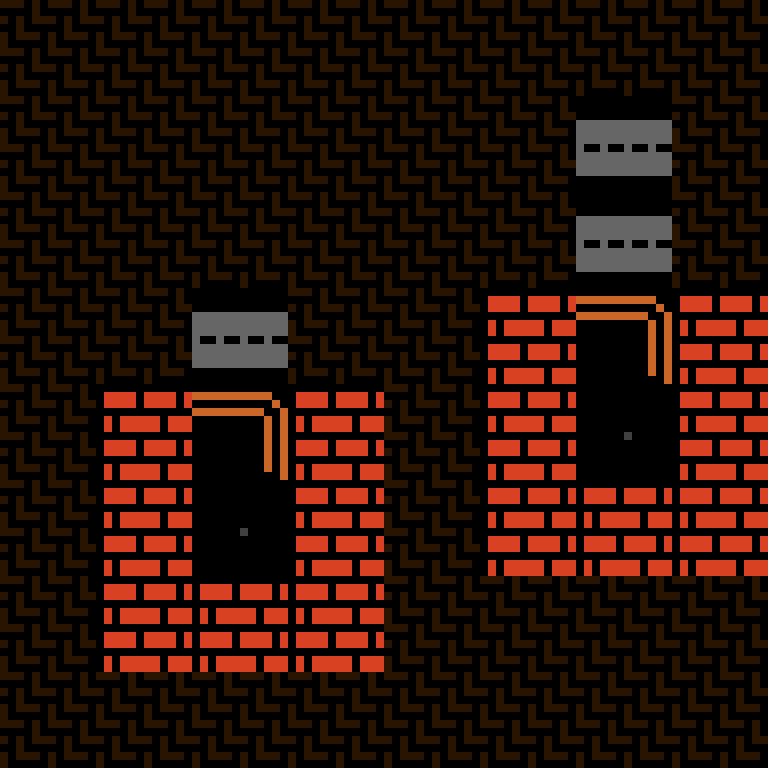

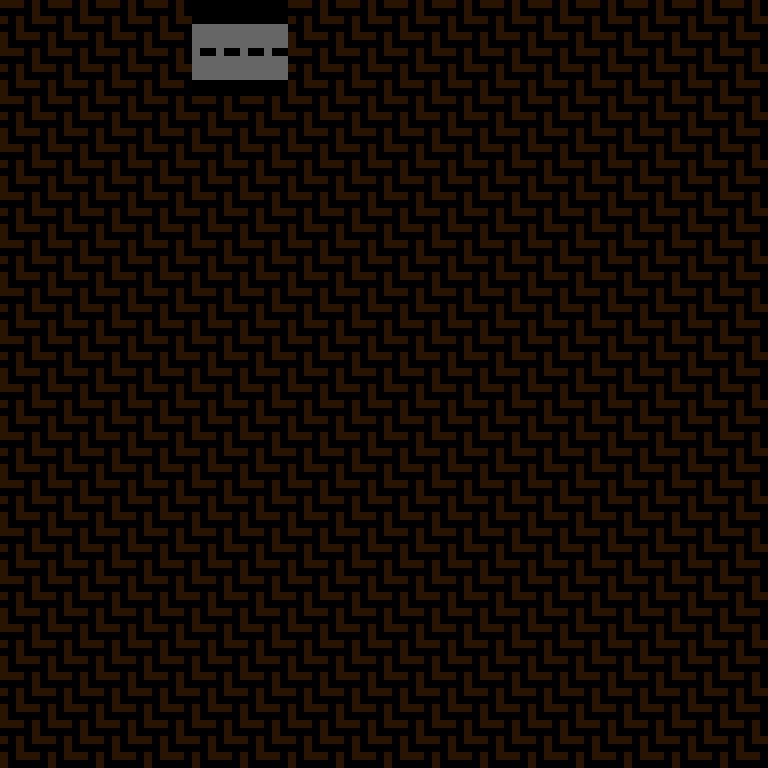

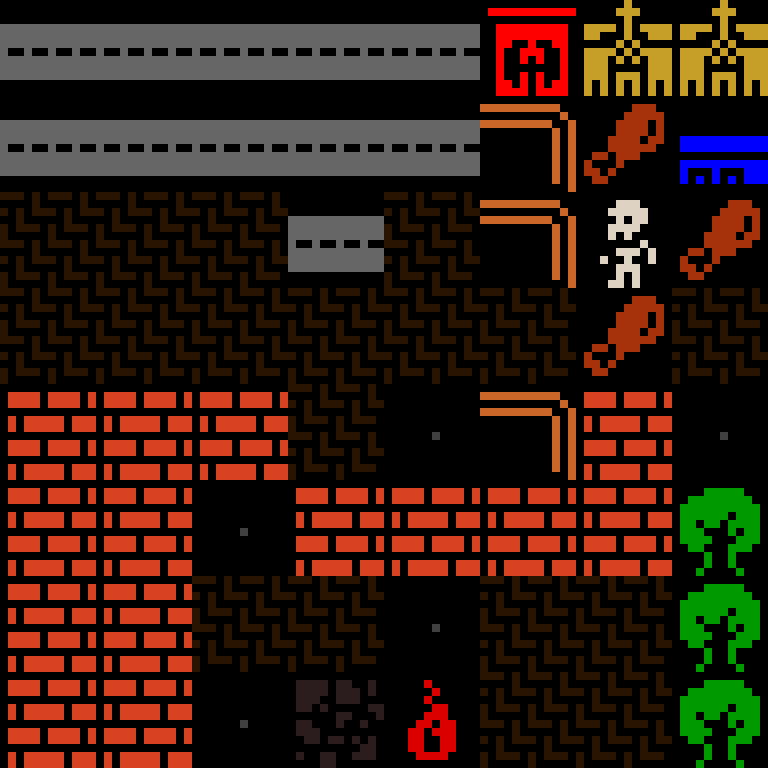

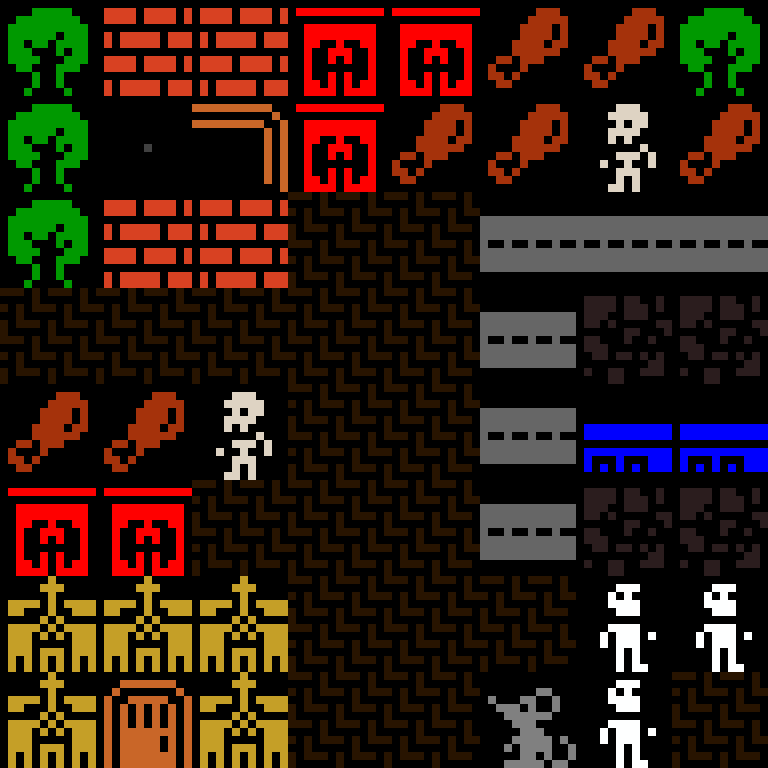

coherence-market-frontiermarket, frontier order, 8 by 8 cells · 21 of 38

next ›

‹ previous

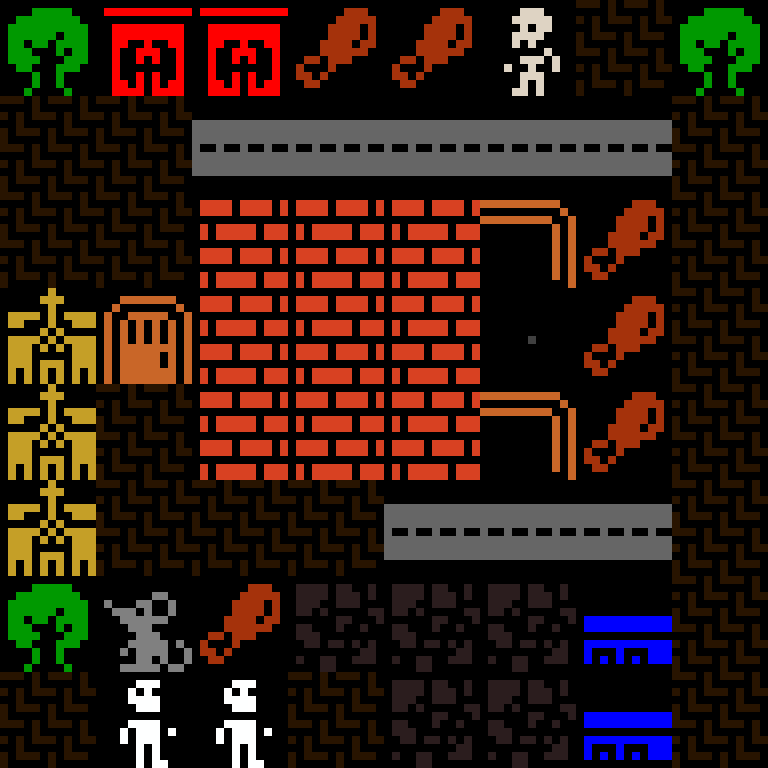

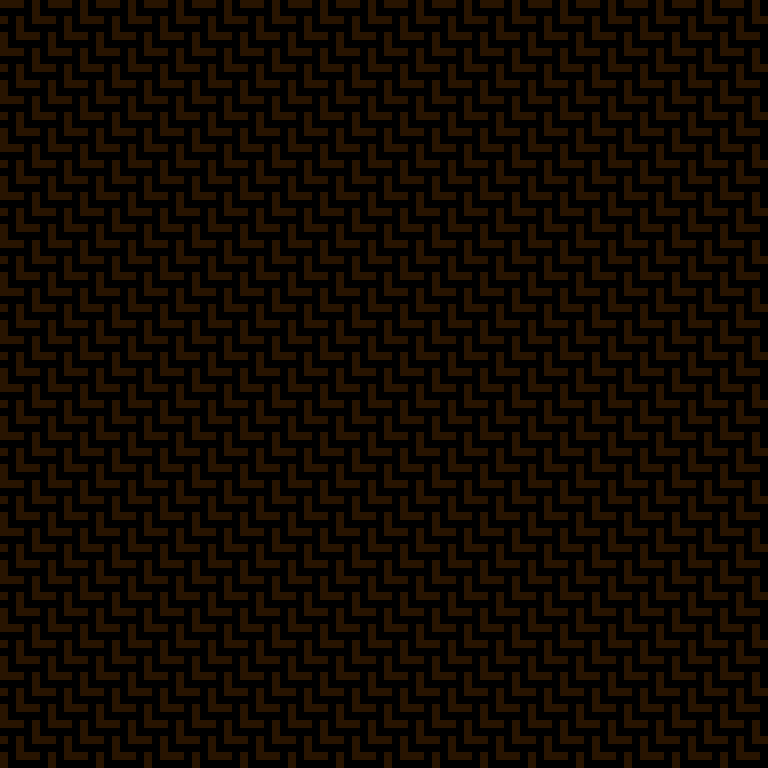

rules-market-frontiermarket, frontier order, 8 by 8 cells · 22 of 38

next ›

‹ previous

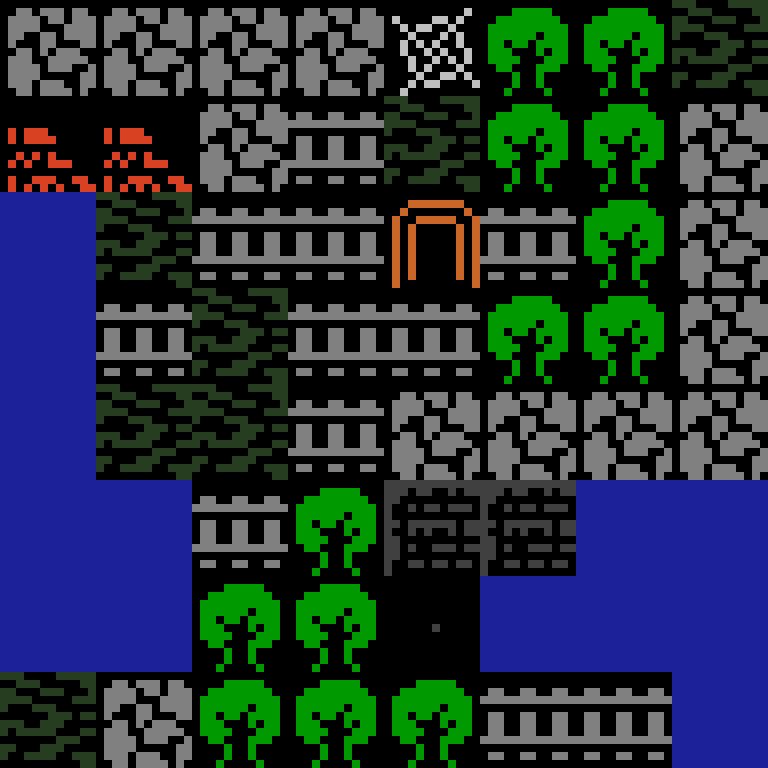

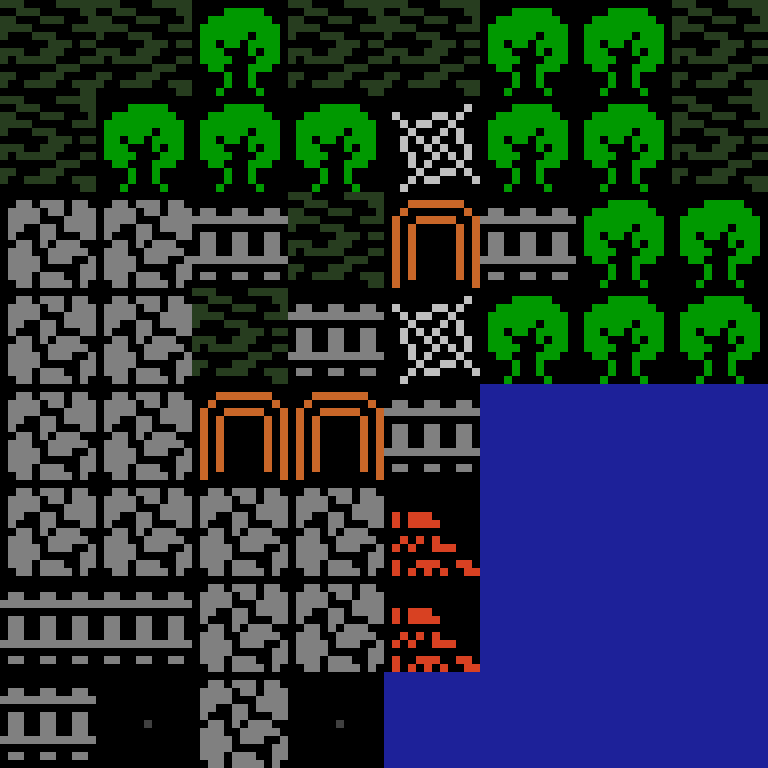

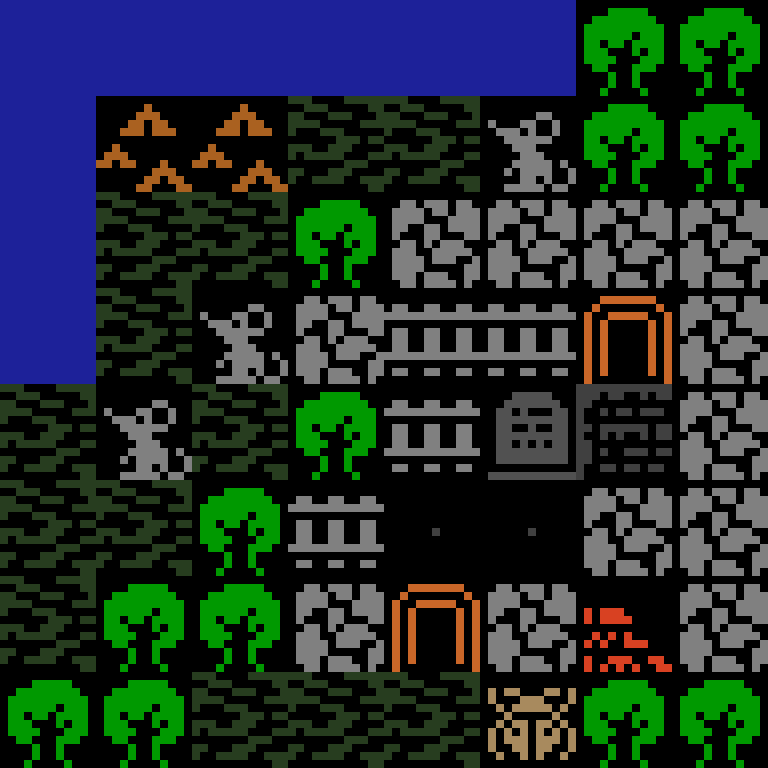

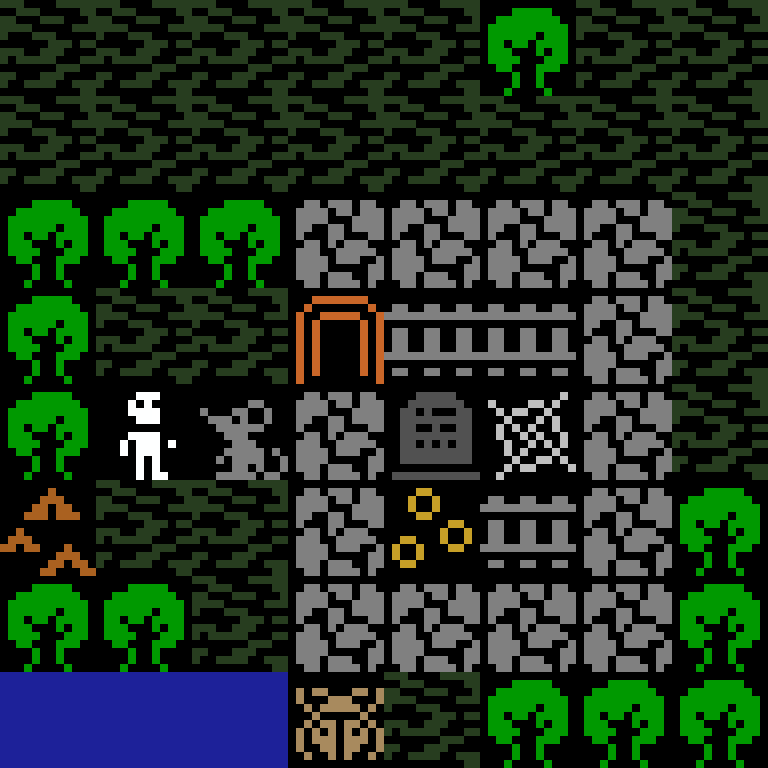

reach-jungle-clusteredjungle temple, clustered order, 8 by 8 cells · 23 of 38

next ›

‹ previous

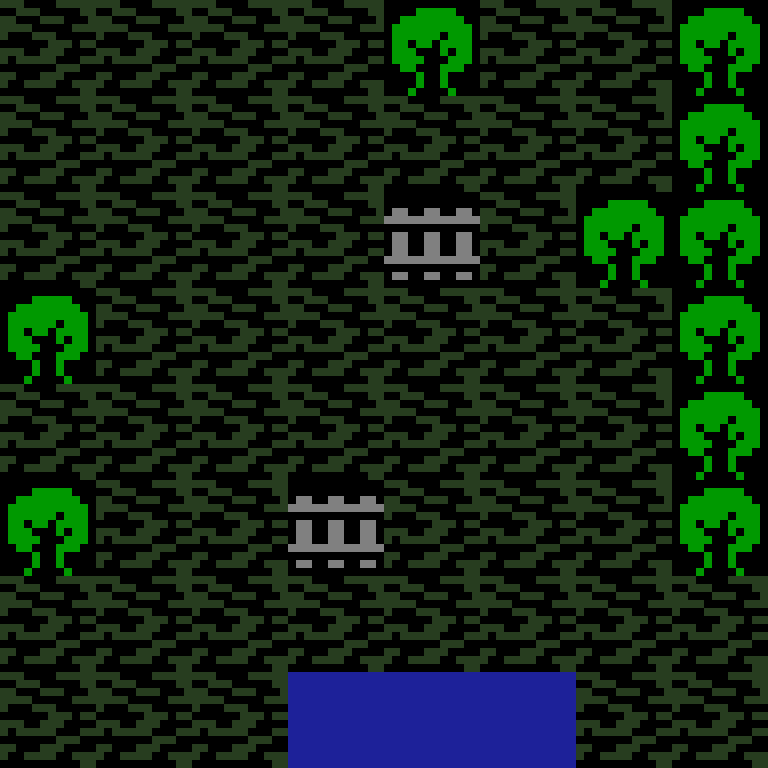

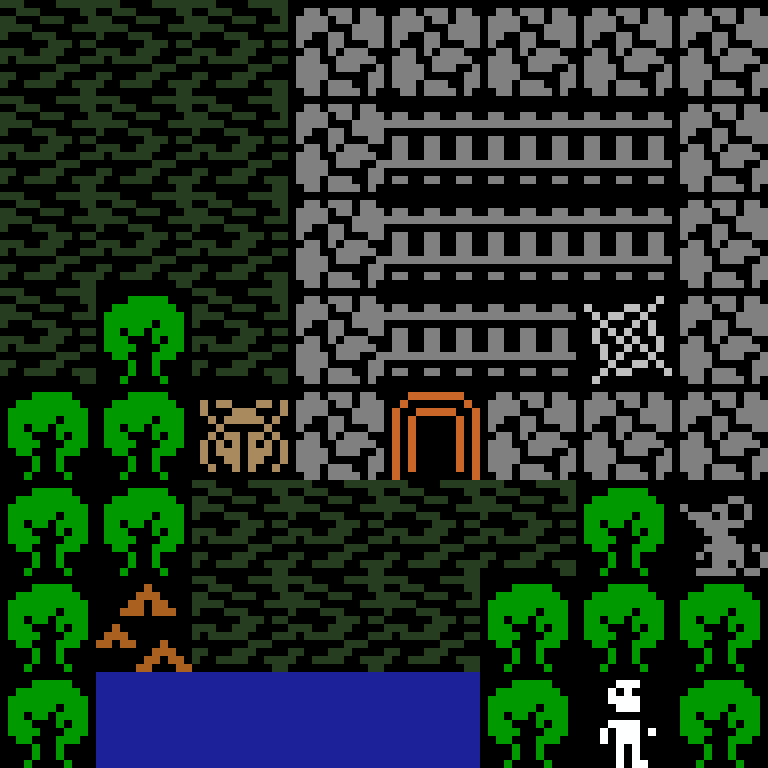

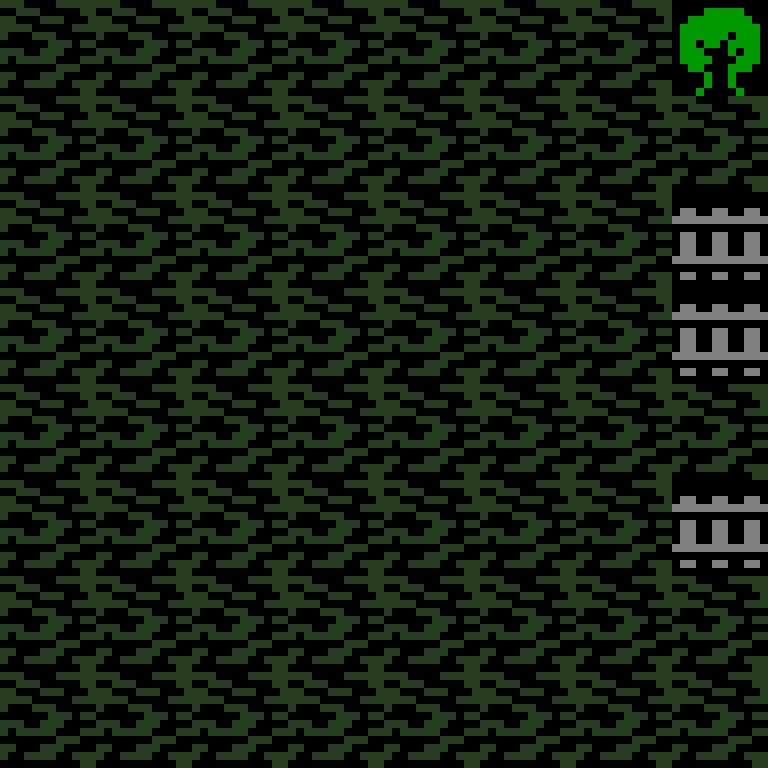

story-jungle-clusteredjungle temple, clustered order, 8 by 8 cells · 24 of 38

next ›

‹ previous

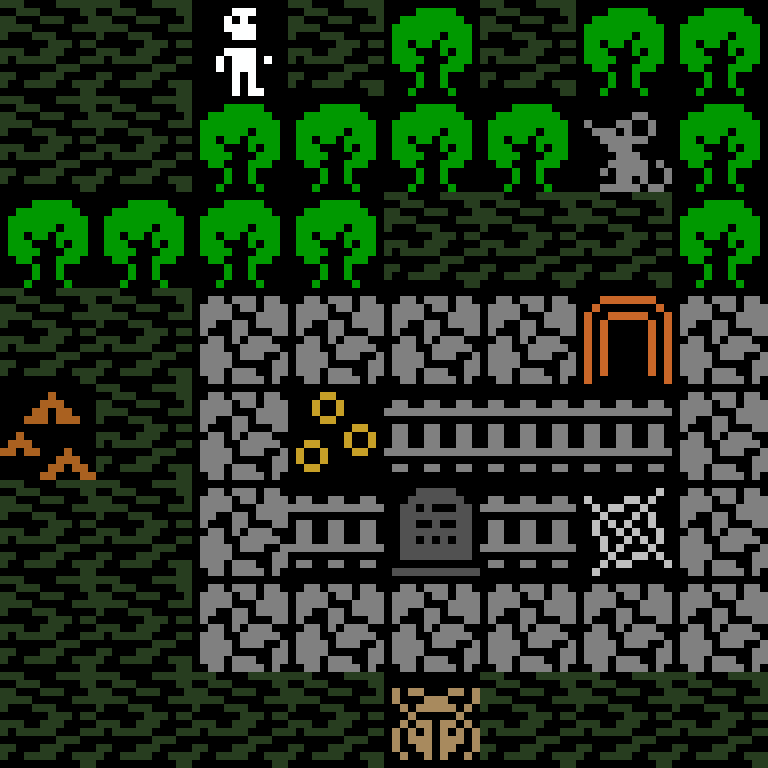

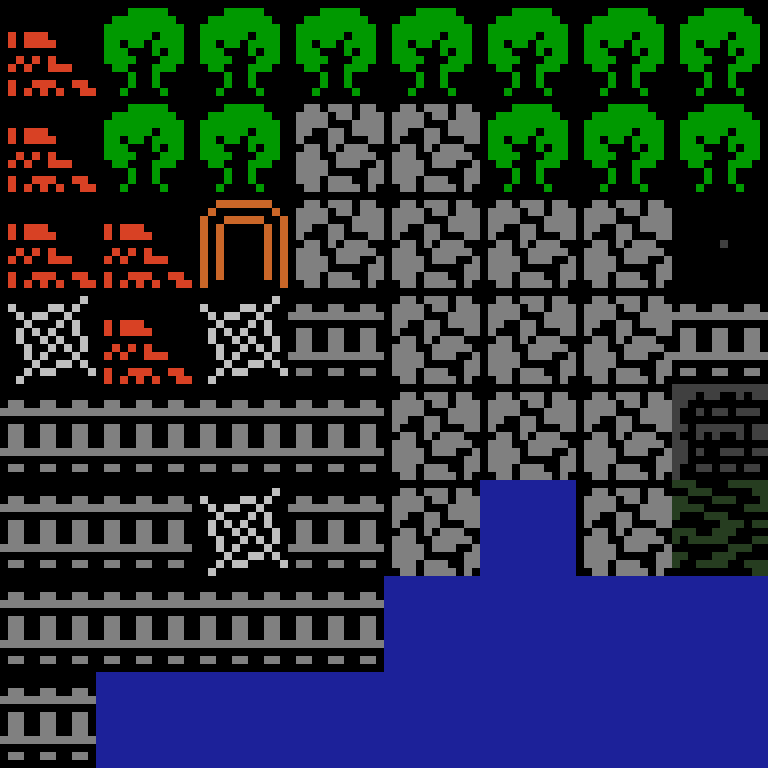

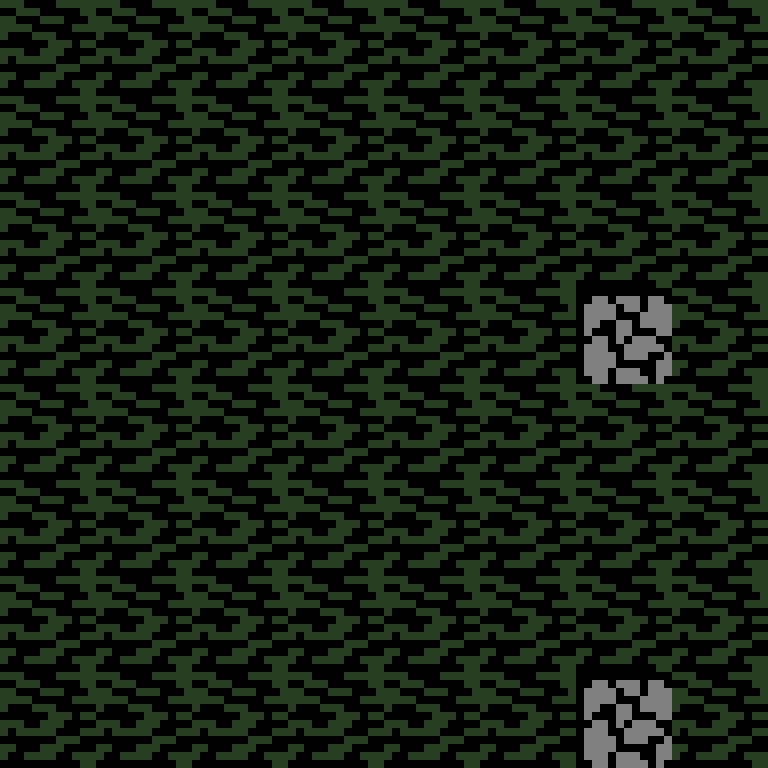

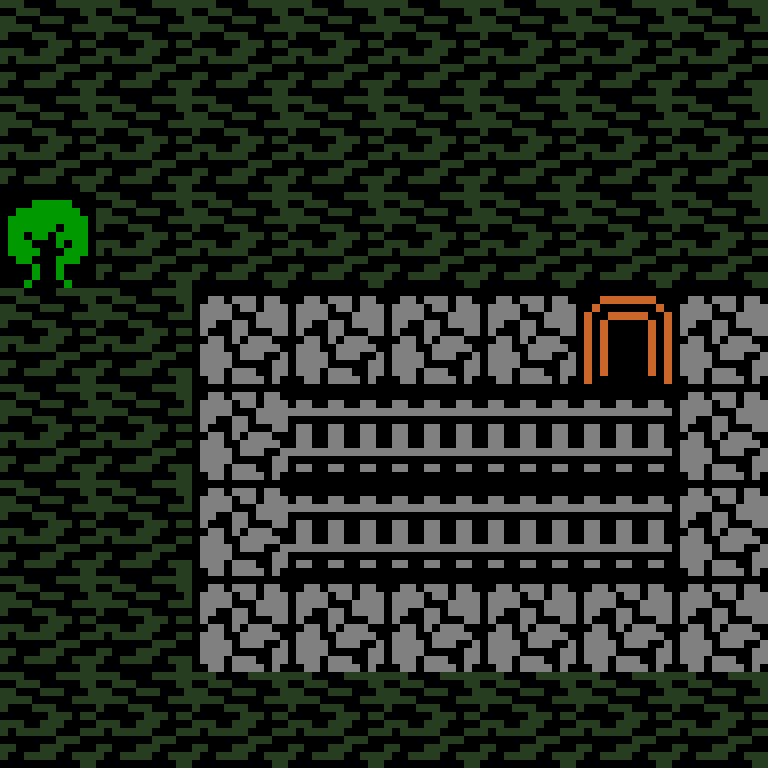

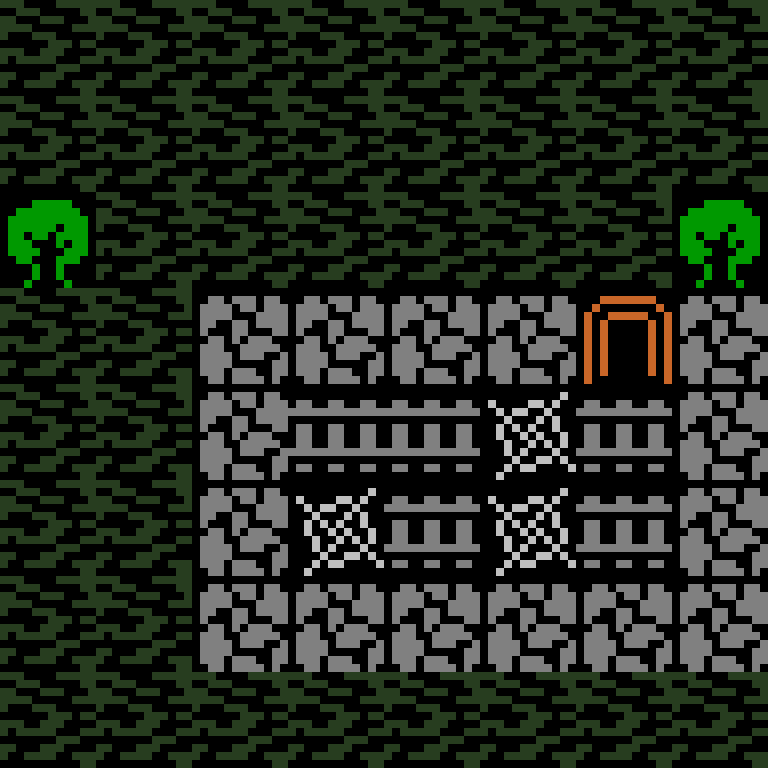

paths-jungle-frontierjungle temple, frontier order, 8 by 8 cells · 25 of 38

next ›

‹ previous

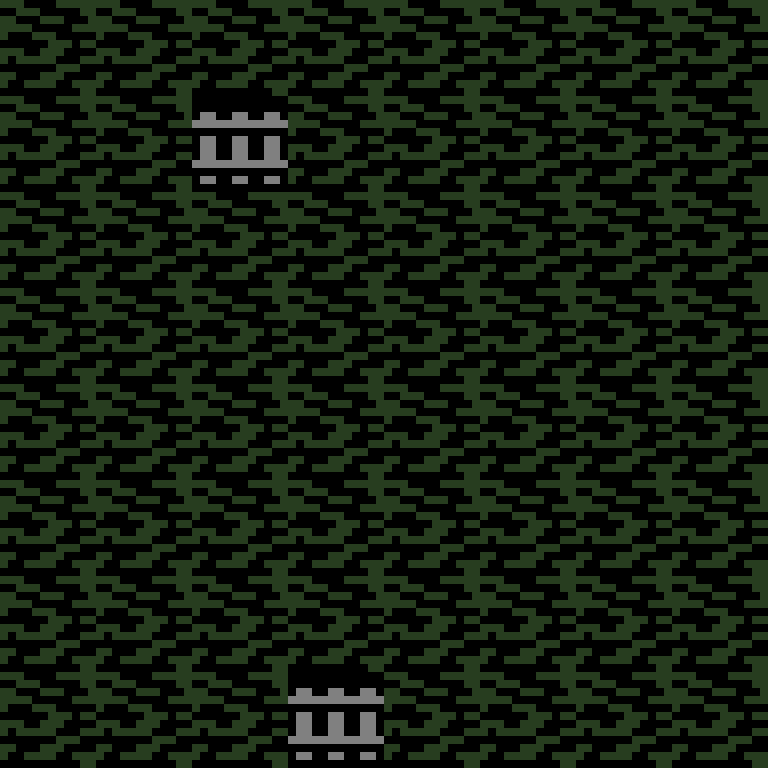

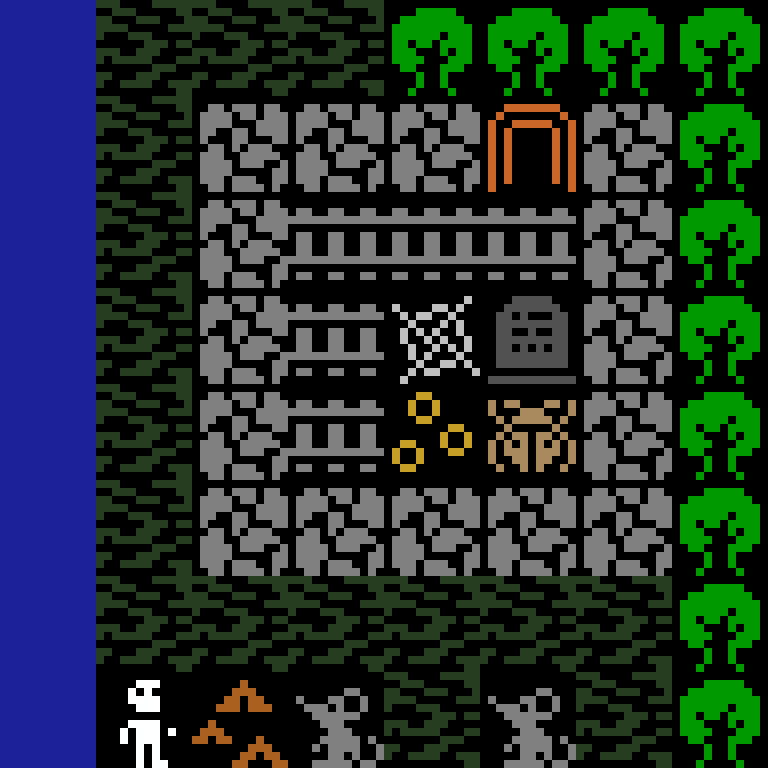

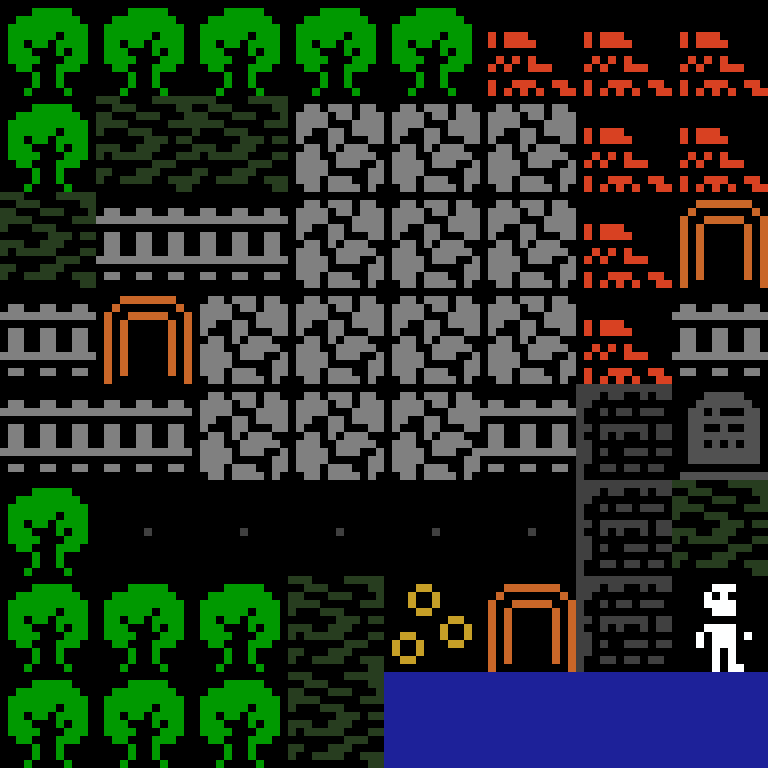

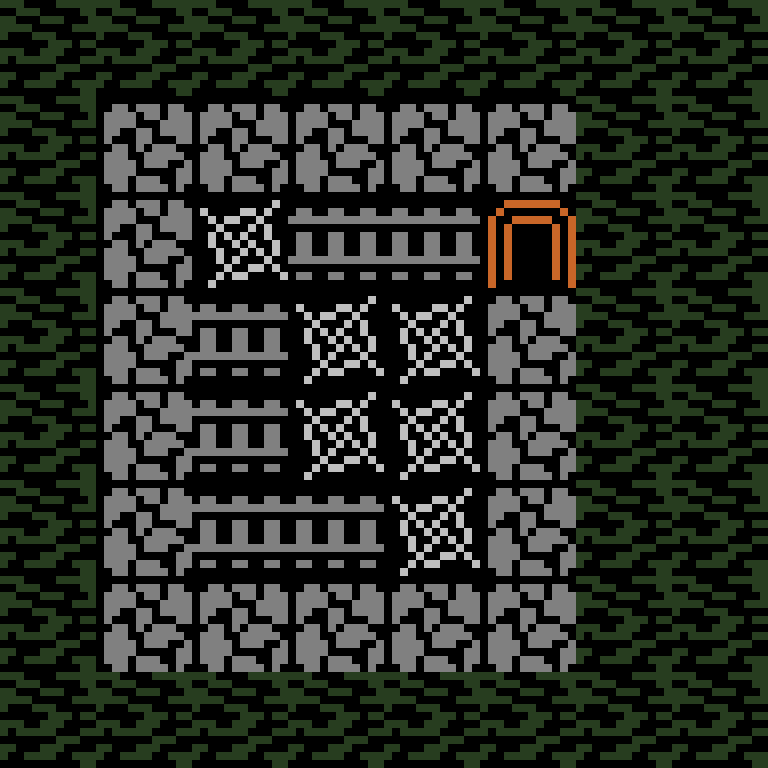

rules-jungle-spiraljungle temple, spiral order, 8 by 8 cells · 26 of 38

next ›

‹ previous

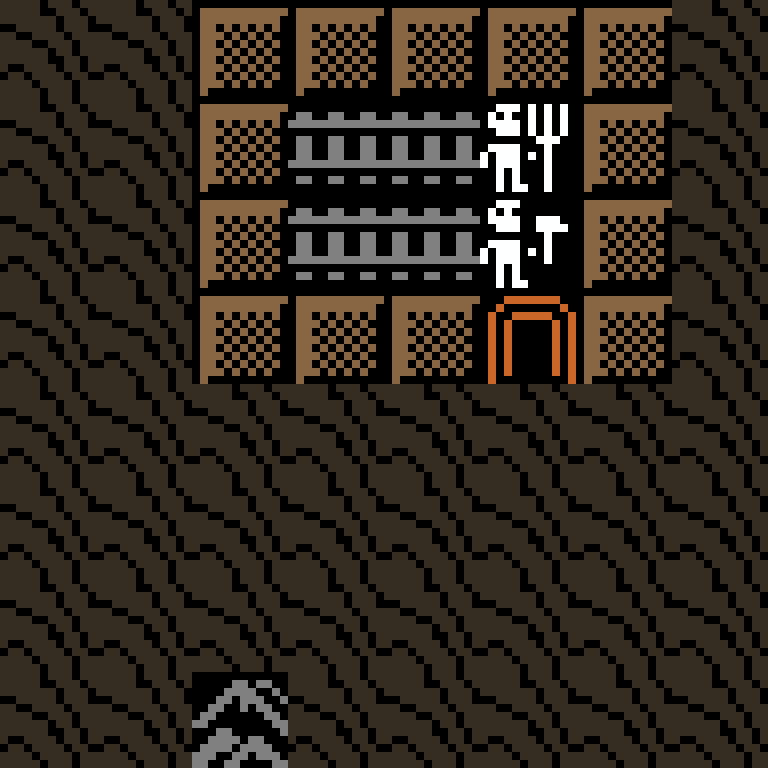

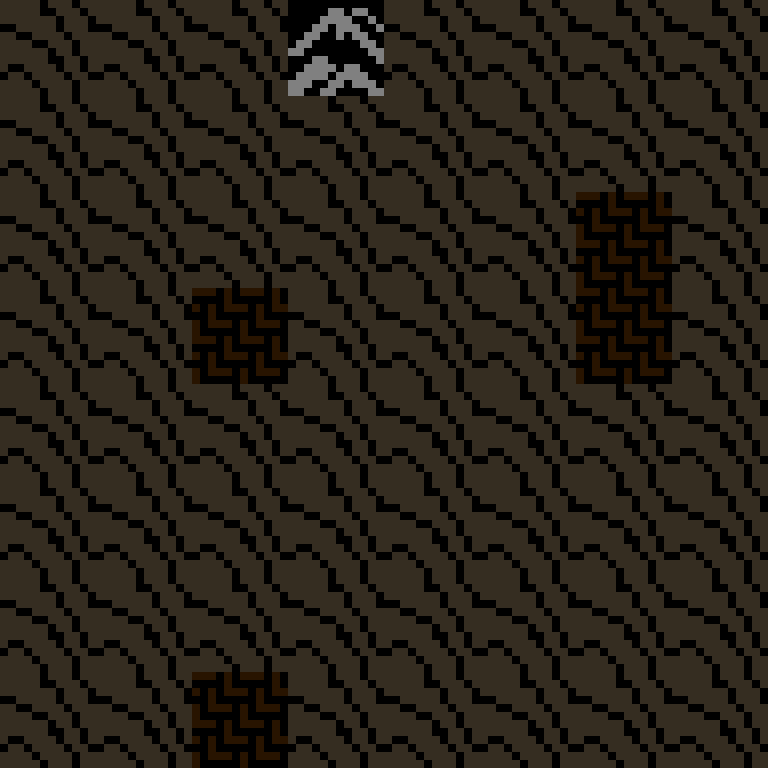

rules-desert-branchingdesert outpost, branching order, 8 by 8 cells · 27 of 38

next ›

‹ previous

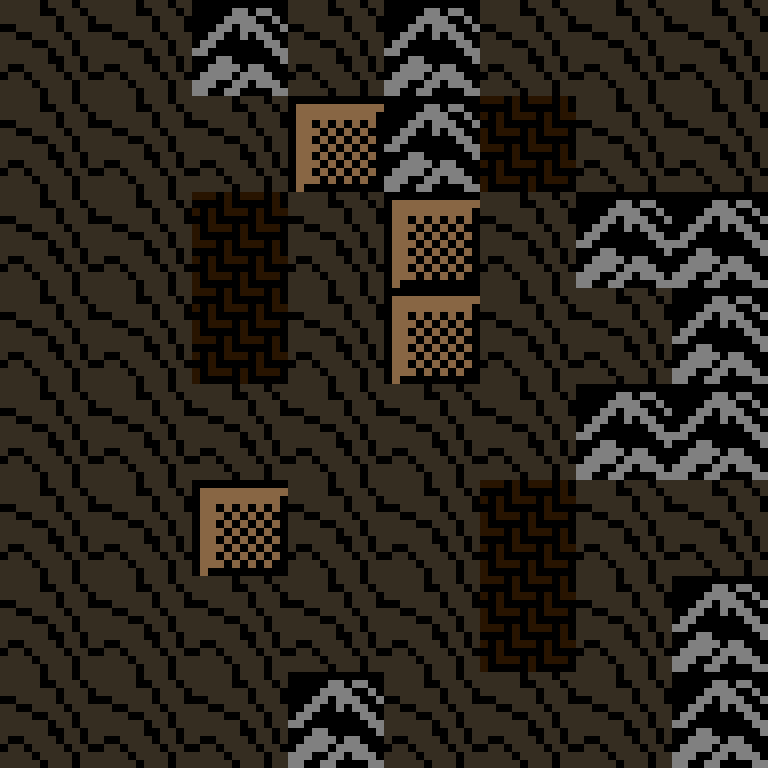

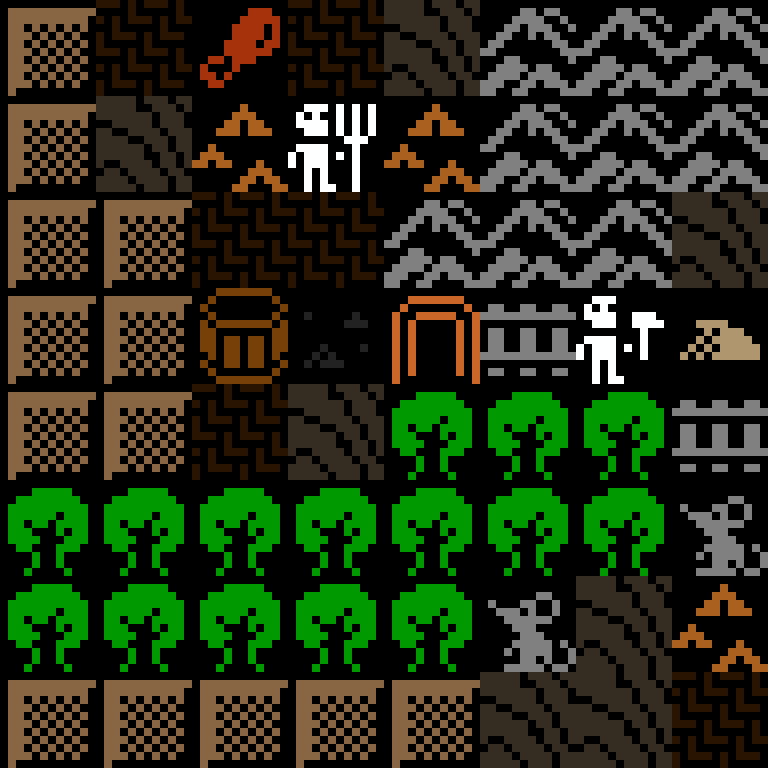

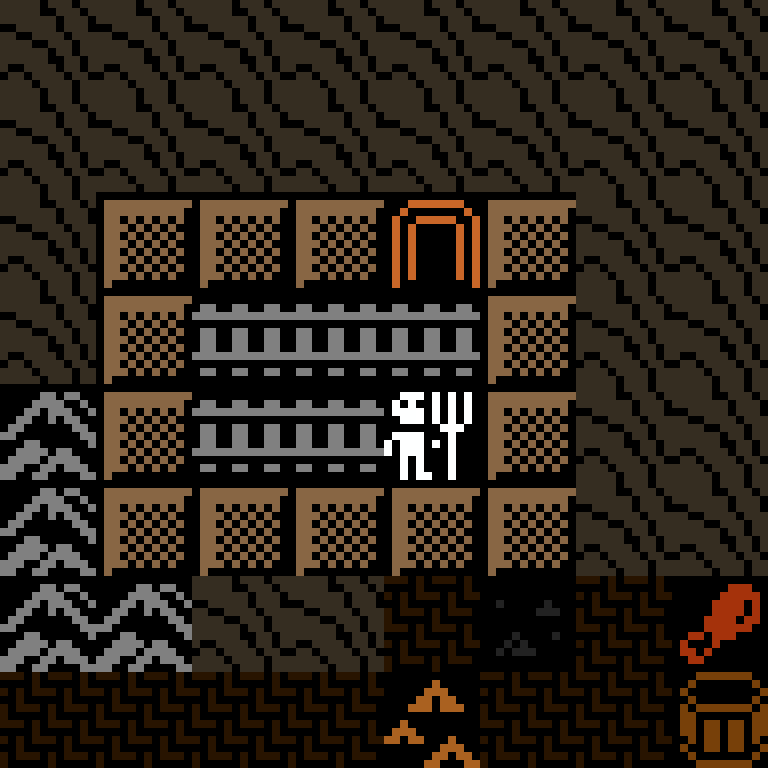

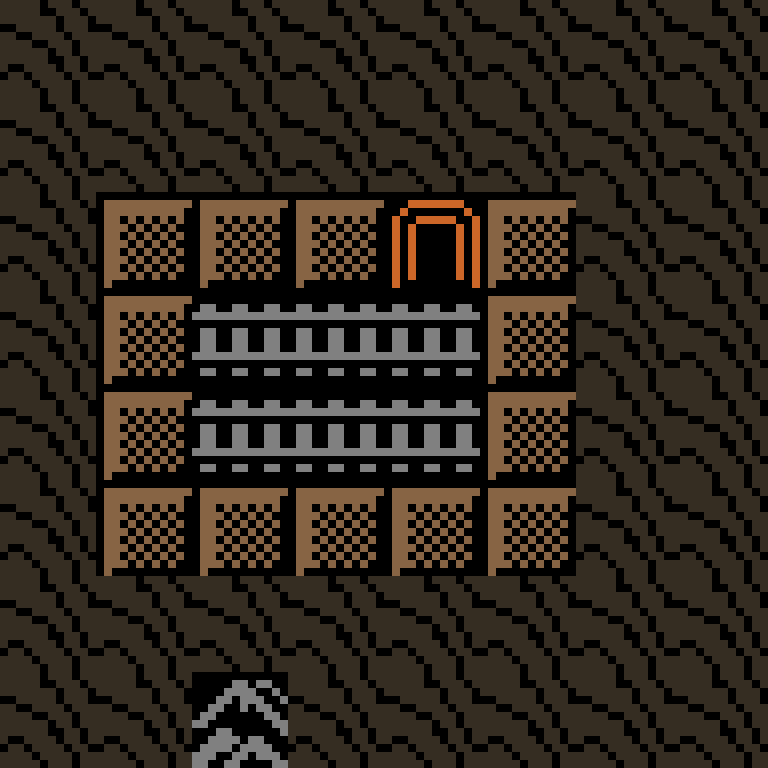

reach-desert-frontierdesert outpost, frontier order, 8 by 8 cells · 28 of 38

next ›

‹ previous

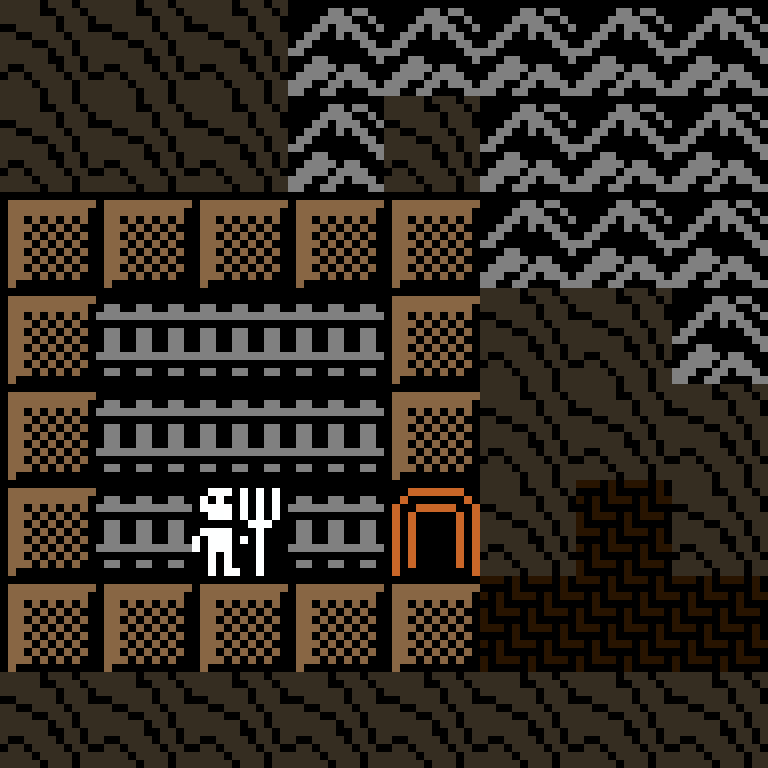

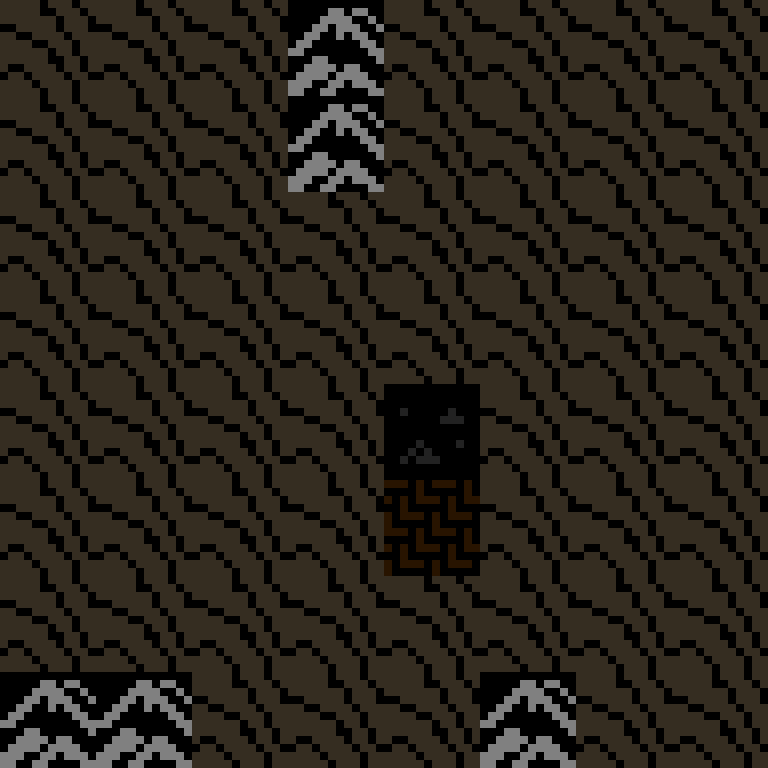

story-desert-frontierdesert outpost, frontier order, 8 by 8 cells · 29 of 38

next ›

‹ previous

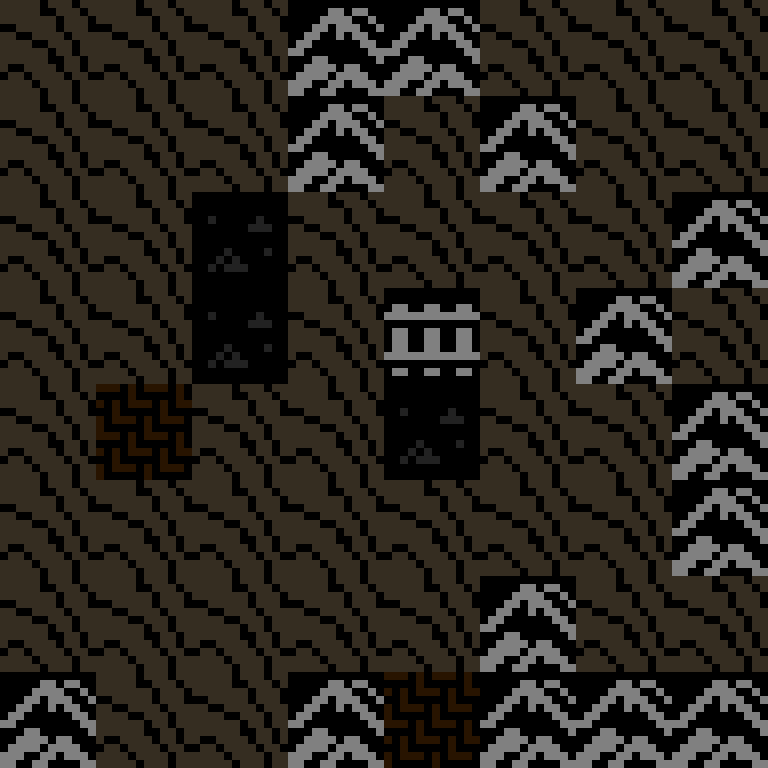

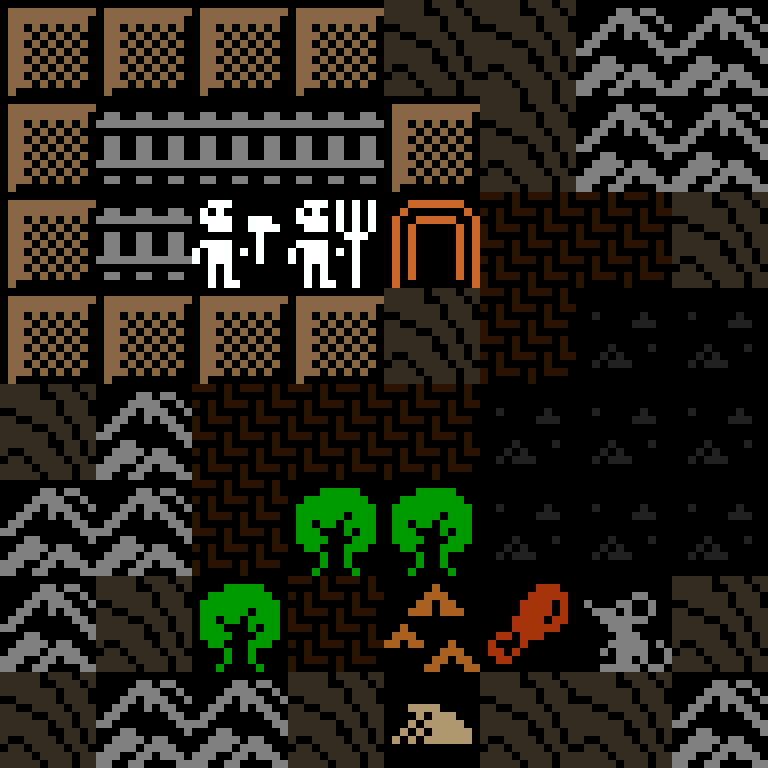

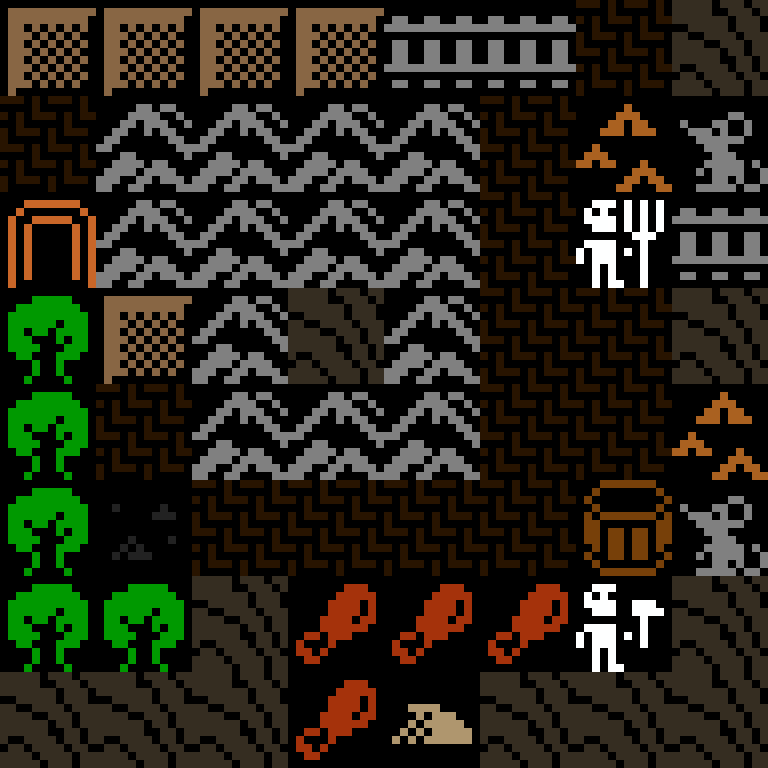

coherence-desert-spiraldesert outpost, spiral order, 8 by 8 cells · 30 of 38

next ›

‹ previous

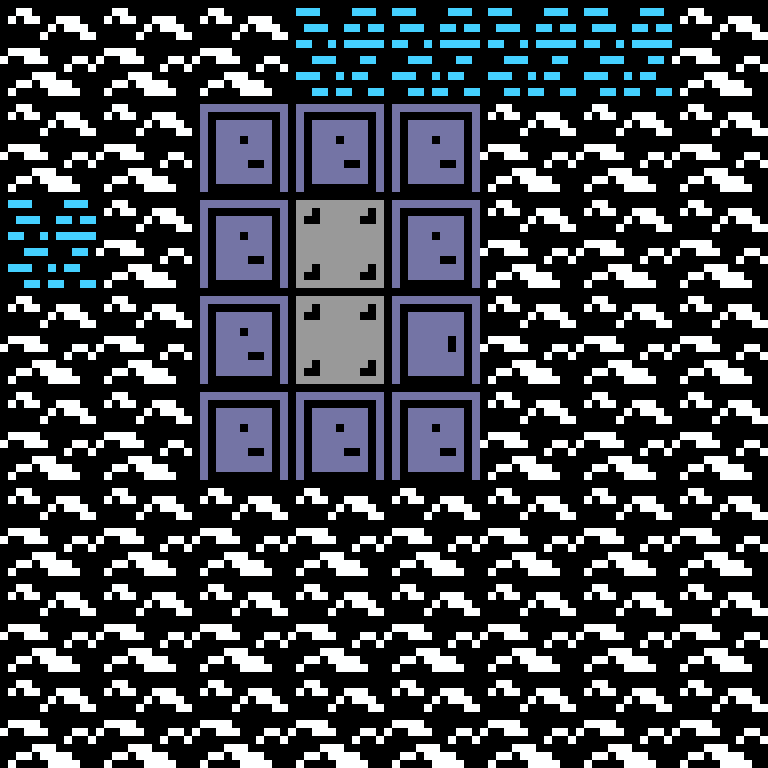

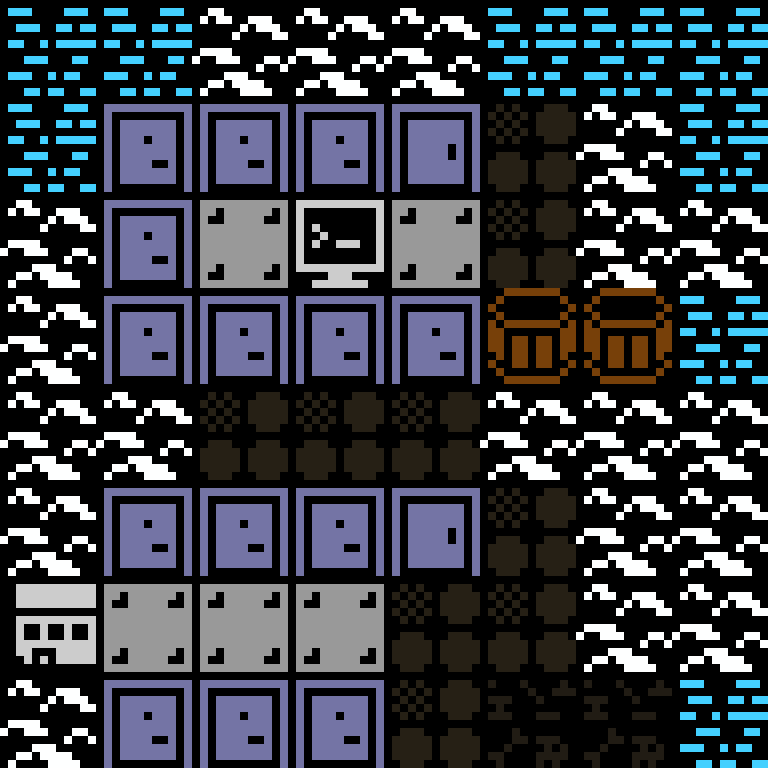

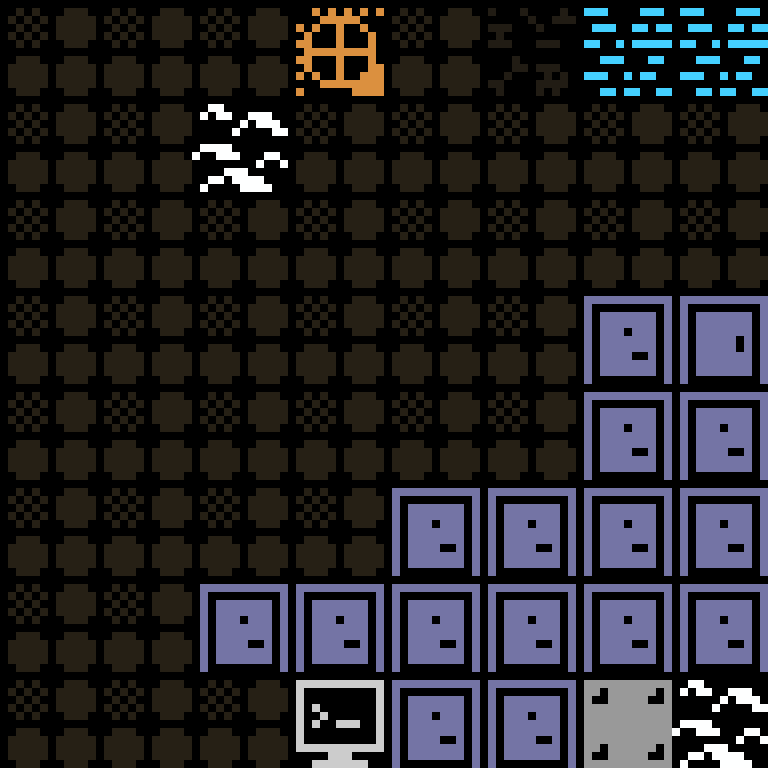

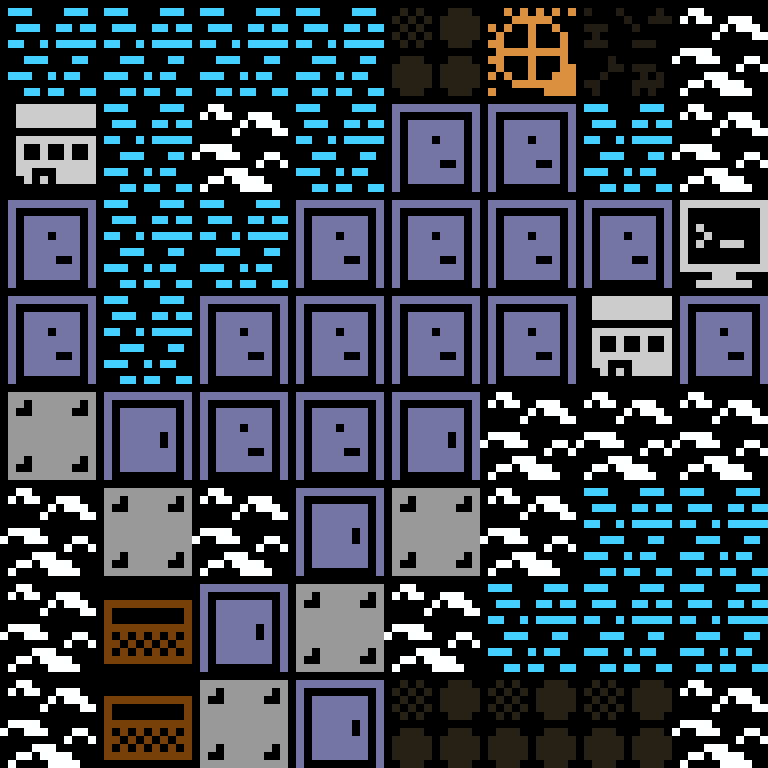

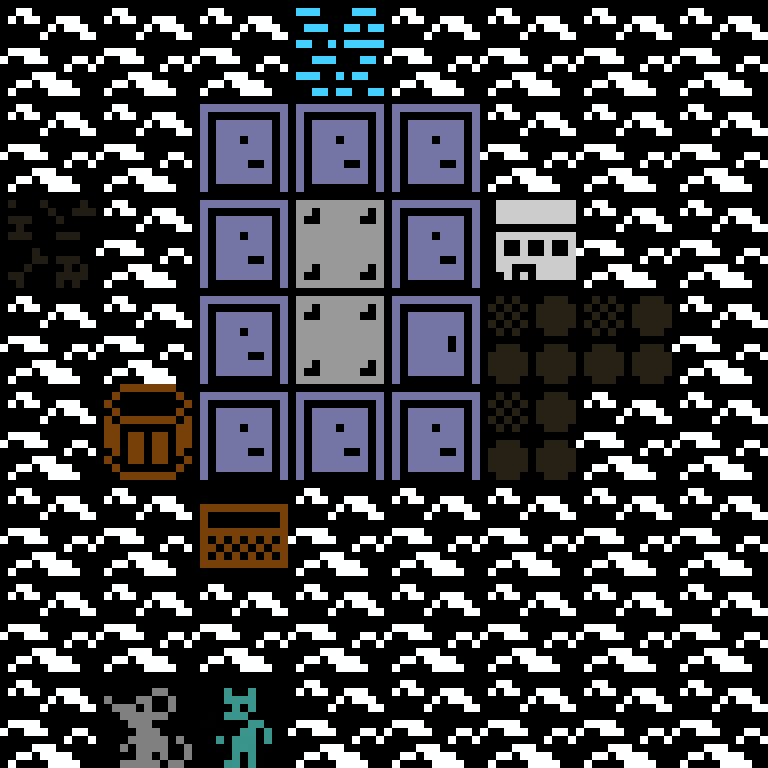

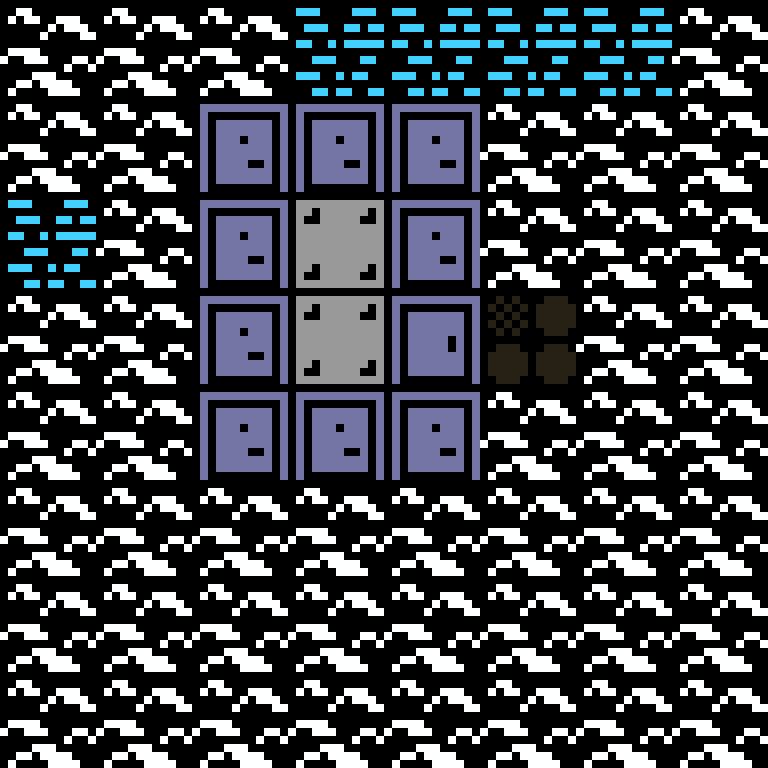

structures-arctic-clusteredarctic base, clustered order, 8 by 8 cells · 31 of 38

next ›

‹ previous

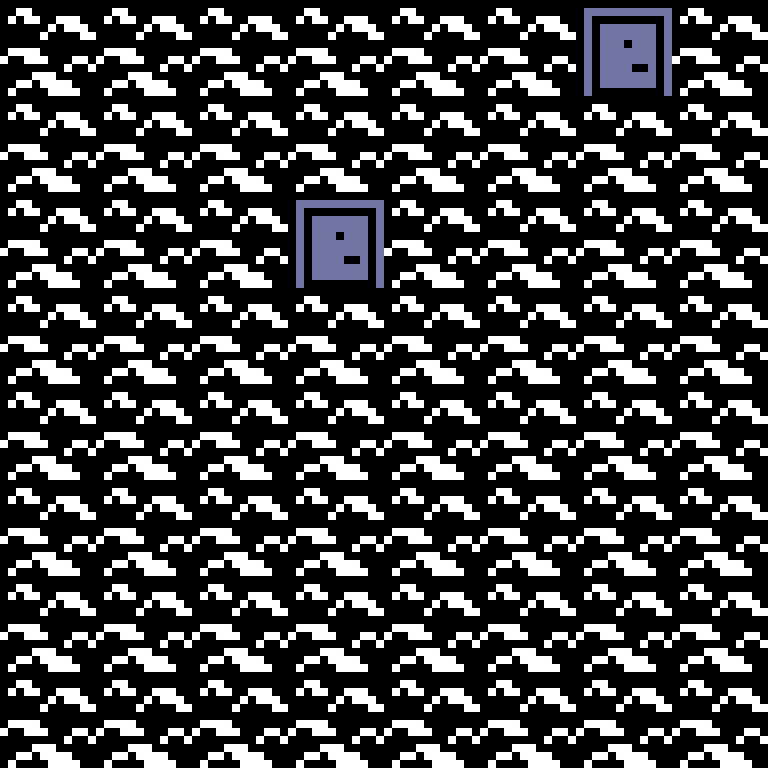

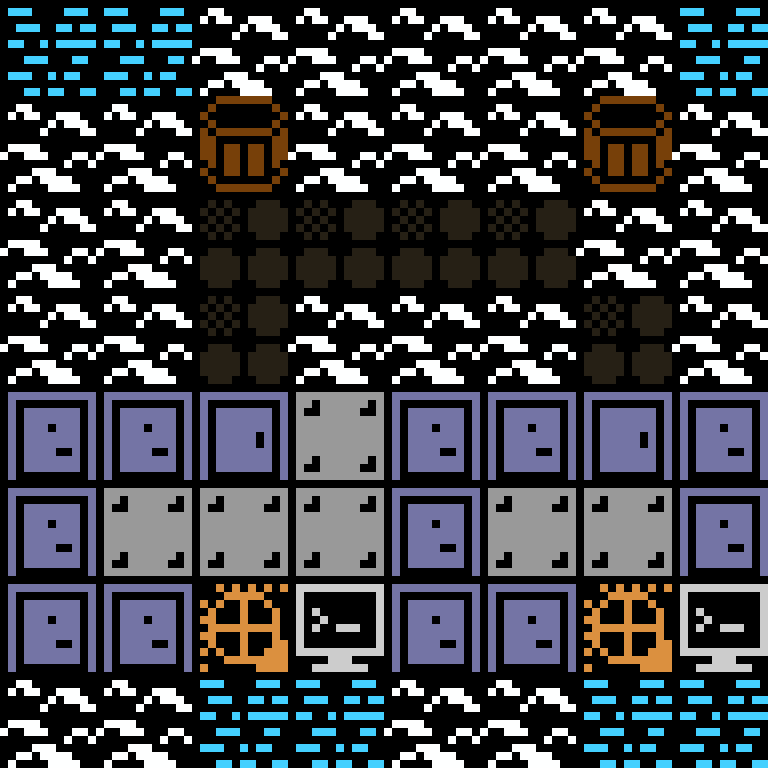

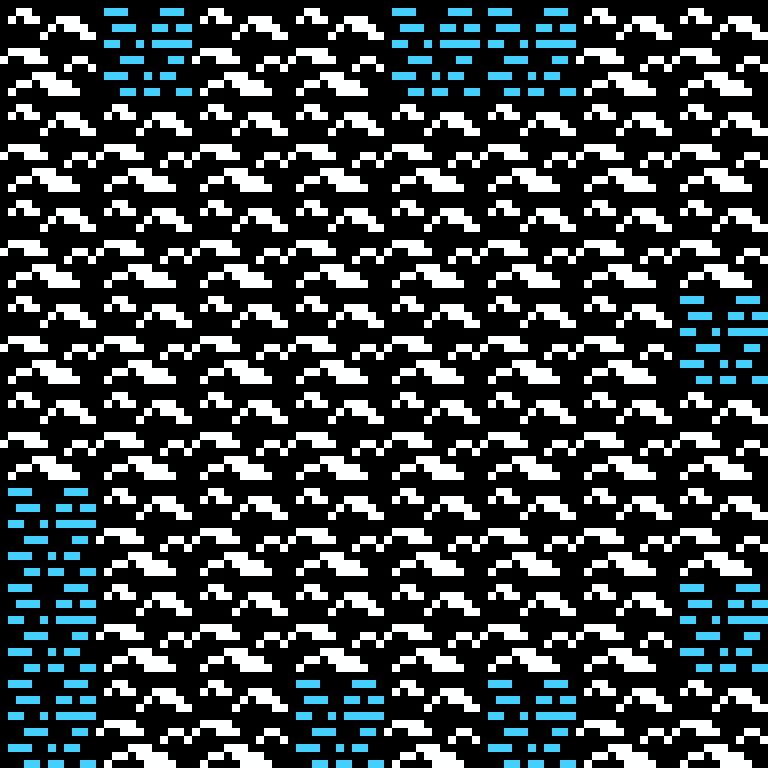

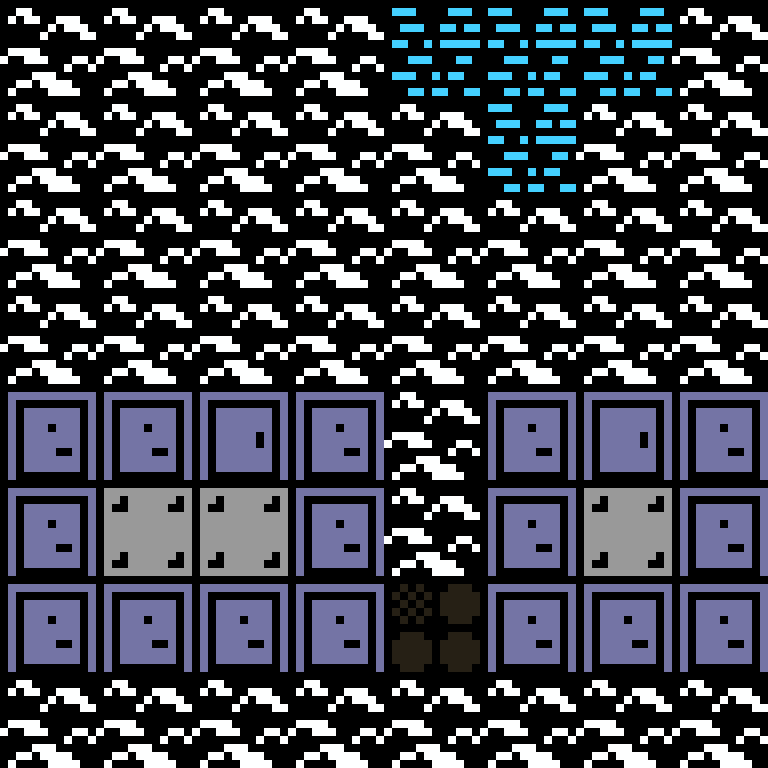

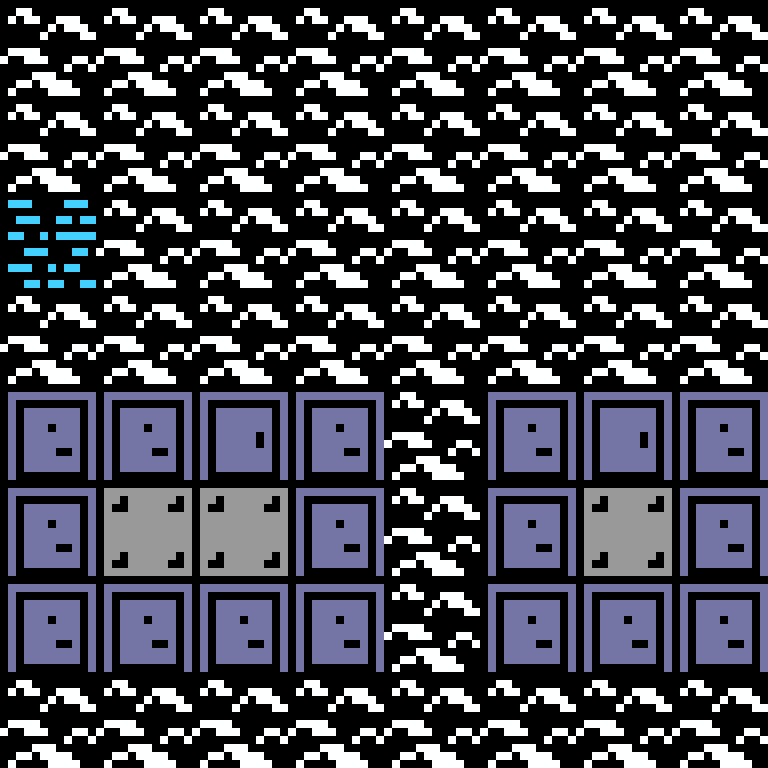

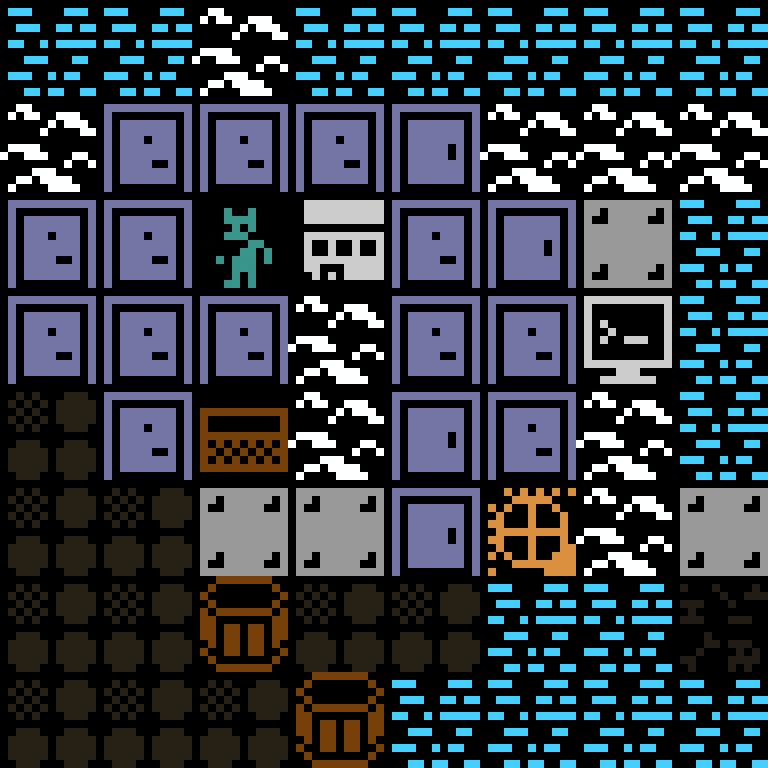

coherence-arctic-frontierarctic base, frontier order, 8 by 8 cells · 32 of 38

next ›

‹ previous

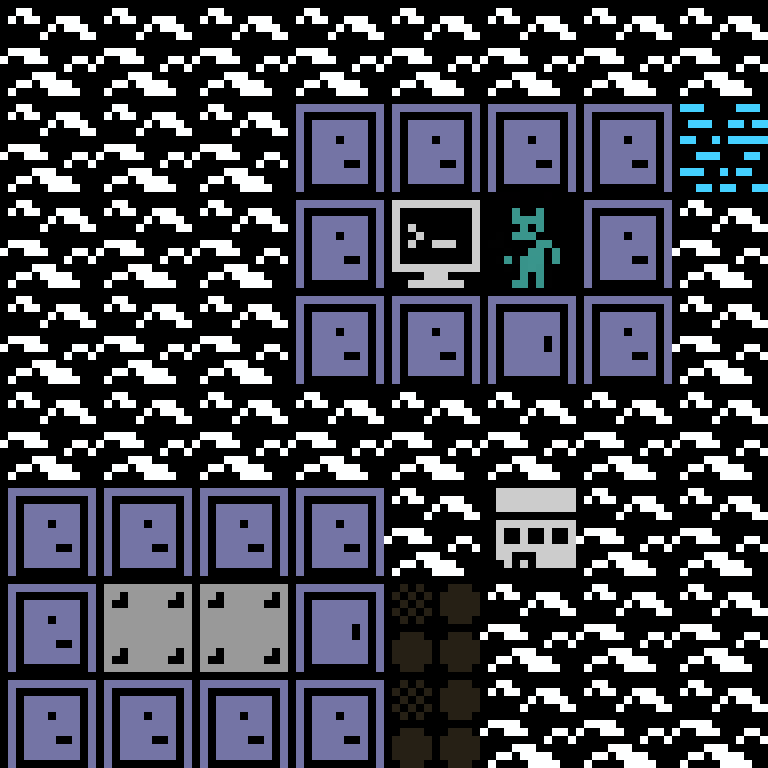

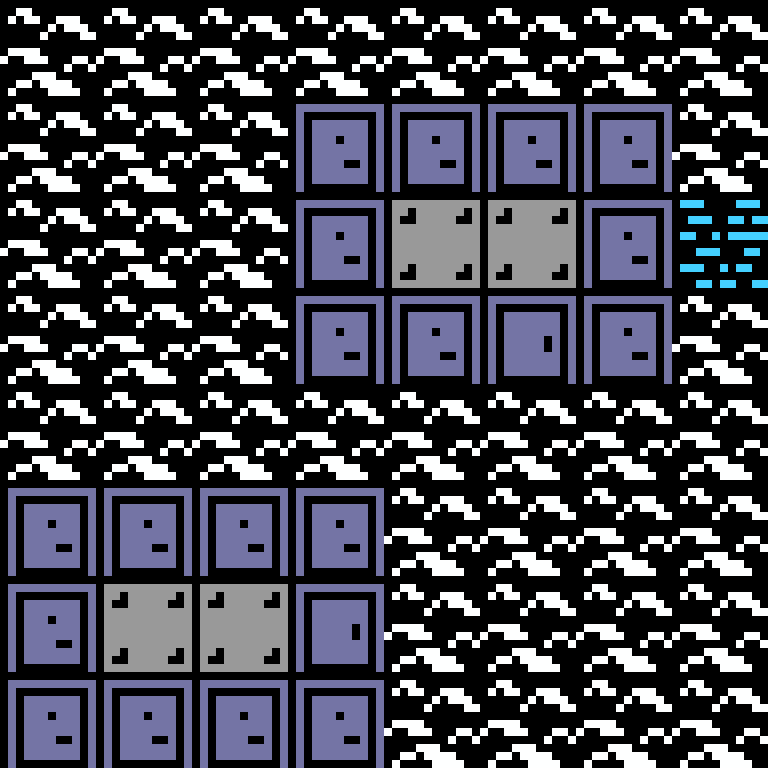

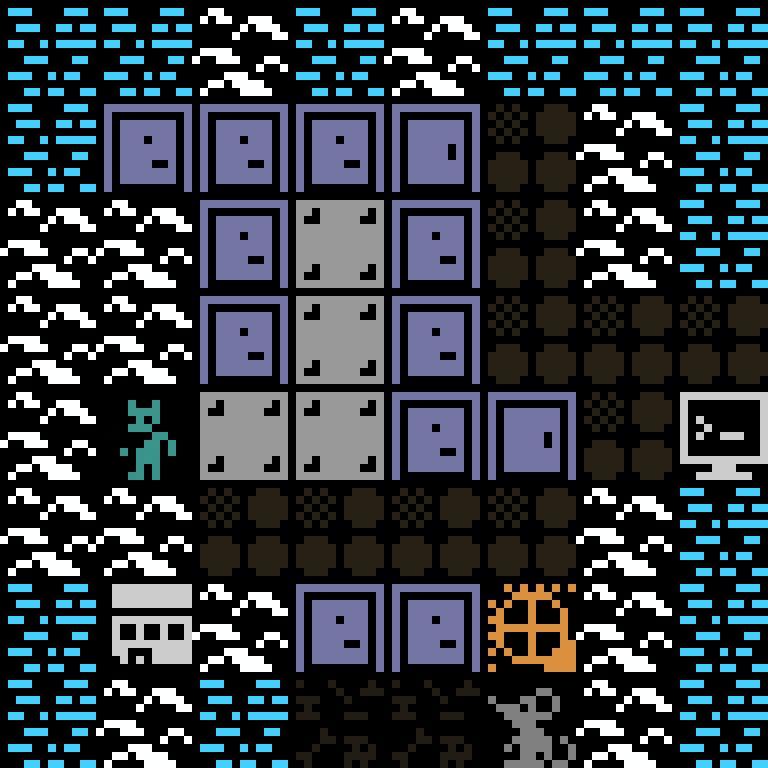

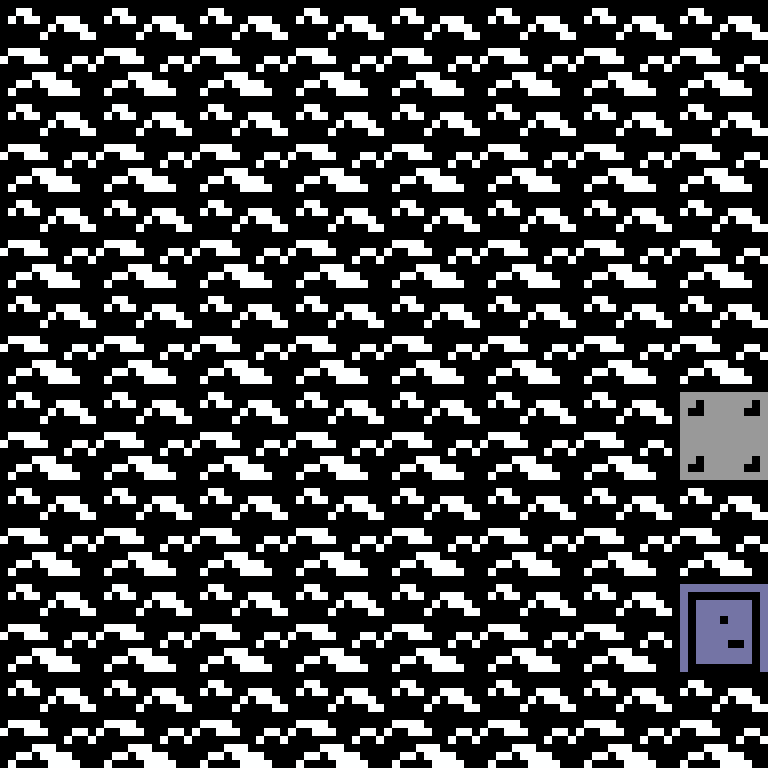

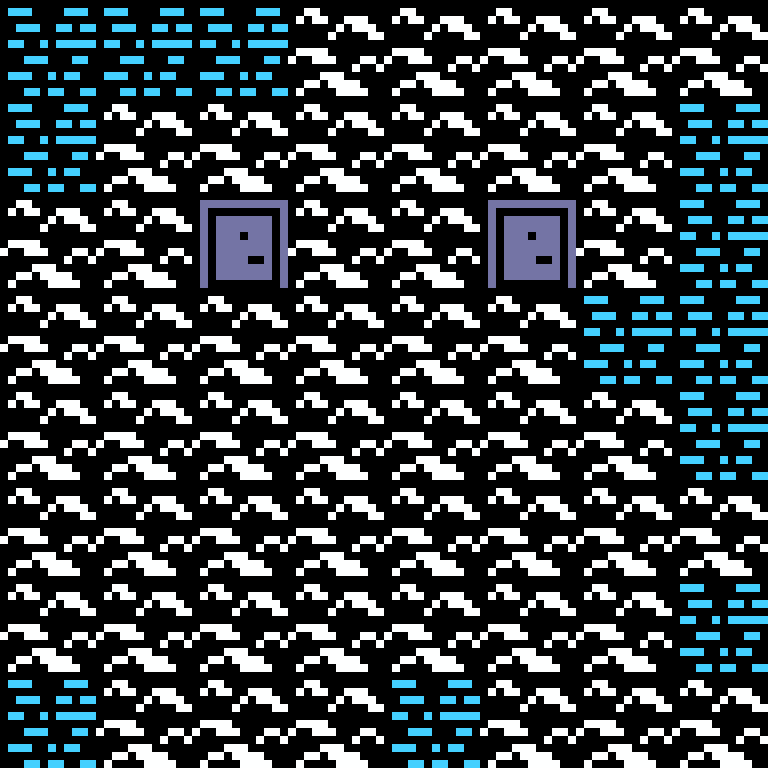

reach-arctic-randomarctic base, random order, 8 by 8 cells · 33 of 38

next ›

‹ previous

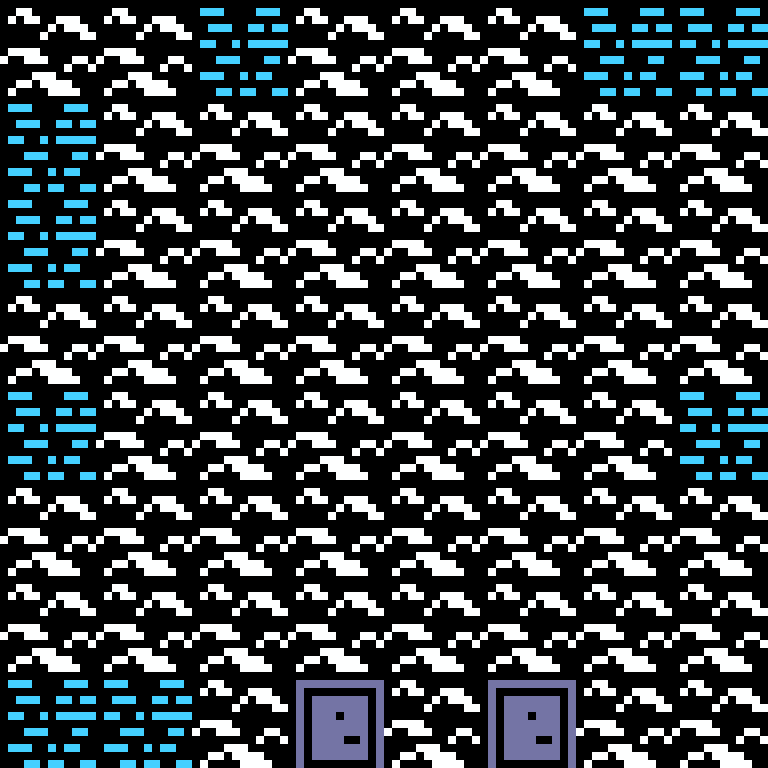

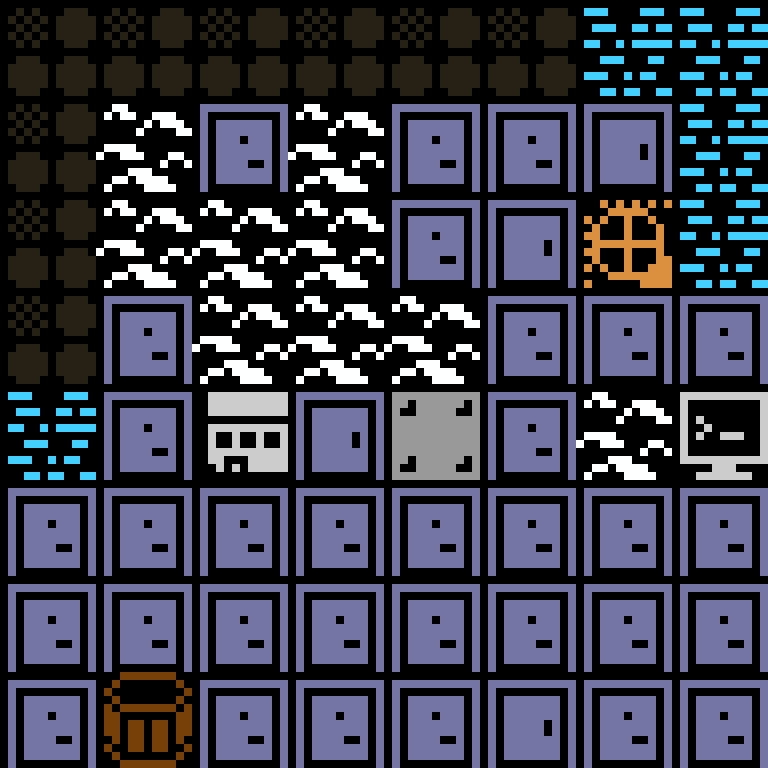

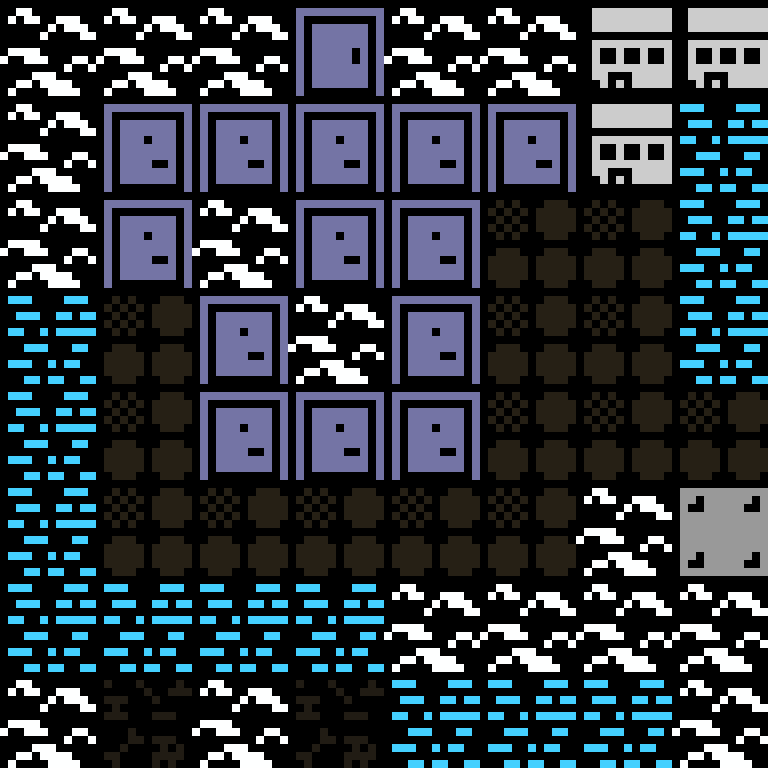

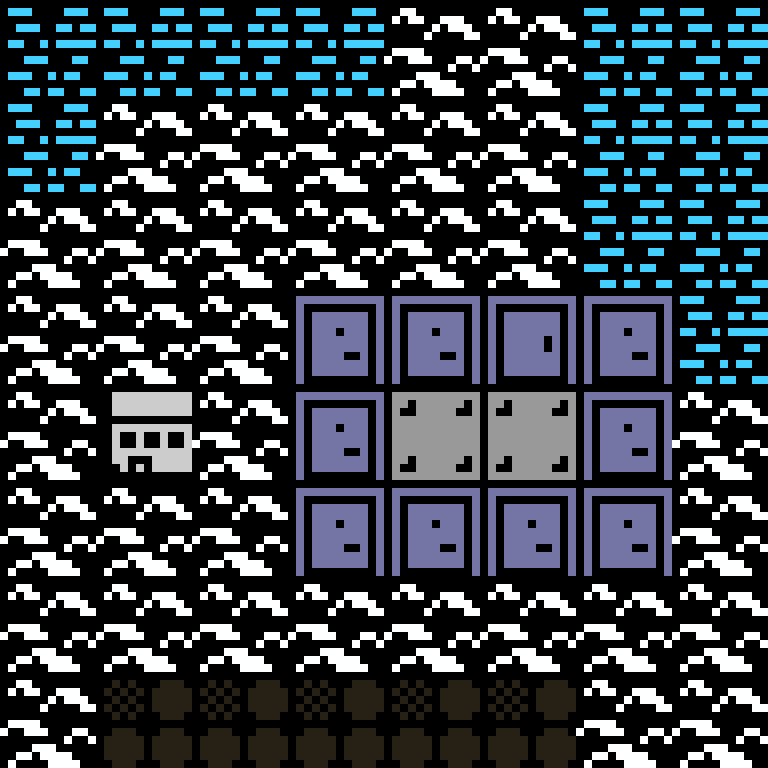

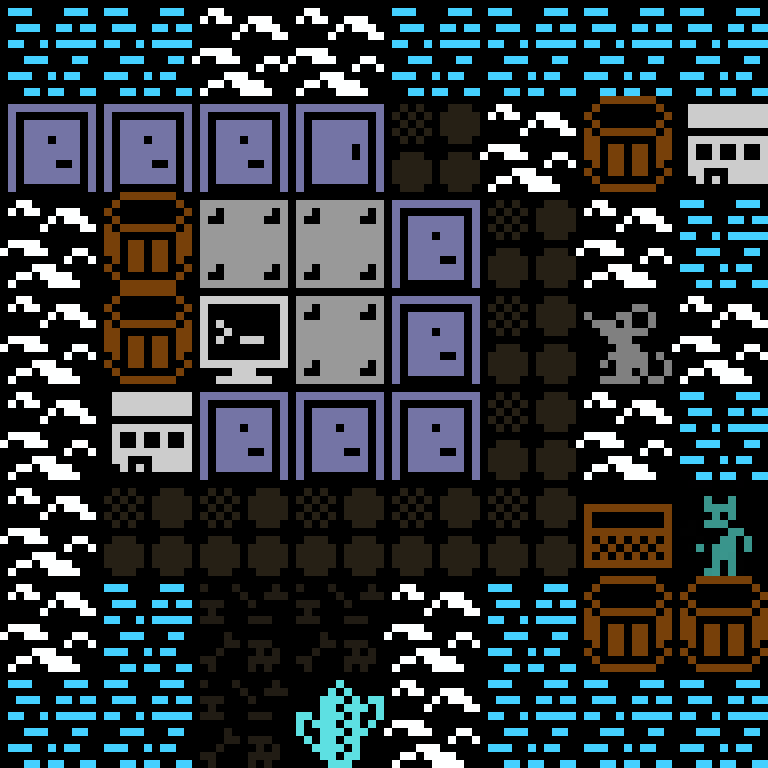

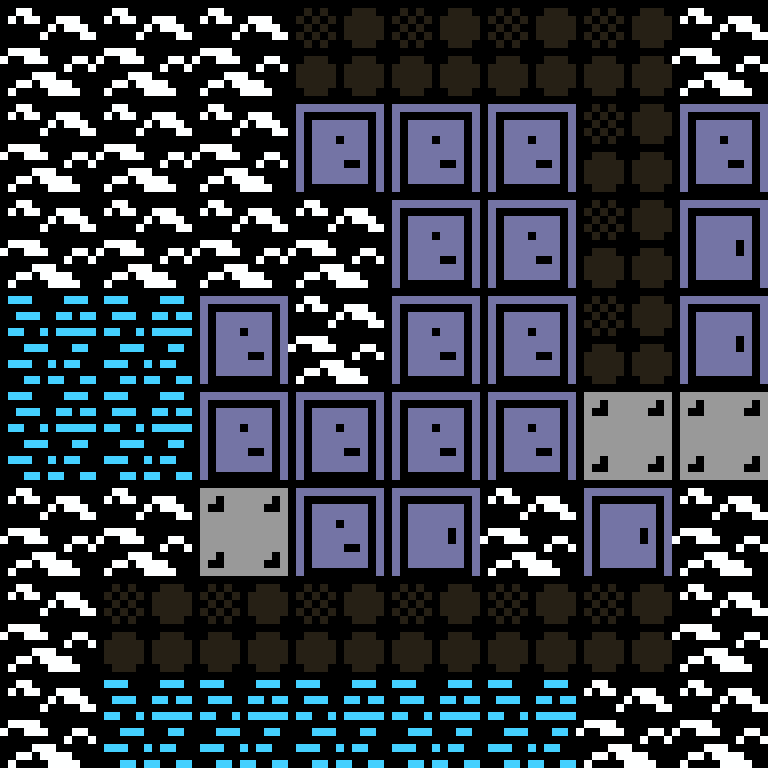

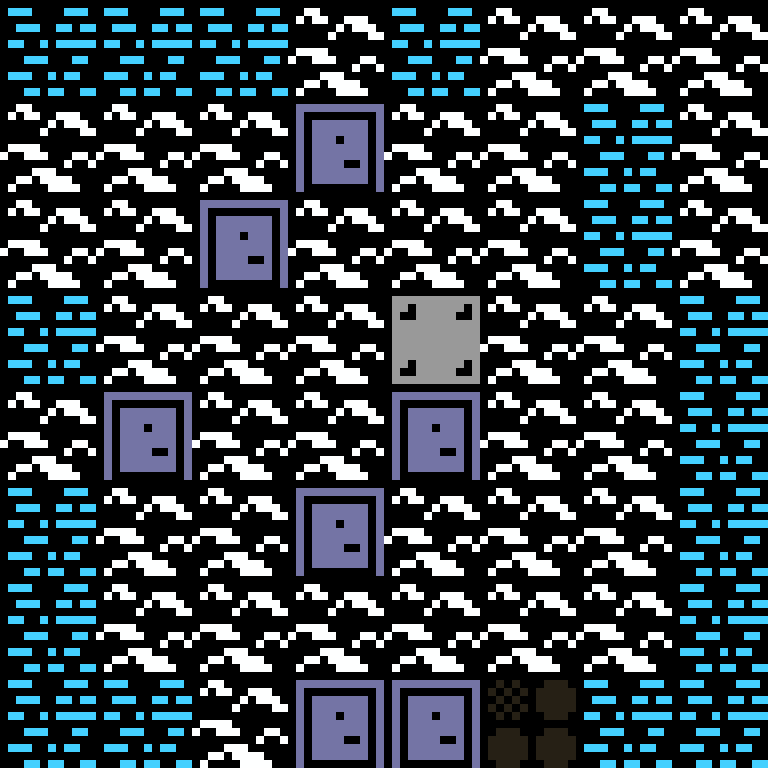

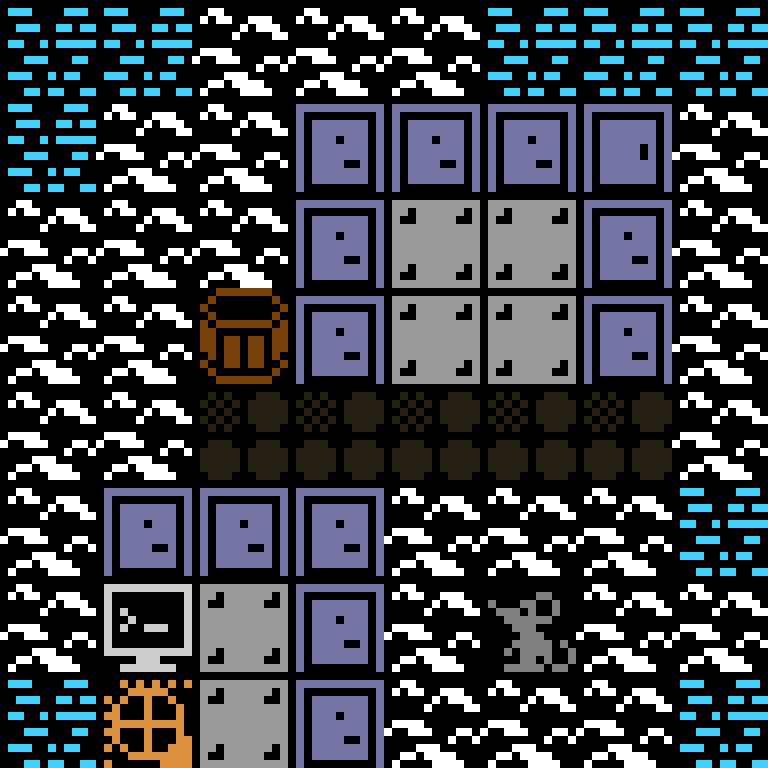

routes-arctic-spiralarctic base, spiral order, 8 by 8 cells · 34 of 38

next ›

‹ previous

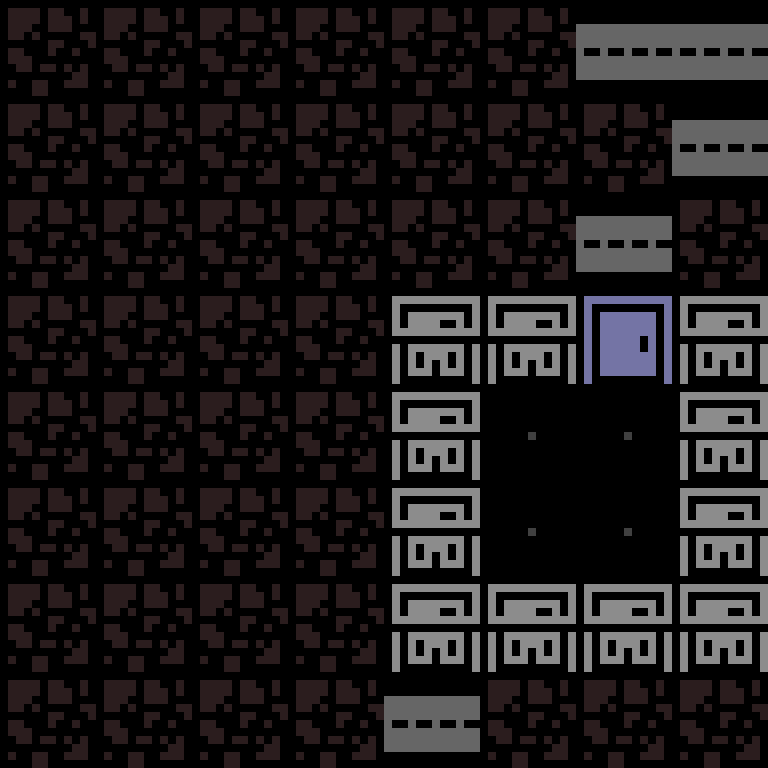

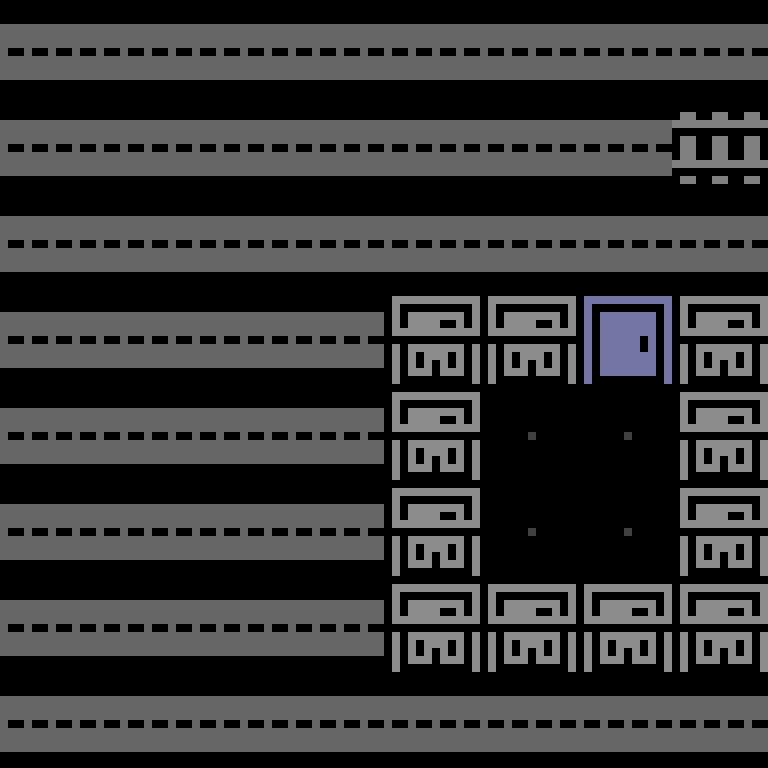

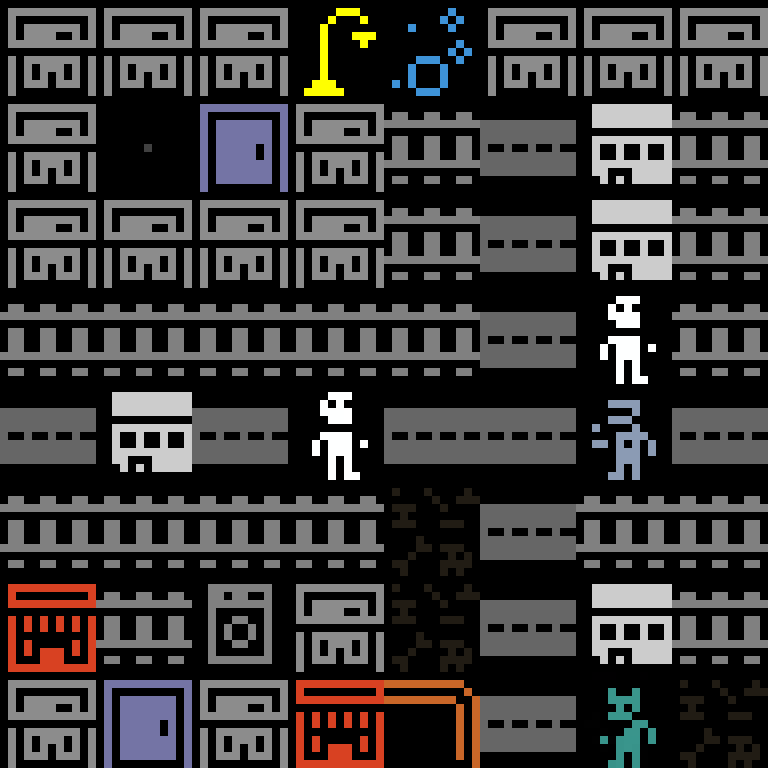

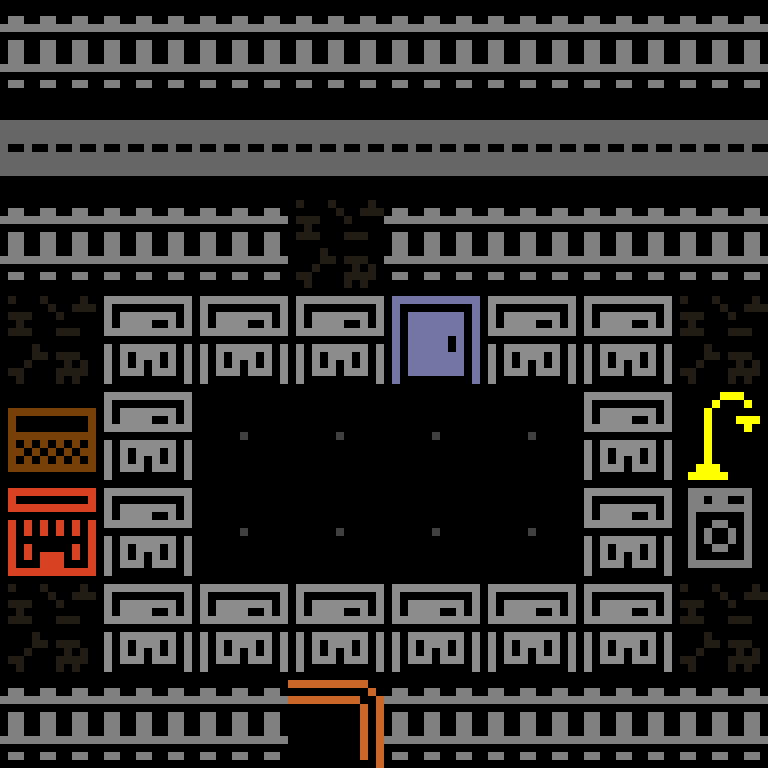

structures-cyberpunk-branchingcyberpunk block, branching order, 8 by 8 cells · 35 of 38

next ›

‹ previous

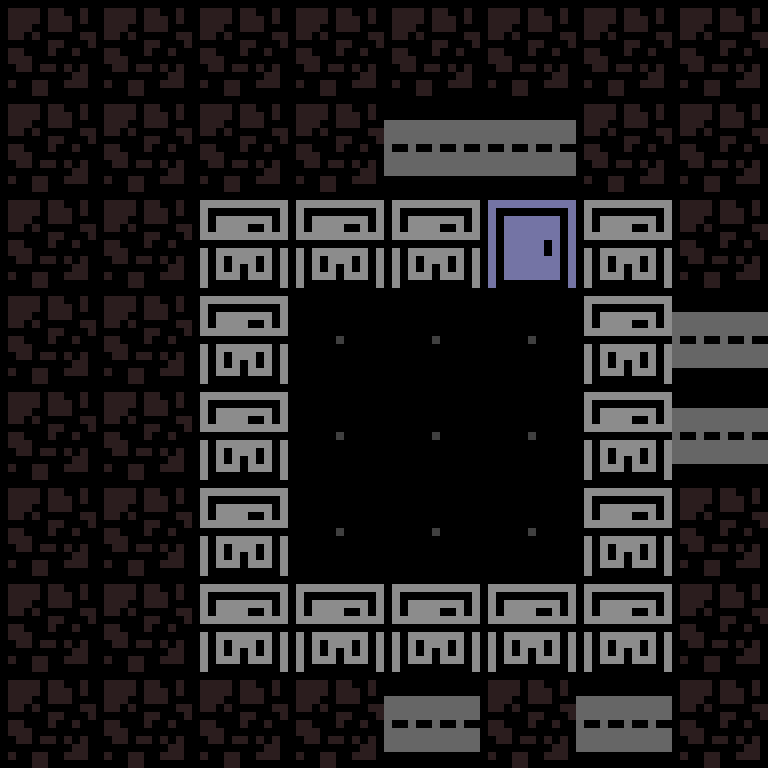

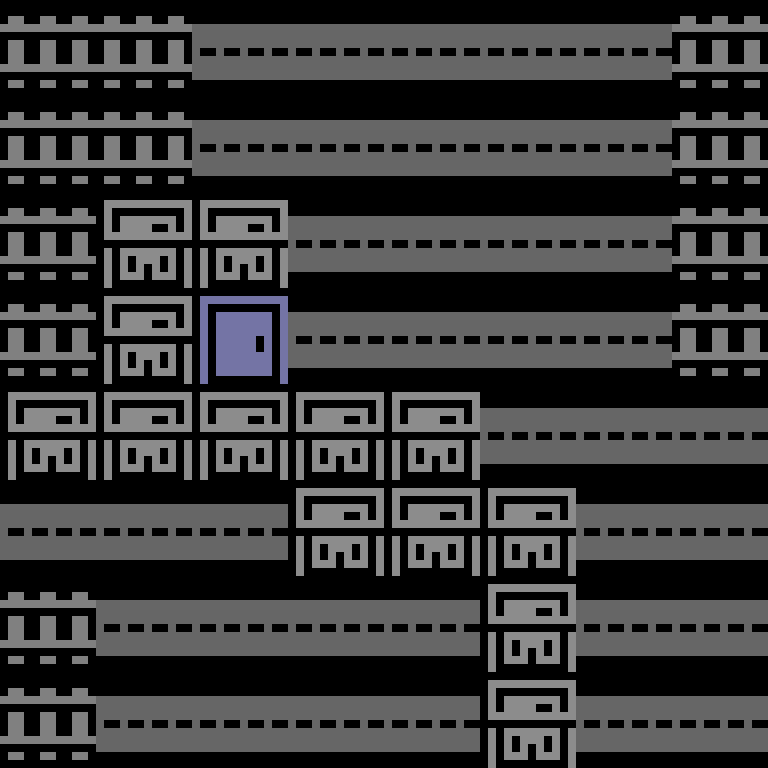

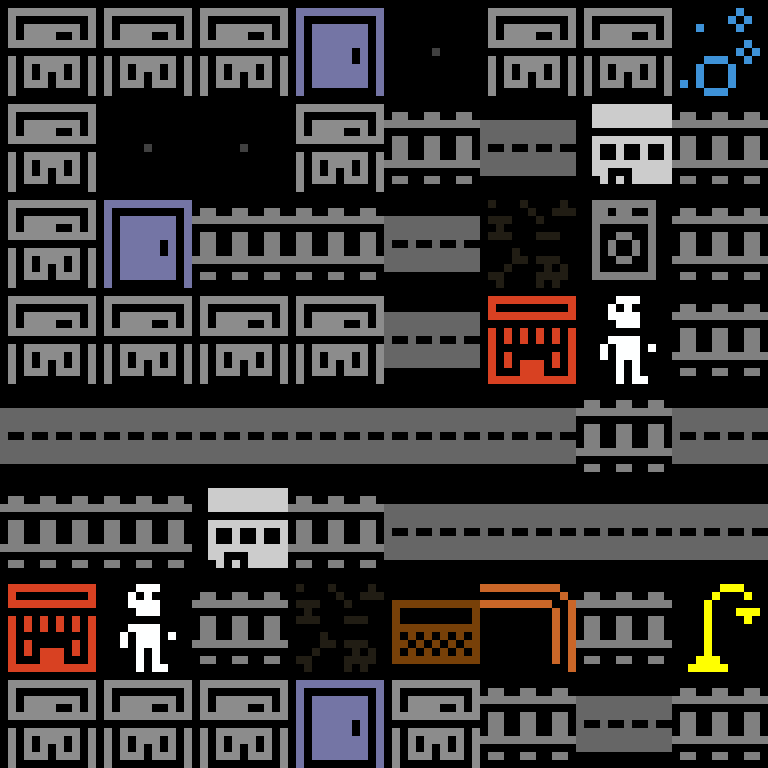

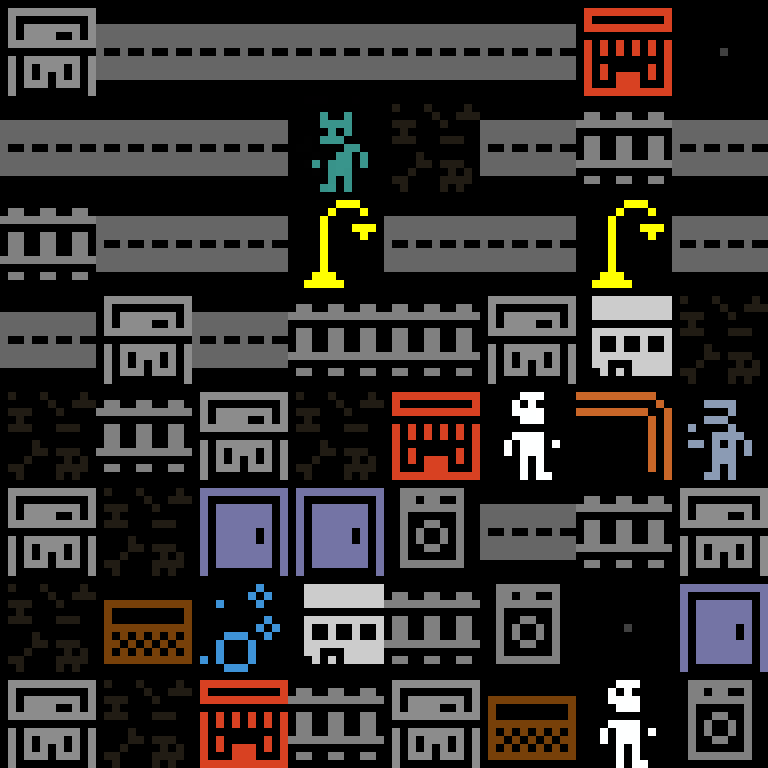

coherence-cyberpunk-clusteredcyberpunk block, clustered order, 8 by 8 cells · 36 of 38

next ›

‹ previous

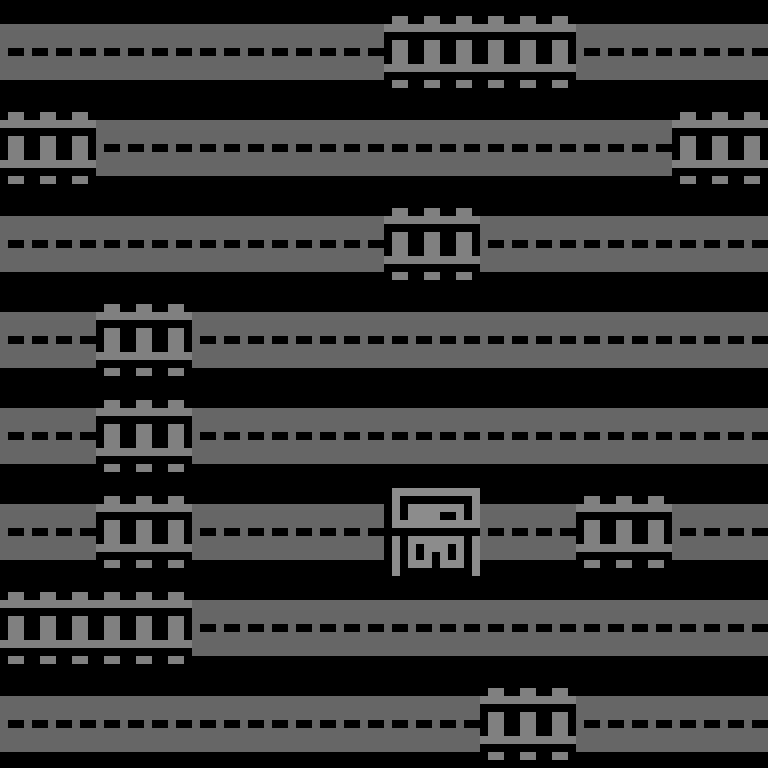

routes-cyberpunk-frontiercyberpunk block, frontier order, 8 by 8 cells · 37 of 38

next ›

‹ previous

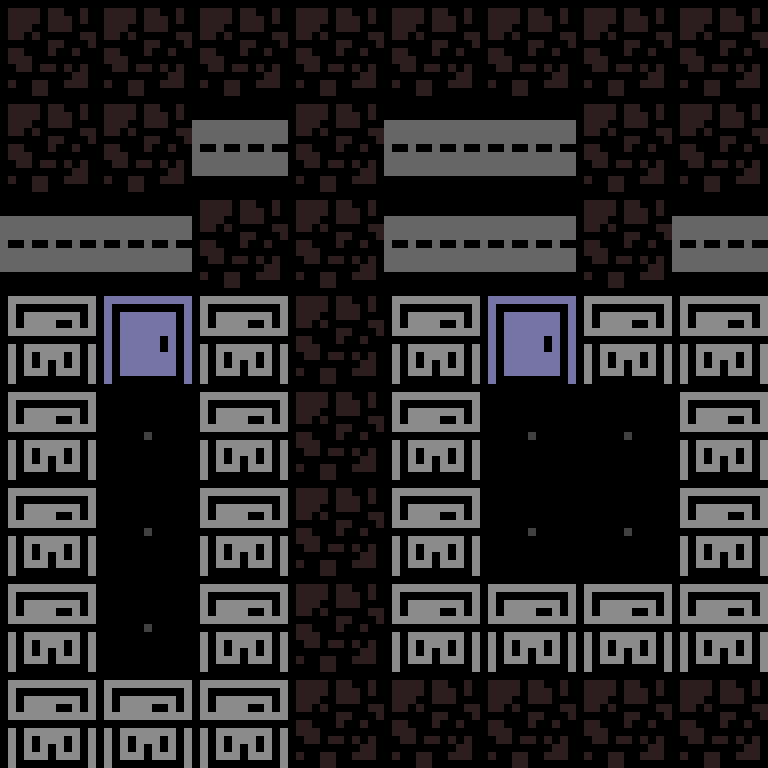

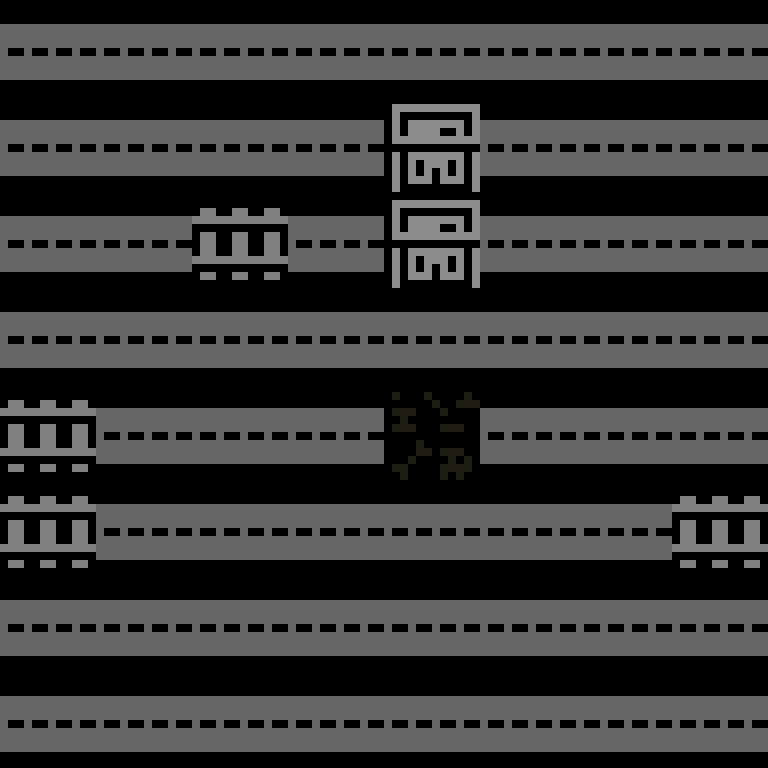

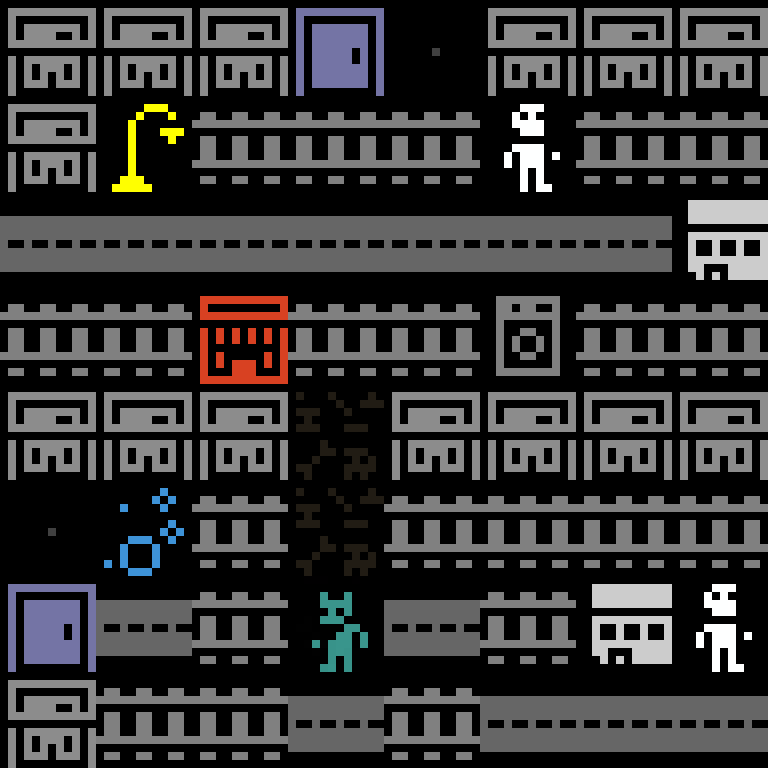

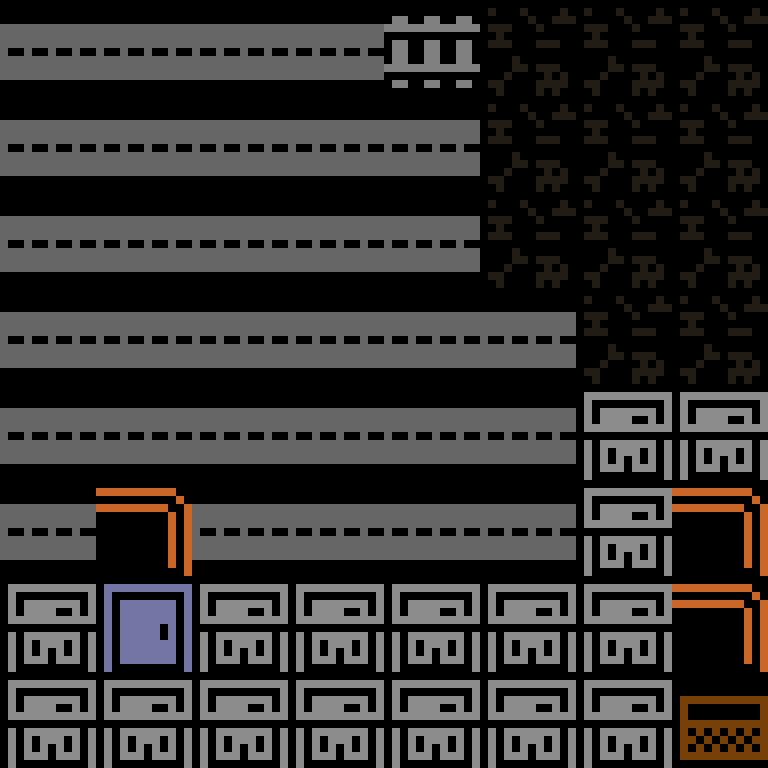

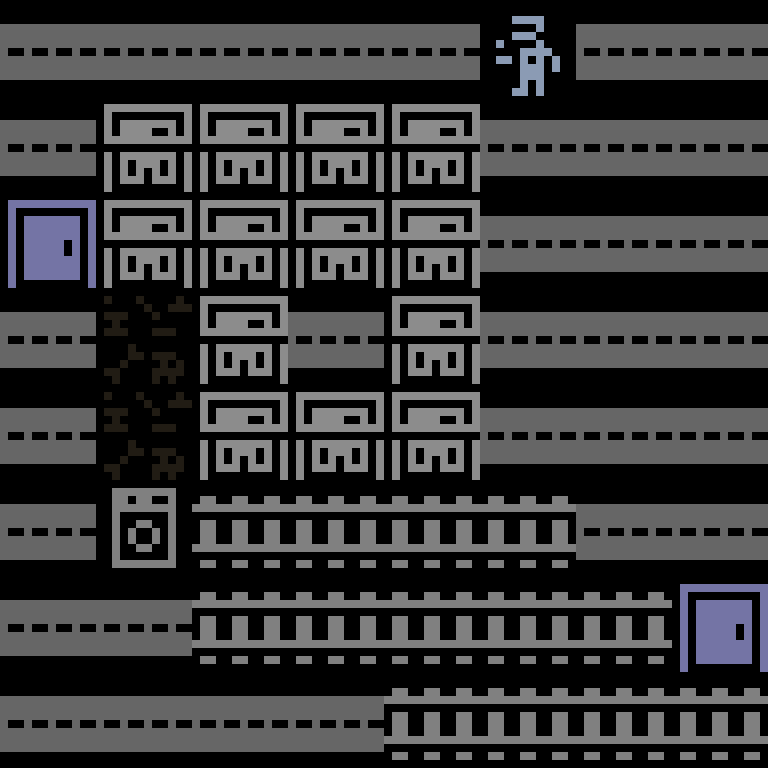

paths-cyberpunk-spiralcyberpunk block, spiral order, 8 by 8 cells · 38 of 38

next ›

Version and change	LLM	Batched
v1 · baseline The starting point: Jev sees only the neighbouring tiles, so each map comes out almost all one tile. The judge gives 0.09. LLM and batched, with v1’s code v1-llm · LLM. Claude Sonnet 5 draws the whole map, with only what version 1 gave Jev: the vocabulary and four sentences of rules. There are no target shares and no plan. The judge gives 0.68, against 0.09 for cell by cell. Many more types are on the map (coverage 0.83 against 0.15), and 42% of the maps have a closed room, with no plan in the prompt. v1-batch · batched. Version 1's own questions, sent together. The 38 maps took 86 requests: every cell is offered every type, so an 8 by 8 map needs two requests. The judge gives 0.20, against 0.09. Version 1 failed because each cell copied its neighbours. In a batch, there are no neighbours to copy.
v2 · confetti Jev now also gets a balance sheet: how much of each tile type the map has, against its target. More types appear (coverage, the share of types that reach the map, goes from 0.15 to 0.44), but as scattered single tiles.	not run	not run
v3 · floods Jev now gets hints such as “a wall line reaches this cell, continue it”. It follows them too far: one 8 by 8 station is 58 of its 64 cells corridor.	not run	not run
v4 · lines Code now checks each hint before it is sent. Walls form lines and closed shapes, but only about a quarter of the doors stand in a wall (0.26). LLM and batched, with v4’s code v4-llm · LLM. Now with the target shares, the lines and the patches, but still no plan. The judge gives 0.68, against 0.48 for cell by cell. Every specification is within 0.05 of v1-llm: the balance sheet and the lines taught the LLM almost nothing new. v4-batch · batched. Version 4's fix, a line that continues, needs the cells decided before, and a batch has none. Paths score 0.55 against 0.80, and only 5 of the 38 maps have a landmark. The judge gives 0.32, against 0.48.
v5 · the model reads the sketch, a little Jev now sees the whole map, one letter per cell. It helps only a little, because one cell cannot see where a rectangle should end.	not run	not run
v6 · less noise The random pick from Jev’s probabilities now drops options below a third of the best one. Ground forms patches, but rare tiles almost disappear (coverage 0.76 to 0.55).	not run	not run
v7 · the local rules hold, the rooms do not Typed rules, such as “never next to X”, now remove forbidden tiles before Jev answers. The rules hold (0.99), but rooms still do not form. LLM and batched, with v7’s code v7-llm · LLM. The typed rules are now written in the prompt. They hold at 0.80, against 0.99 in cell by cell, where code offers only the types that the rules allow. The judge gives 0.68, against 0.48. v7-batch · batched. Code still applies the typed rules, so they hold at 0.94. But the neighbours they check are not there yet, and no door stands in a wall (0.00). The judge gives 0.25, against 0.48.
v8 · rooms The blueprint: before Jev starts, code places each building as a rectangle with a door. Doors in walls go from 0.15 to 0.96. The price: fewer tile types (coverage 0.51). LLM and batched, with v8’s code v8-llm · LLM. The blueprint goes into the prompt, room by room. This is the version that moved the LLM most: “a place reads as a place” rises from 0.62 to 0.78, and 74% of the maps have a closed room, against 34% at v7. The judge gives 0.65, the same as cell by cell. v8-batch · batched. The blueprint is code, applied to each cell, so a batch gets all of it. Each cell is offered only the types of its part, so all 64 questions now fit in one request. Structures go from 0.64 to 0.98, and every door is in a wall. The judge gives 0.57, against 0.65.
v9 · the world remembers what it lacks Jev now sees what the map still lacks, a landmark stops being offered once it is placed, and a route is suggested outside each door. Every landmark appears once (1.00).	not run	not run

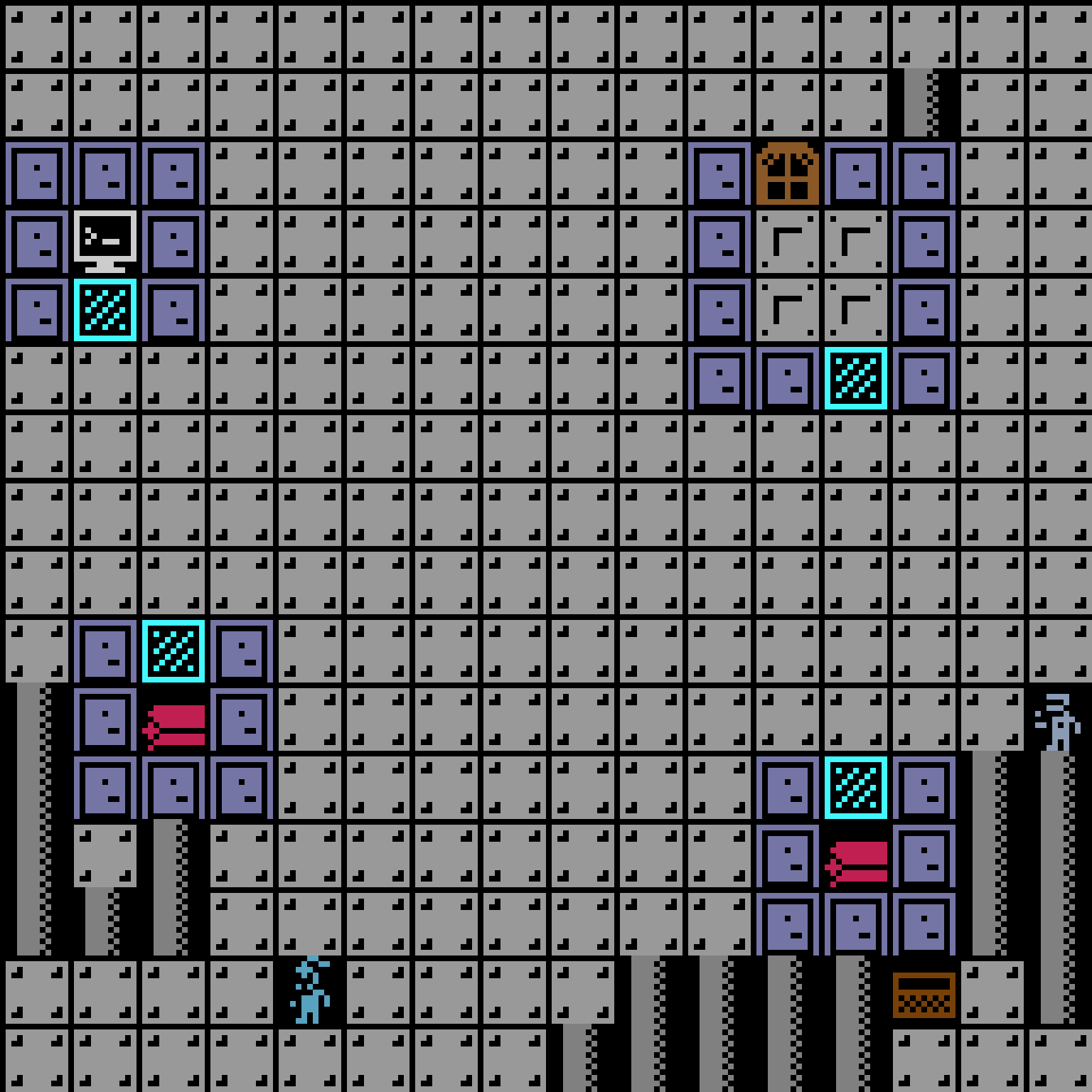

v10 · the cap that could not fire A ground tile that covers twice its target is no longer offered. This changed nothing: in the station, the flooding tile was the corridor, which was also the only floor.	not run	not run

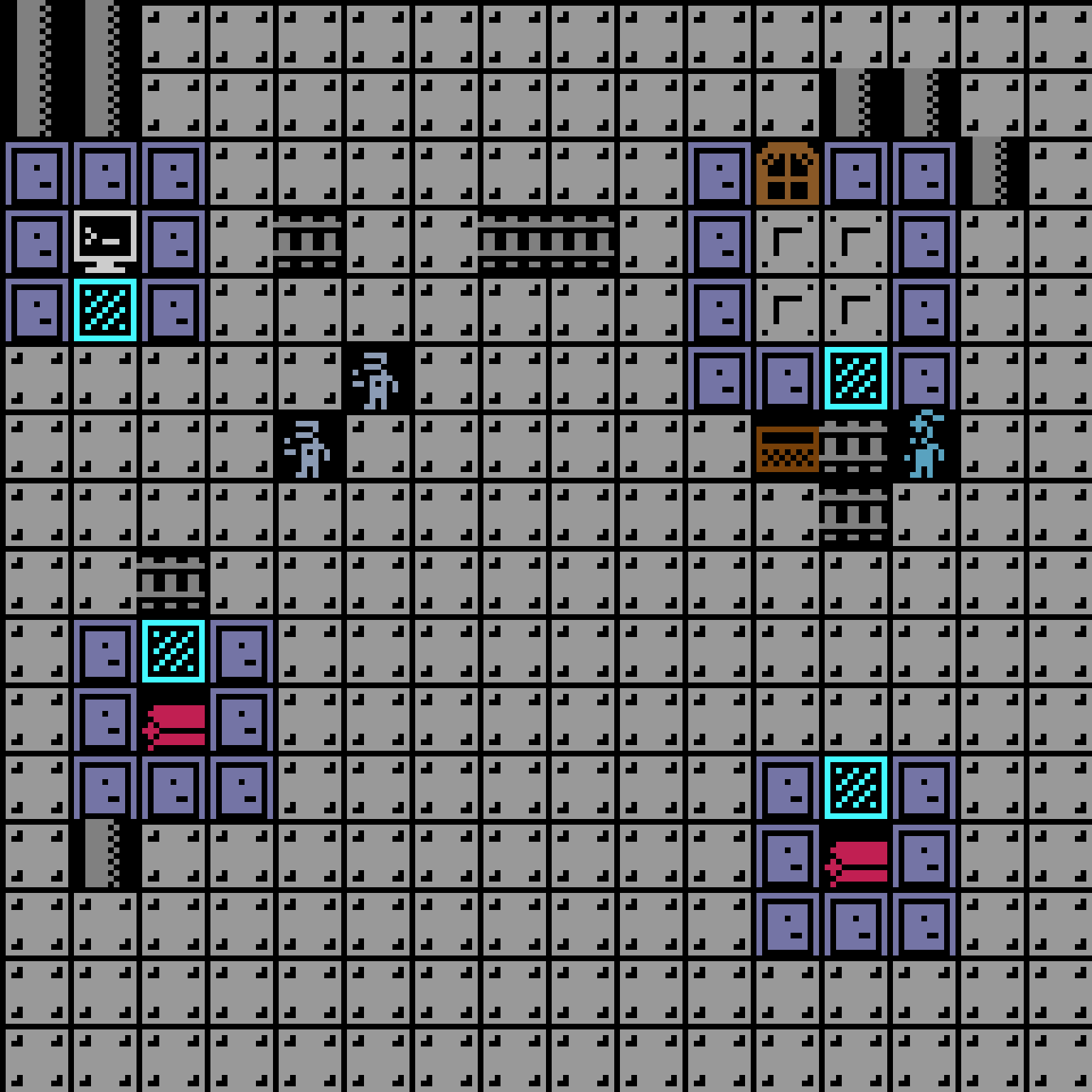

v11 · a floor that is not a road The station gets an open deck and the city a plaza, so corridors and streets become lines. The corridors are now short stubs, which is the next problem. LLM and batched, with v11’s code v11-llm · LLM. The same seeds, vocabularies and blueprint, drawn by Claude Sonnet 5 in one answer per map. A 16 by 16 map takes 6 seconds instead of 90, and the whole run costs the same. But only 47% of the maps have a closed room, against 92%, and the typed rules hold at 0.76 against 0.99. Its own section has the details. v11-batch · batched. Version 11’s questions, unchanged, sent together, in one request per map where it fits. That is 61 times fewer requests, at a third of the price. But each cell is decided without knowing what the other cells in the same request got: 181 cells sit next to a tile that their “never next to” rule forbids, and each of those broken pairs is inside one request, and one mansion has 39 staircases where the rules ask for one. Its own section has the details.
